Connect Venting and Insert Appliance
IMPORTANT: This appliance’s venting system require room
air to be used in the combustion process.
1. Rough-in one 3” diameter vent liner into the existing
chimney system from the roof. Be careful not to tear or
damage the liner in the process. Leave plenty of liner
at the bottom to facilitate the connection of the liner to
the vent slider. It is best to leave the top termination
until later.
2. Release the two screws retaining the vent slider to the
front of the fi rebox. Remove the slider from the fi rebox
by sliding it towards the back of the fi rebox.
3. Secure the liner to the collar on the vent slider using the
hose clamp (included) and 2 tapping screws per liner.
4. Slide the fi rebox onto the vent slider in the cavity tak-
ing care not to damage the liner. Make sure that the
vent slider is pulled all the way forward. Secure the
vent slider to the front of the fi rebox with two screws
removed earlier.
5. From the roof, pull the liner and fi t the fl ashing.
6. Fit the terminal cap. Secure with screws.
7. Seal the terminal and fl ashing from water penetration
as required.

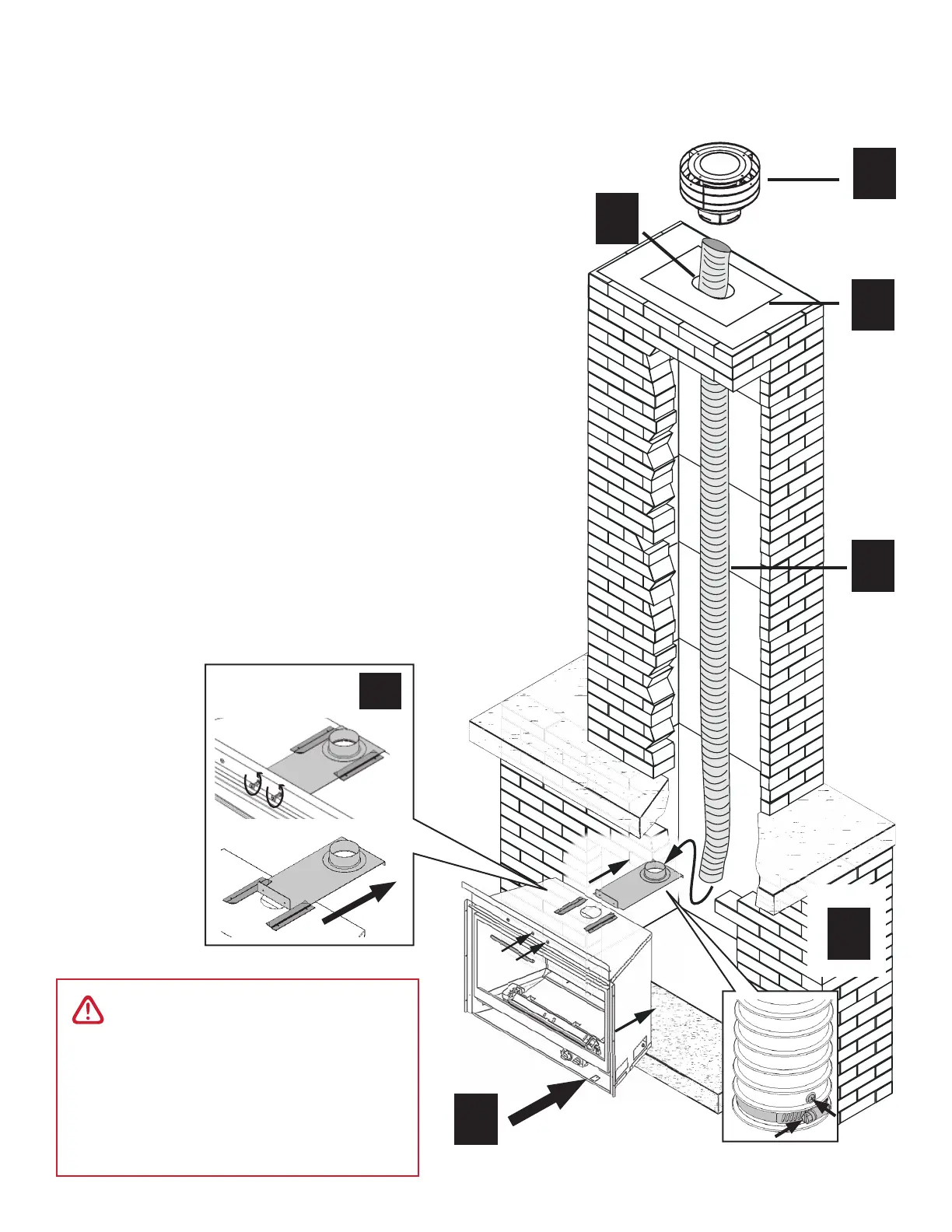

4
1
3
5
6
2
7
Installation
Appliance and Venting
WARNING
Failure to position the parts in
accordance with these diagrams
or failure to use only parts
specifically approved with this
appliance may result in property
damage or personal injury.
