Valor G3 - Wiring Diagram

32

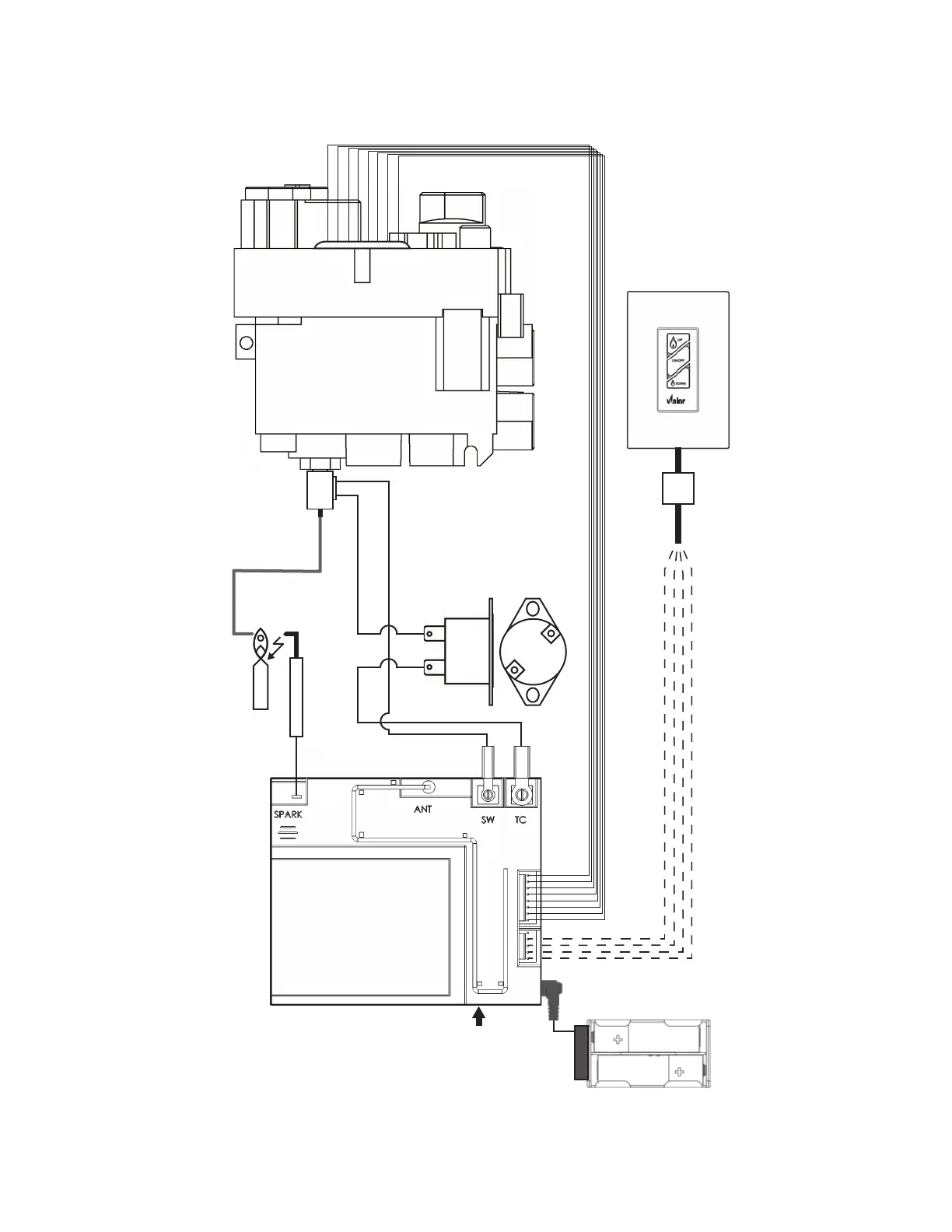

Wiring Diagram
GV60 Wiring Diagram
Battery Holder
RESET Button
PANEL
redyellow
Receiver
red
Interruptor
Block
Vent Safety
Switch
IGNITOR
Connector
Optional
1265WSK
Wall Switch Kit
Combination Control Valve
Antenna
Main Valve Knob
MAN Knob
PILOT
Thermocouple
8-Wire Cable (bundled)
