19
Installation
Fuel Beds
Traditional Log Kit 739TLK
Material required

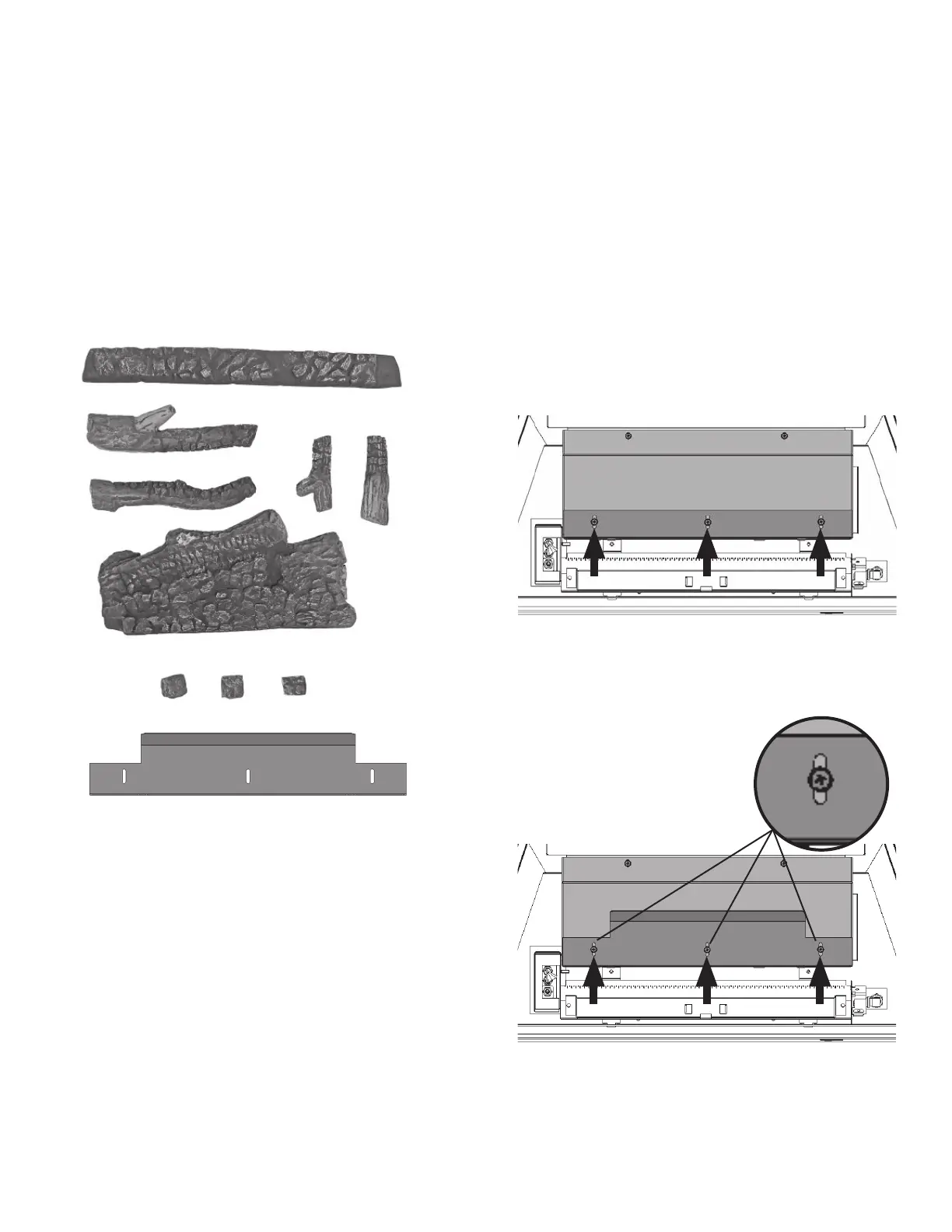

• Traditional Log Kit, which contains:
• 6 logs
• 3 embers
• 1 support bracket - log, supplied with logs
or fi replace
Installation
Carefully unpack the kit. Note each log has its own
number stamped on the bottom. Some logs have pegs
to help you place them on the burner platform, or other
logs.
Replace Fuel Bed’s Support Bracket
The fireplace is supplied with the fuel bed support
and bracket shown below. For this log set, the support
bracket must be replaced by the bracket included loose
either with the log set or the fireplace.
1. Remove the factory-installed fuel bed’s support
bracket (3 screws).
2. Install the support bracket supplied loose with the
log set or fi replace, securing it re-using the same
screws. Ensure the screws are centered in the
bracket’s slots as shown.
G30
G31
G32
G33 G34
Base Panel
Embers
