20
Installation
Fuel Beds
Logs

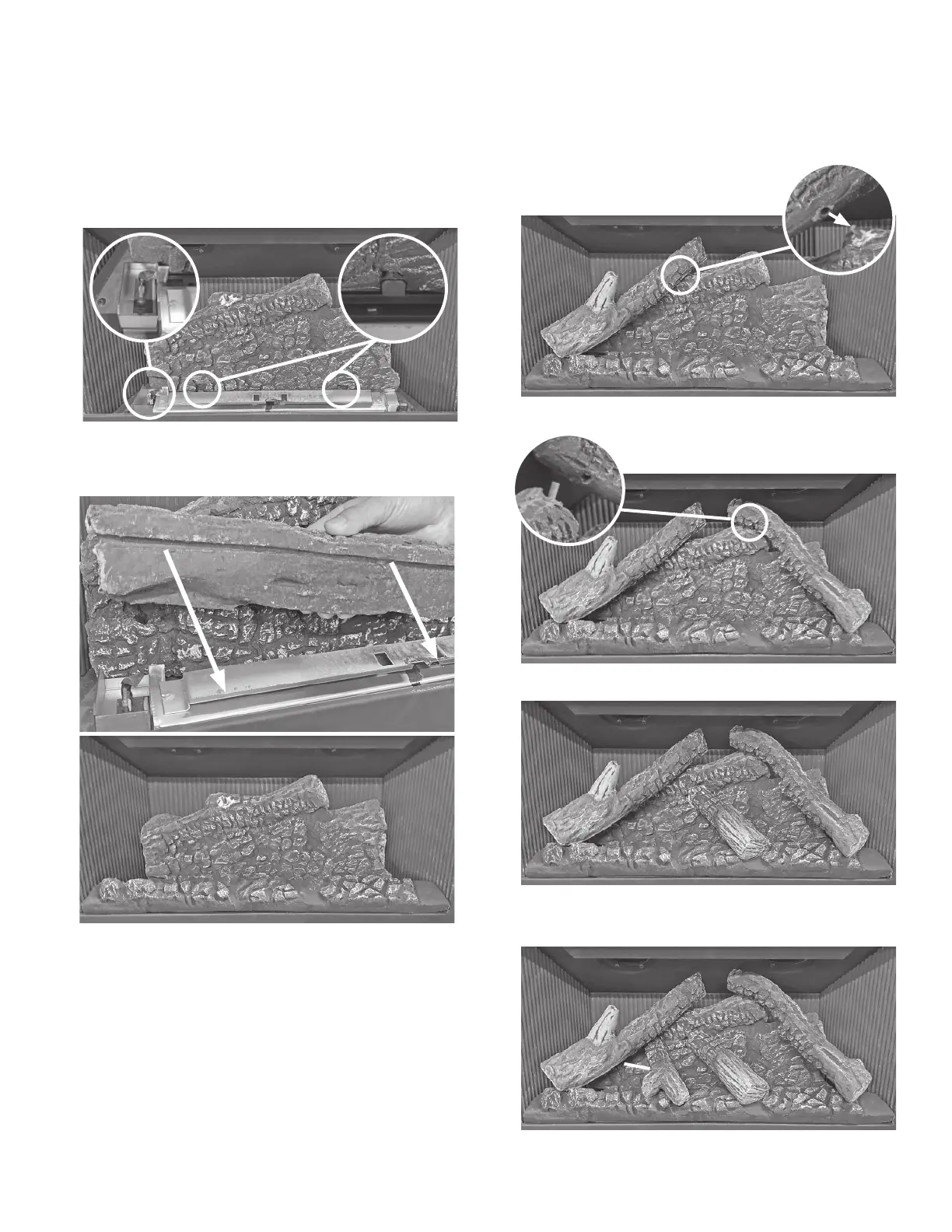

1. Place log G30 on the fuel bed support; slide it left
against the pilot shield. The front tabs of the sup-
port should be in the notches of the log.
2. Place the base panel log on top of the burner,
ensuring the vertical fl ange of the burner is inserted
in the groove under the log as indicated.
G30
Base panel
3. Place log G31 from pin on G30 to base panel.
4. Place log G32 from pin on G30 to base panel.
5. Place log G34 from base panel to rest against G30.
6. Place log G33 from base panel to rest against G30,
underneath G31.
G31
G30
G32
G30
G34
G30
G33
G30
G31
