Valor G3 User Manual

8
28-5/8” (727 mm)
19-1/2” (495 mm)
7-7/8” - 9-7/8“
(200 - 251 mm)
Varies with
outer trim options
20”
(508 mm)
Gas inlet Gas connection
Optional Outer Trim or
Surround sold separately
See table below
for minimum
cavity dimensions

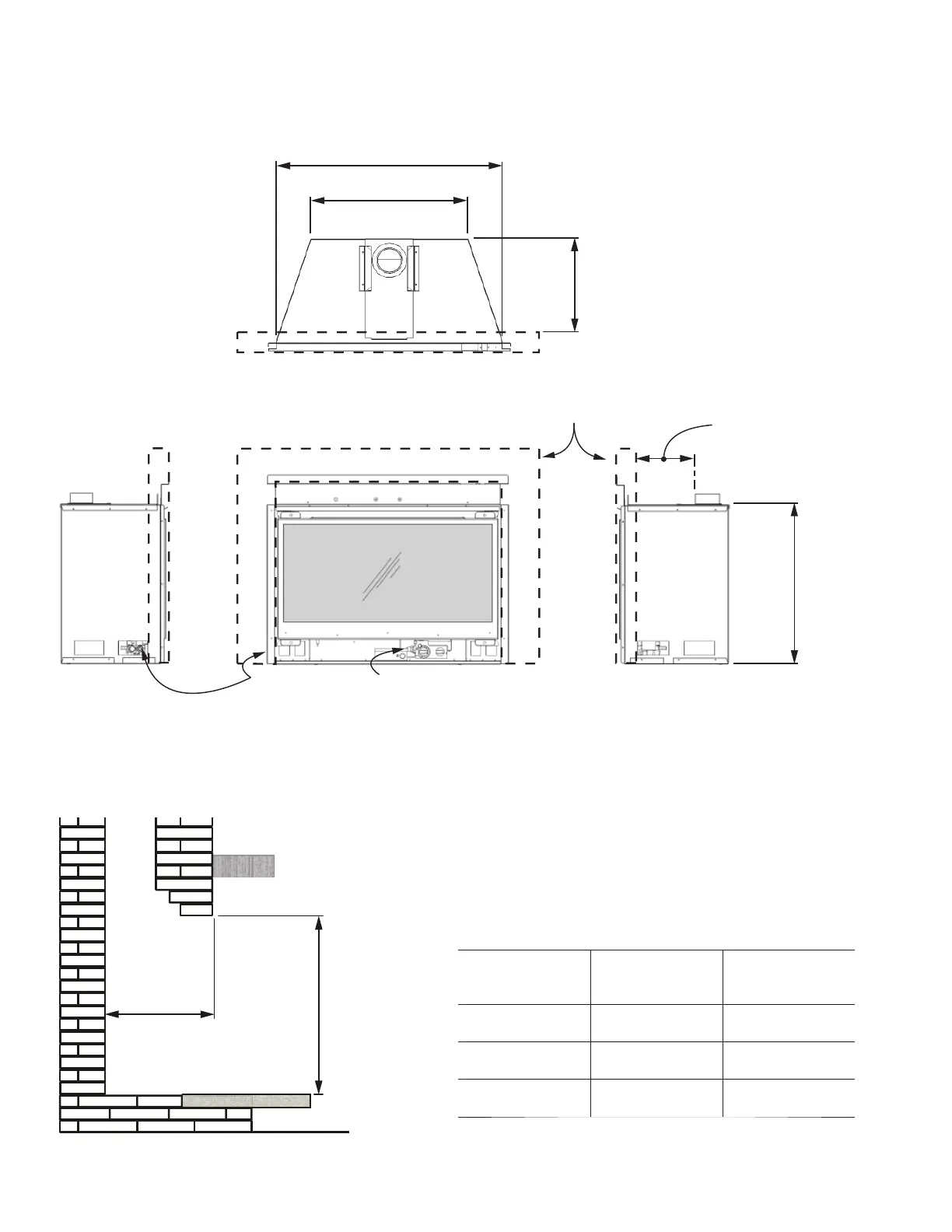

Dimensions
Top View
Dimensions
Front ViewLeft Side View Right Side View
Minimum Cavity Dimensions
Check that masonry step does not interfere with install
dimensions or vent pipe.
If mantel is combustible, see the following section for
allowable clearances.
X
Y
Cavity
Outer Trims
746CTK, 748CTK,
756ST, 767STB,
757ST, 715CV
747DTK, 753OTK
Minimum Depth (X)
12-7/8”
[327 mm]
12-1/4”
[312 mm]
Minimum Height (Y)
20-1/2”
[521 mm]
20-1/2”
[521 mm]
Minimum Width
28”
[711 mm]
28”
[711 mm]

Valor G3 Specifications

General

Brand	Valor
Model	G3
Category	Indoor Fireplace
Language	English
