Notch in rear log
Pin in front right log

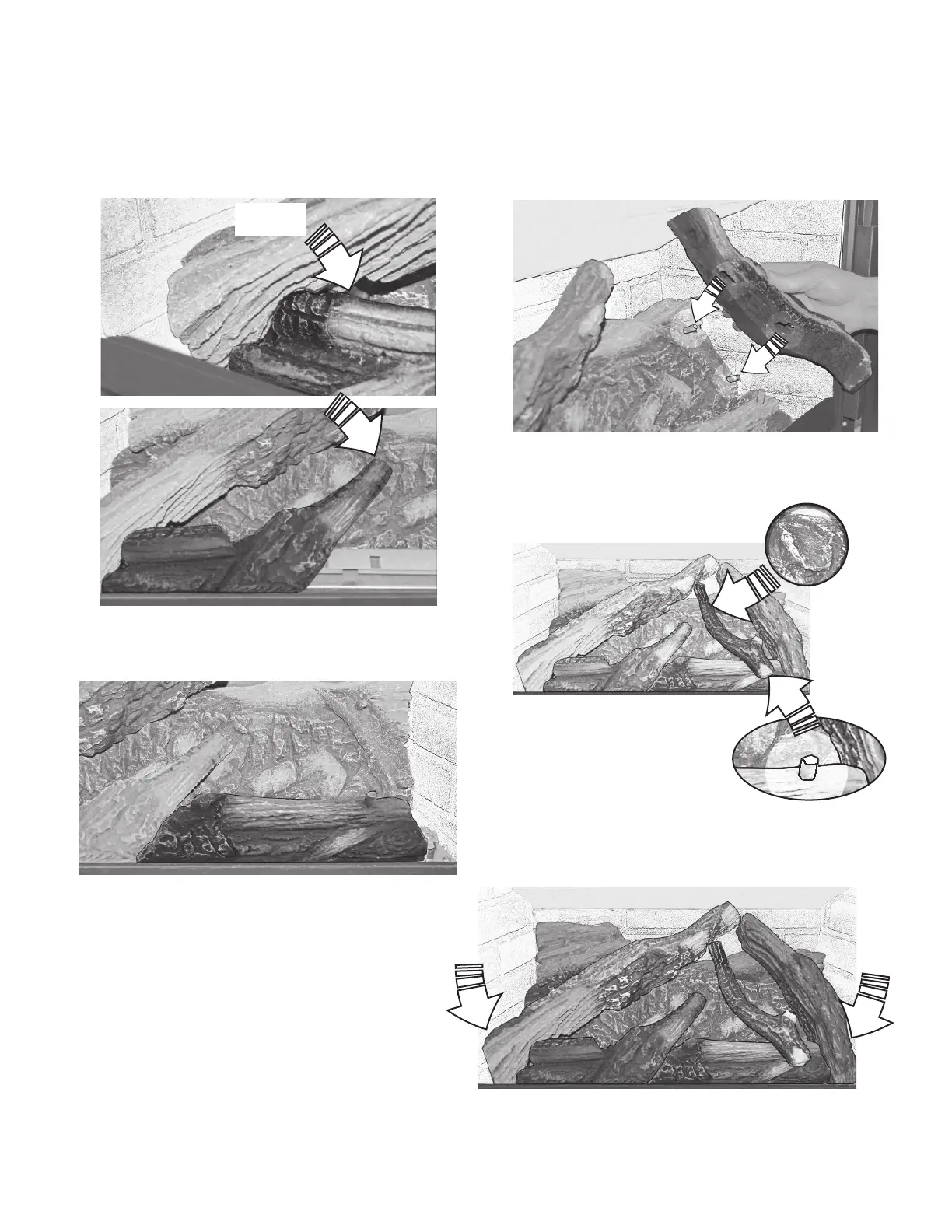

5. Locate the top right log on the two pins on the right
side of the rear log. Ensure a tight fi t against the fl at
area around the pins in the rear log.
6. Place the lower end of the center right log onto the
pin on the front right log. Rest the narrow end in the
notch into the rear log.
7. Pour some ceramic loose coals on each side of the
logs to hide the sheet metal work. Do NOT put any
coal into the pilot area.
3. Place the front left log on the burner. Slide it to the
left against the top left log. The narrow end should
rest in the notch in the rear log.
4. Place the front right log on the burner and slide it to
the left against the front left log.
Pilot area
27
Installation
Fuel Beds
