Thermostat Wiring Options

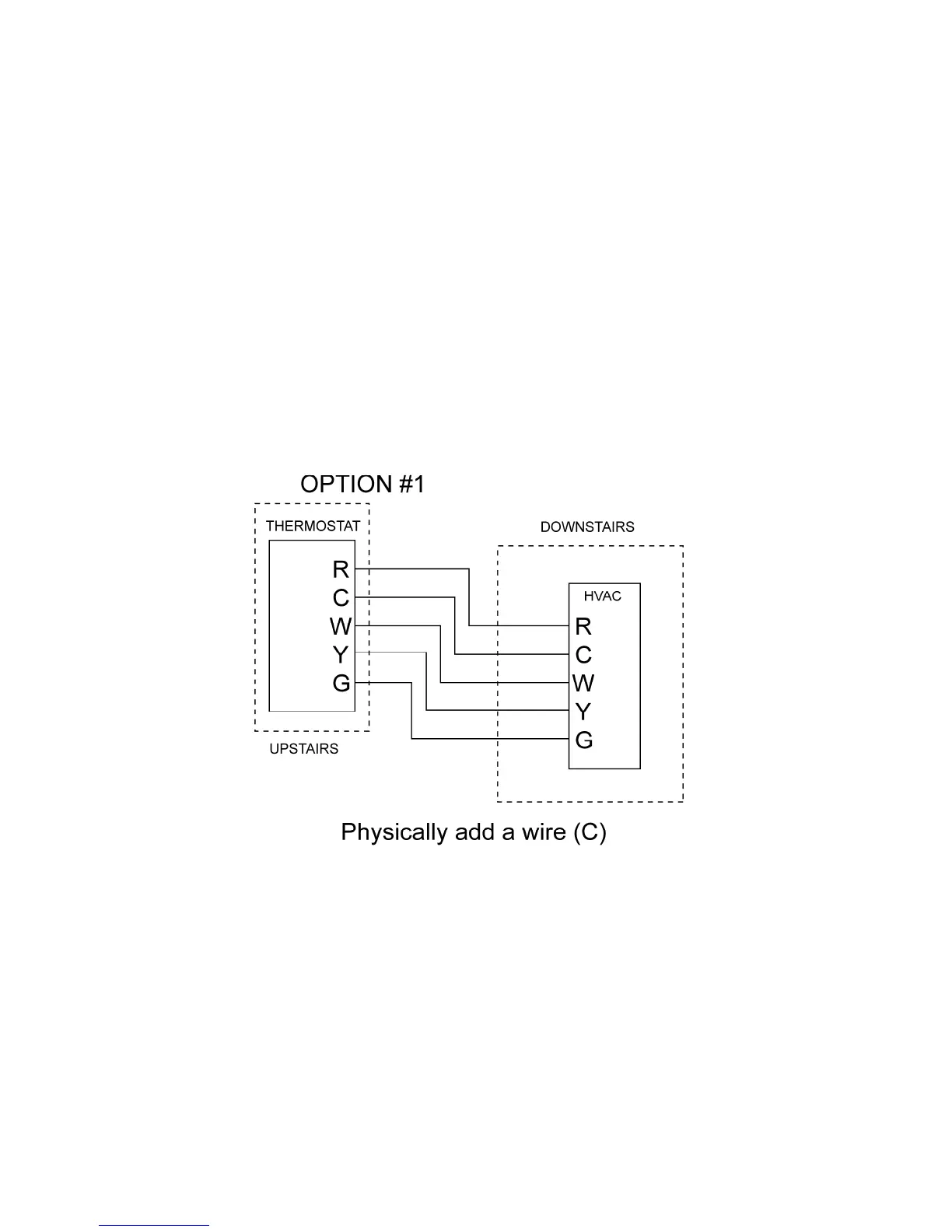

Option 1: Standard wiring configuration
Wherever possible, Vantage Controls recommends wiring the thermostat to the HVAC equipment
with a dedicated wire for each connection. Where no ground (common) wire has been included, a
new ground wire can be pulled to the thermostat mounting to provide power to the electronic
thermostat.
