Varian archon - 1.3 Specifications; 1.4 Component Description; 1.4.1 Front Panel

Introduction
03-914642-00:6
1-3
1.3 Specifications
Tray Capacity:
51 sample vials. 40 mL EPA VOC or SoilVials
Sample Volume:
0-25 mL
Flush Volume:
0-25 mL
Indoor Use
Altitude:
Up to 2000 m
Operating Temperature:
15  C to 35  C; Storage Temperature 5  C to 85  C
Relative Humidity:
10 to 90%
Line Voltage:
115 Vac  15%, 230 Vac  15%, 50/60 Hz  3 Hz
Fuse:
6A, 250 Vac, SB (115V); 3.15A, 250 Vac, T-Type (230V)
Installation Category:
II
Pollution Degree:
2
Heat Dissipation:
2500 BTU/Hr. Max. Worst Case
Weight:
Approximately 80 lbs; 36.5 Kilograms
Size:
21.5W x 17H x 20D inches
54.6W x 43.2H x 53.3D centimeters
Gas Requirements:
Helium 60-90 PSI 99.999% GC/MS grade purity
1.4 Component Description
The Archon consists of a base unit with a 51 position sample tray. The sample
tray is removable from the front. A description of components follows.
1.4.1
Front Panel

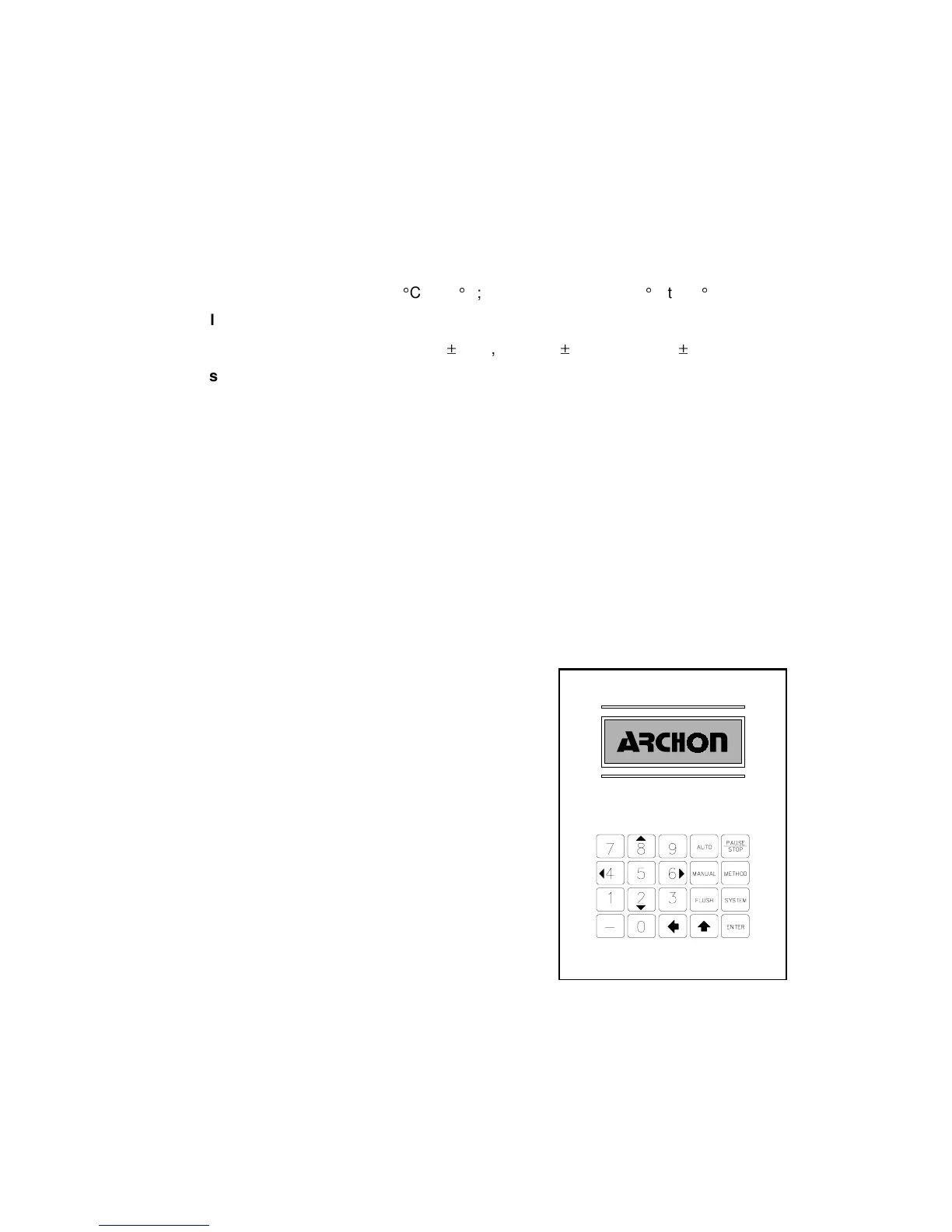

Keypad & Screen:
Keypad with LCD
screen. The keypad allows for
entering or editing all information. The
LCD screen displays the information.
Figure 1-1
