Varian archon - 8.1 Archon to Tekmar LSC-2000 and 3000, P;N DY-505872-00

8-2
8.1 Archon to Tekmar LSC-2000 and 3000 , P/N DY-505872-00
Red
Black
Pin Outs
Remote I/O
Archon Color Tekmar Function Color
IN OUT
Green 24 3 GC Ready Green #6 Spade Term.
Desorb
Drain
15
2
Brown 23 4 GC Ready White #6 Spade Term.
Red 1 21 GC Start Red #6 Spade Term.
Start
Purge
5
18
White 2 22 GC Start Black #6 Spade Term.
Blue 16 21 Start Red
P&T
Ready
14
1
Black 15 22 Start Black
Note:
The DIP switch UO12 settings in the LSC 2000 must be as follows; 3 OPEN and 4
CLOSED. All others CLOSED. DIP switch UO13 all OPEN.
For a 3000 installation, the Tekmar GC Port must be specified.
1. At the Standby Screen, press the key labeled “CONF.”
2. At the Configuration Screen, press A (GC I/O Port). The GC Port Screen appears.
3. Choose Standard. GCType =63. Press ENTER to save the selection.
4. Turn the instrument off.
The Tekmar 3000 must be programmed to give a switch closure at purge ready. This switch
closure will initiate the Archon to begin the sample Cycle. Select method 14 to provide correct
polarity settings for the purge ready output. If another method is selected please refer to the
Tekmar manual for additional information.

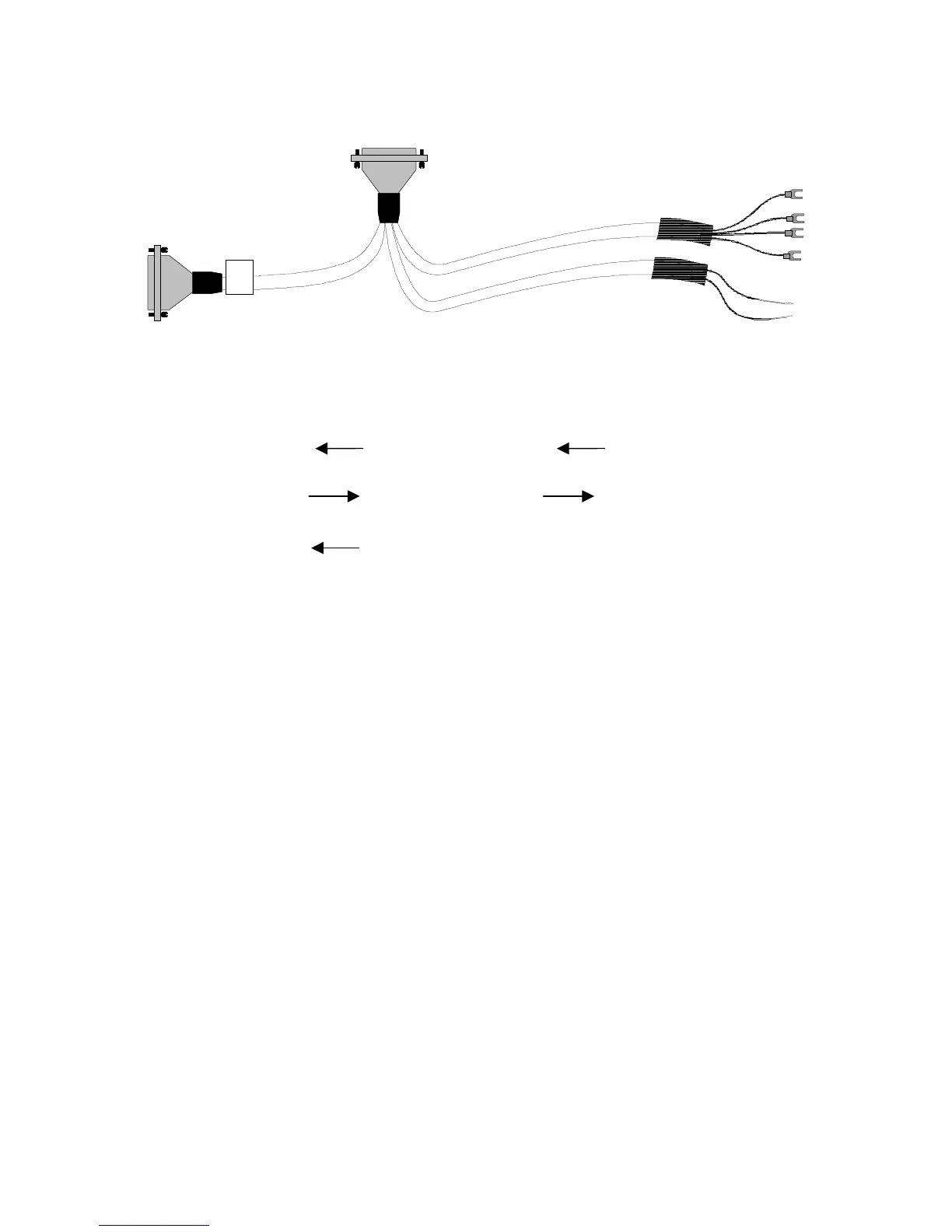

Connect the cable to the Archon and to the purge and trap.
Be certain the locking screws
secure the connector to the chassis.
The spade terminals will attach to the GC and Data
System at their appropriate connections. Refer to your GC and Data System manuals for correct
connector locations.
Female
Male
