Archon to OI 4460 / 4560 with Varian 3400/3600, P/N DY-505870-00
Red
P23
P16
White
Black
Pin Outs
Remote I/O Archon
Color
Relay I/O
OI
Terminal
Function Color
J16-J23
Varian
Motherboard
15
Green 5 Start Purge Red 3
Desorb
Drain
2
Brown 4 Start Purge Black 4
5
Red 7
Start
Purge
18
White 8
6 GC Starat Green 3
7 GC Start White 1
14
Blue 1
P&T
Ready
1
Black 2
5 Start Red
Start White
4 Start Black
Attach the “D” connector of the cable to the Archon.
Be certain the locking screws secure the
connector to the chassis.
Attach connectors P16 and P23 to the Varian GC (J16 and J23 on the Motherboard) and secure
the grounding clamp to the GC chassis.
Attach the individual wires to the Relay I/O terminal at the rear panel of the OI concentrator.
The remaining cable can be used to start the data system.

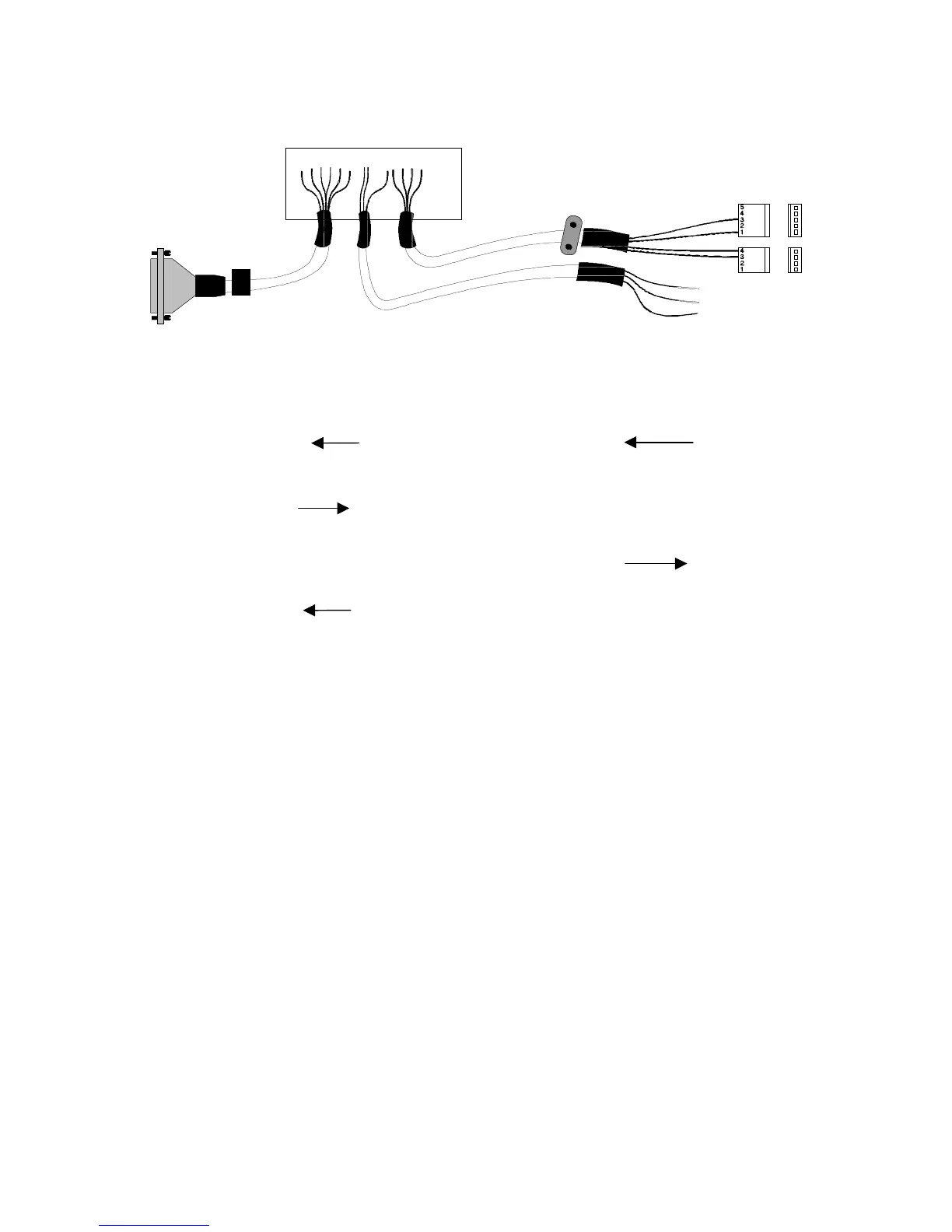

Refer to the above schematic for the correct wiring locations and to your GC and Data System
manuals for correct connector locations.
P16
P23
Female
