INSTALLATION Series
26/119
Edition 2017-11-24 742280ED

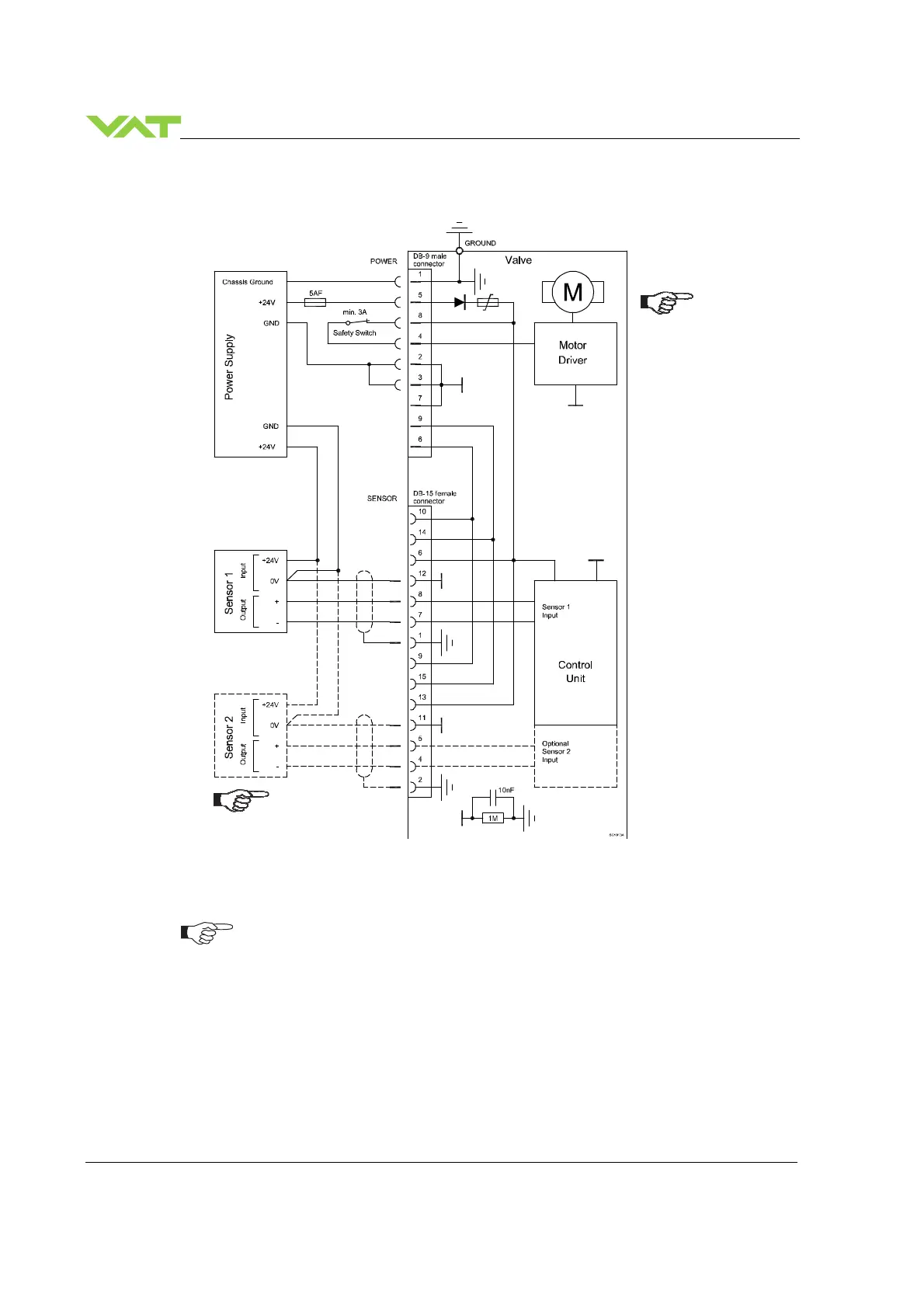

4.5.3.2 Sensor power wiring external
•
Use shielded sensor cable(s). Keep cable as short as possible, but locate it away from noise
sources.
•
Connect Power supply (+24 / GND) at DB–9 male power connector and Sensors
(0V / + / -) at DB–15 female sensor connector exactly as shown in the drawing above!
•
Connector: Use only screws with 4–40 UNC thread for fastening the connectors!
Pins 4 and 8 must be
bridged for operation.
An optional switch
would allow for motor
interlock to prevent
valve from moving.
Low range sensor may be
connected to sensor 1 or
sensor 2 input. Do
configuration accordingly.
