4.2.1 Installation space condition

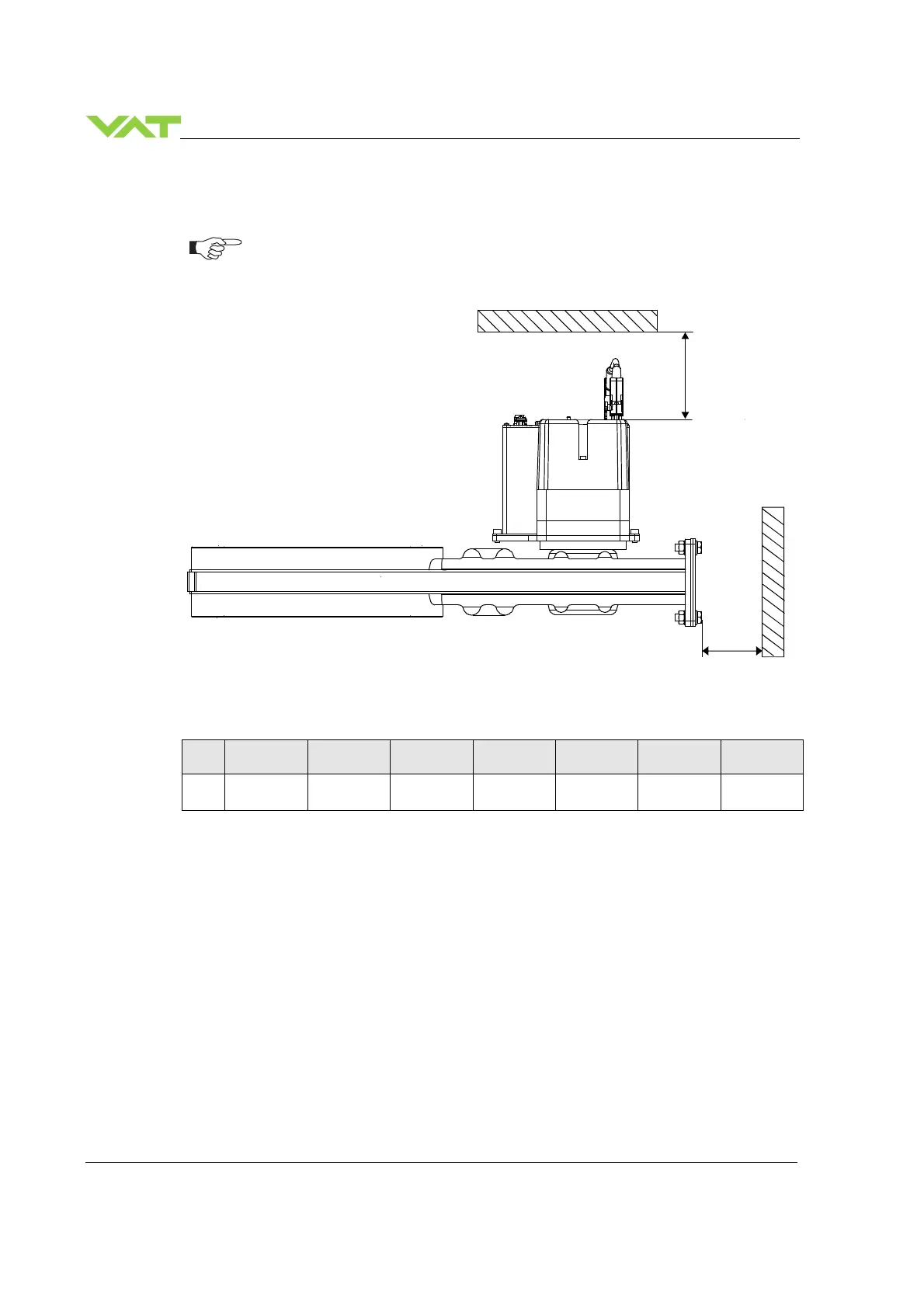

Install the valve with integrated controller with space for dismantling and air circulation
as shown in figure below. (sample picture)
Overview table: DN to required distance (d) for maintenance.
DN
63 80 / 100 160 200 250 320 / 350 400
d
180 220 300 350 450 550 600
100
d
