Series 642 INSTALLATION

742280ED Edition 2017-11-24 33/

119

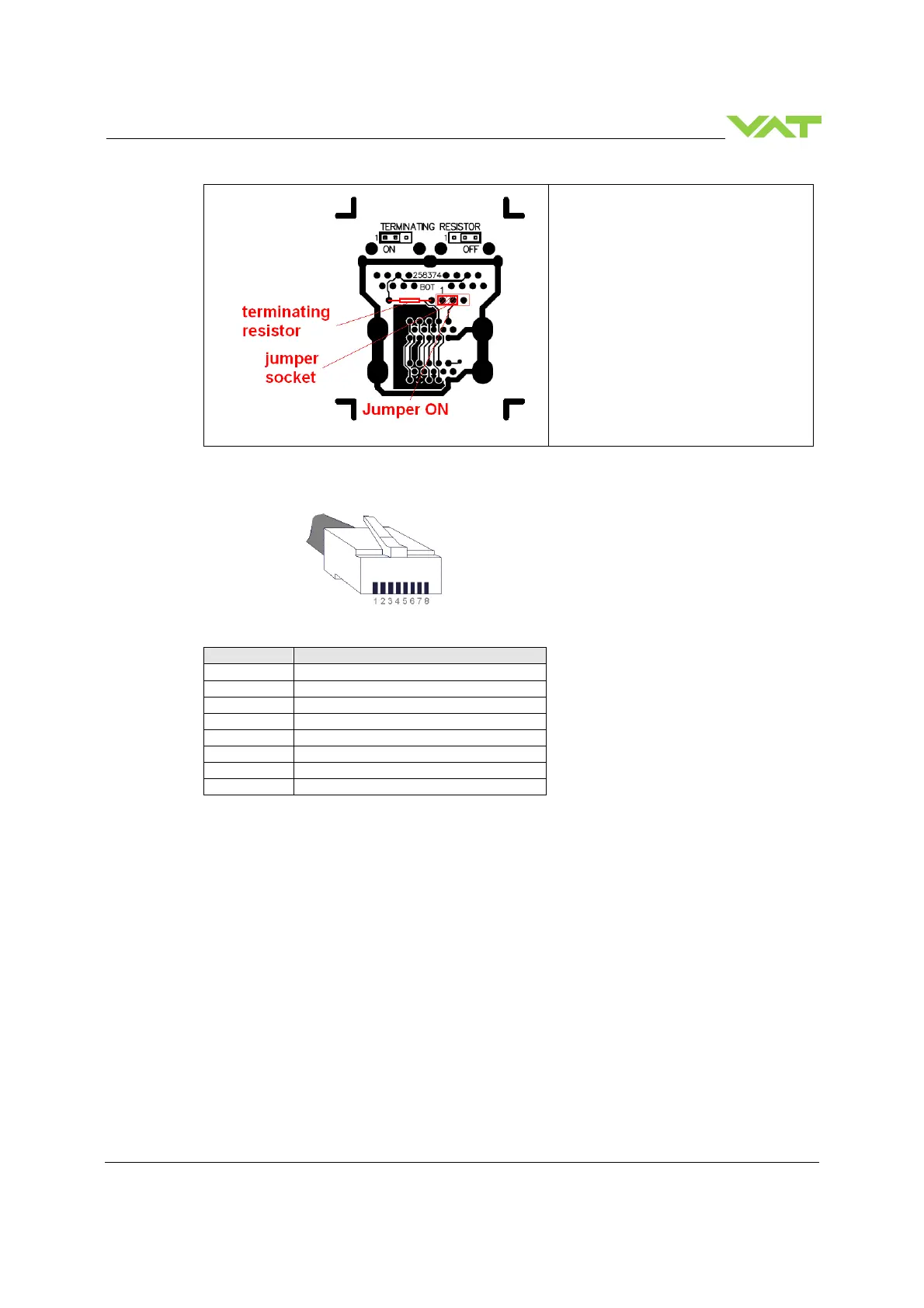

Setting for first and last valve in the chain

Terminating resistor ON

4.5.8.2 Link cable

RJ45 pinning: active pins 4 and 5

Description

1 not used

2 not used

not used

4 Data

5 Data

6 not used

7 not used

8 not used

VAT recommends a cable with the following specification:

• Standard patch cable

• Category 5 or higher

• Double ended with shielded RJ45 connector

• Straight through connection 1:1
