4. Installing the Equipment: Base Stand (Optional)
40 PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual

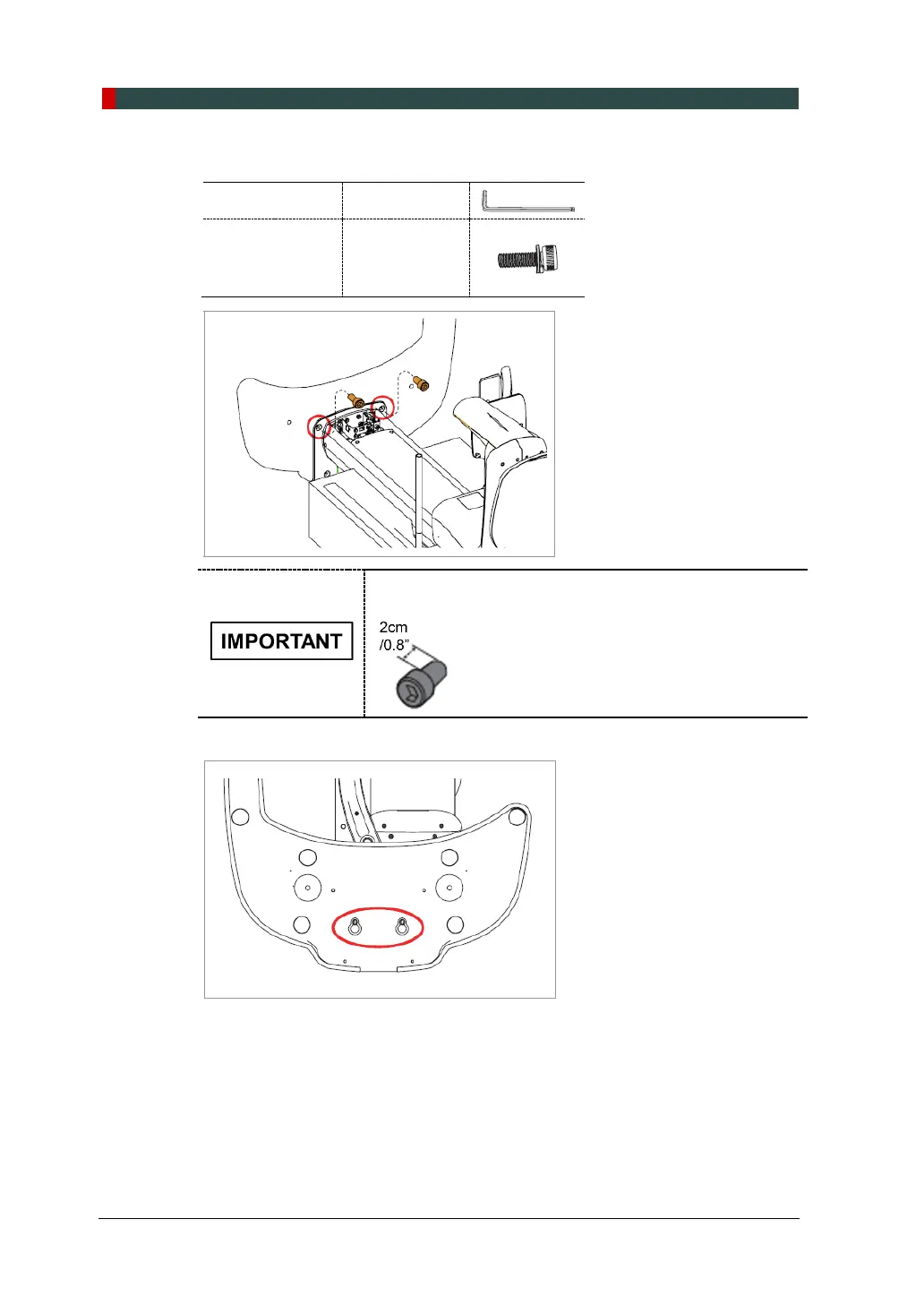

2. Fasten the Base Unit with two Wrench Bolts.
Allen Wrench
8 mm / 0.3”
Wrench Bolt
M10 x 20
w/ Spring
(Part No. 23)
Put the bolts into the holes until about 20 mm are left
outside.
3. Tighten two Wrench Bolts firmly as shown below.
