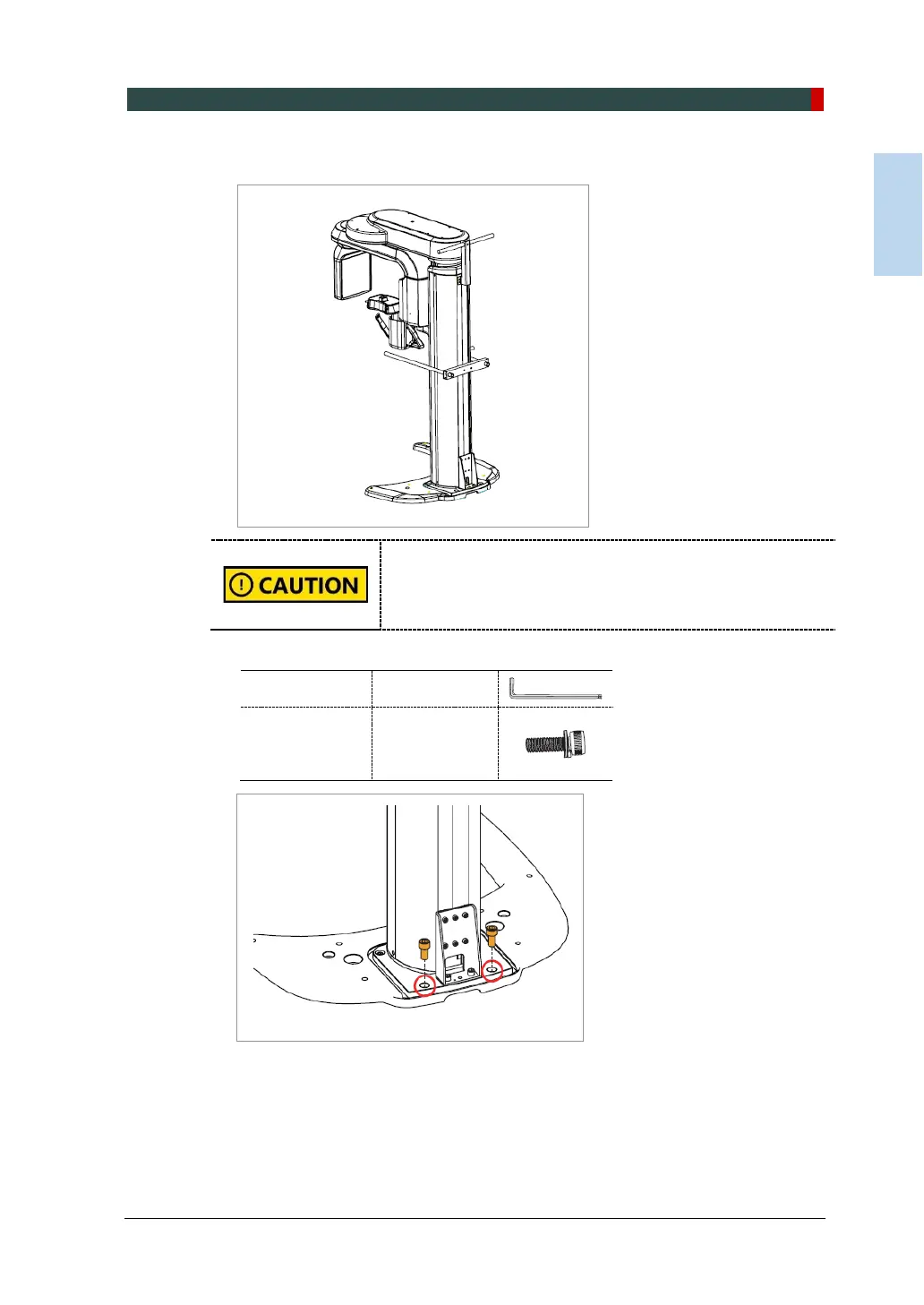

4. Installing the Equipment: Base Stand (Optional)
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual 41
English
4. Put the equipment in a vertical position slowly while holding the upper handle.
Be sure not to damage the cables. Before erecting the
equipment, keep them clear of the equipment.
5. Tighten the three Wrench Bolts to attach the base unit.
Allen Wrench
8 mm / 0.31”
Wrench Bolt
M10 x 20
w/ Spring
(Part No.23)
