5. Installing the Equipment: Wall Mount
66 PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual

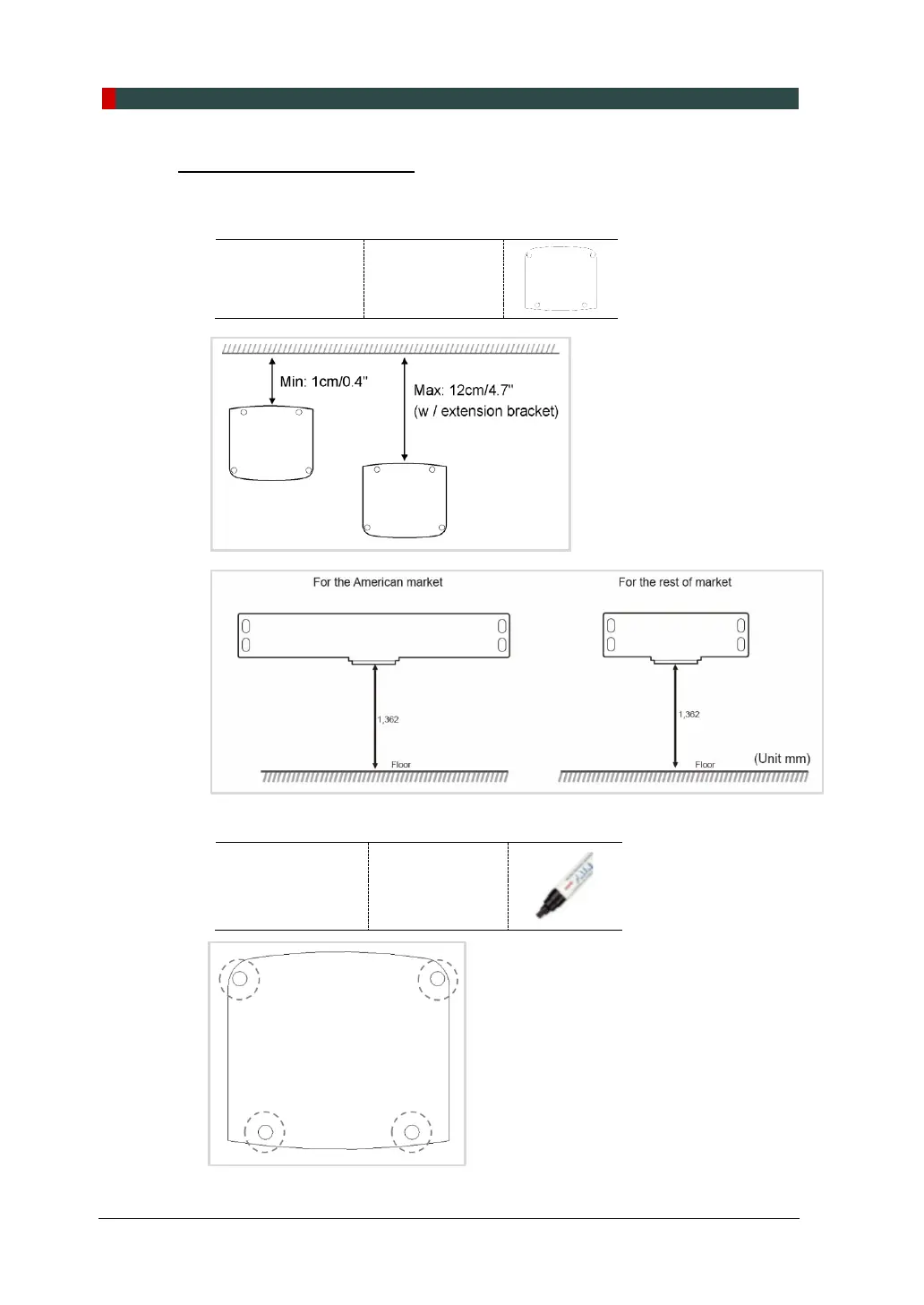

Marking Points on the Floor
1. Put the aligning plate on the floor near the wall where the equipment should be
installed as shown in the figure.
Alignment Plate
(Part No. 4)
2. Mark 6 anchor bolts holes on the floor.
Marker
