3. Before Installing the System
38 PaX-i Plus / Insight Installation Manual

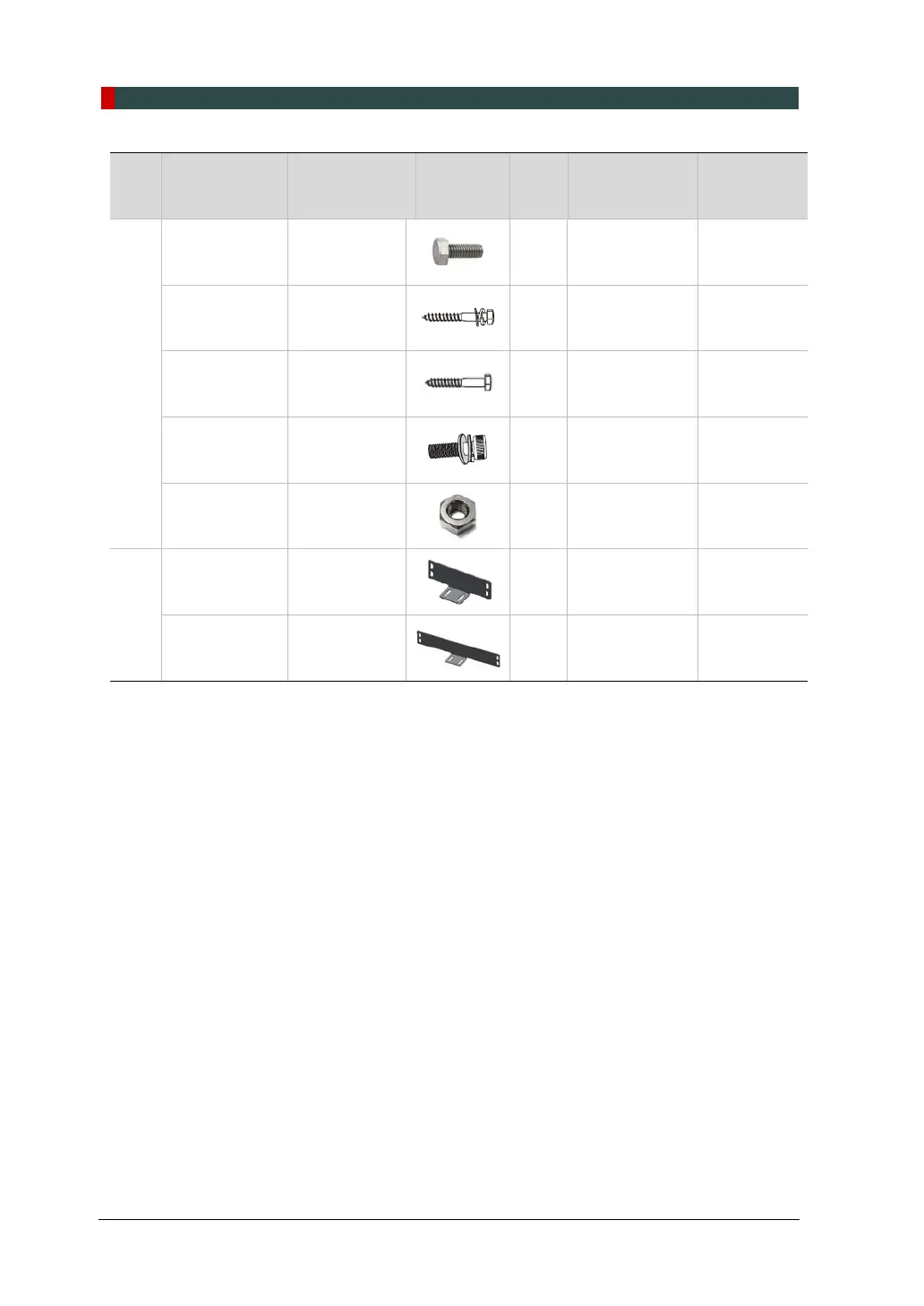

Part
No.
Items Specification Figure QTY Comments
Confirmed
(OK?)
Hex Bolt
M8_L15
W/Spring
Washer
4
Yes □ No □
Wood Screw M8 x 60 4 wall Wood
Yes □ No □
Wood Screw M12 x 70 2 base
Yes □ No □
Wrench Bolt
M8 x 25 w/
Spring and
Flat Washers
2 wall Bracket
Yes □ No □
Nut M8 2 wall Bracket Yes □ No □
35
Wall Bracket 1 1 Yes □ No □
Wall Bracket 2 1
For Americal
only
Yes □ No □
