Operating & Mounting instructions – 8 074 143.03/03 – Page 98
Isolated amplifier TV5, TV6
The >pDRIVE< TV5 is an active isolating amplifier which transforms the input signal (0-10 V) to an
output signal (4...20 mA).
The >pDRIVE< TV6 is an active isolating amplifier which transforms the input signal (0-10 V) to an
output signal (0...20 mA).

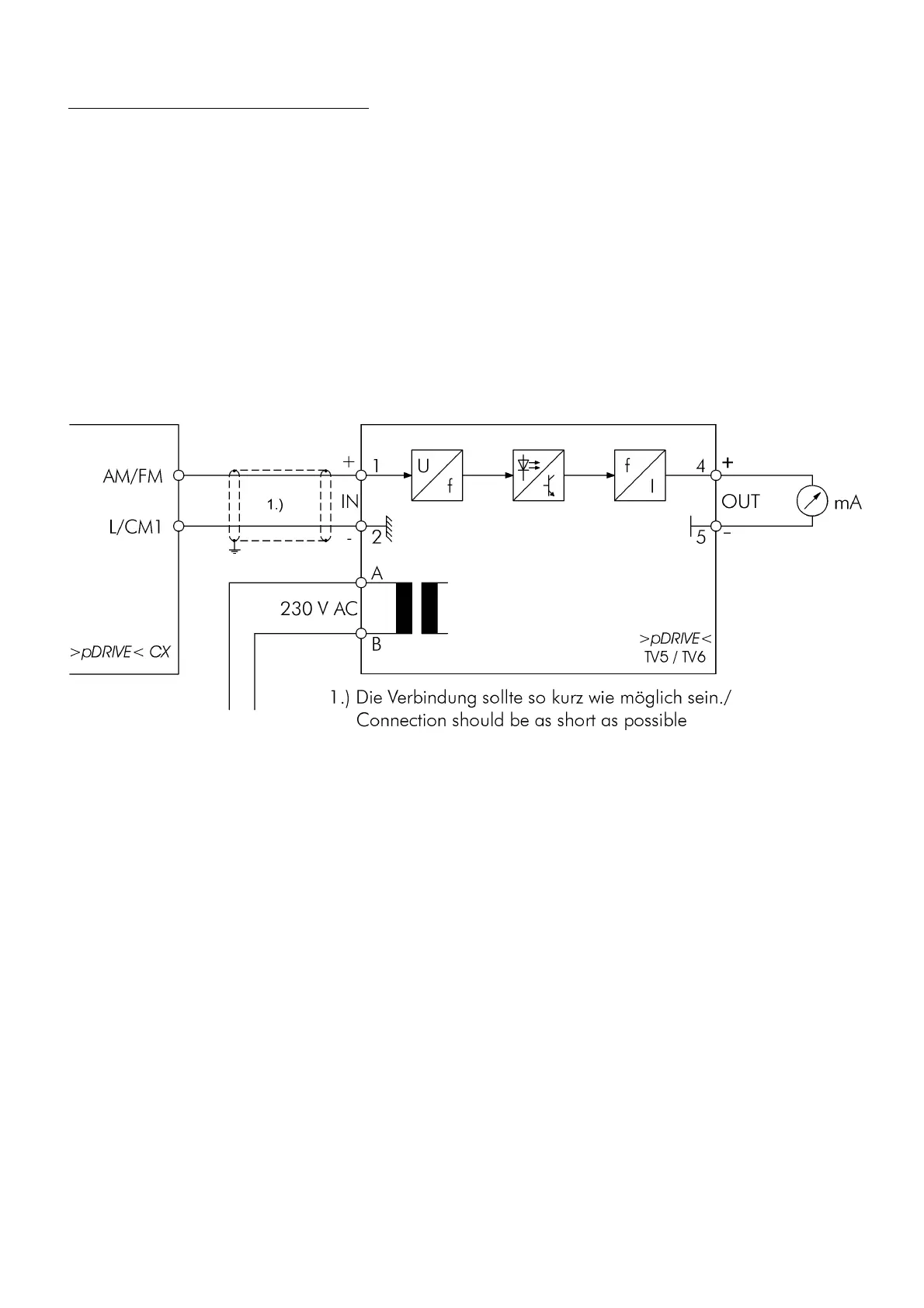

It operates according to the principle of optoelectronic potential separation and has three-way
separation between input, output and supply.
The unit requires an auxiliary voltage of 230 V AC and is mounted on a TS35 rail.
The unit works unipolar and should not be
operated with open input.
Technical Data
Auxiliary supply 230 V ±10 %, 50-60 Hz
Power consumption 3 VA
Voltage input 0 ... 10 V / R
IN
= 100 kΩ
Overload max. 50 V
Current output TV5 4 ... 20 mA
Current output TV6 0 ... 20 mA
Output burden max. 500 Ω
Max. isolating voltage 750 V
Transmission frequency 25 Hz
Linear fault 0,15 %
Ambient temperature 0 ... 50°C
Weight 270 g
Dimensions (H x W x D) 117mm x 45mm x 80mm
