Operating & Mounting instructions – 8 074 143.03/03 – Page 25
Parameters
A045
Voltage gain setting VC 20...100 % 100 %

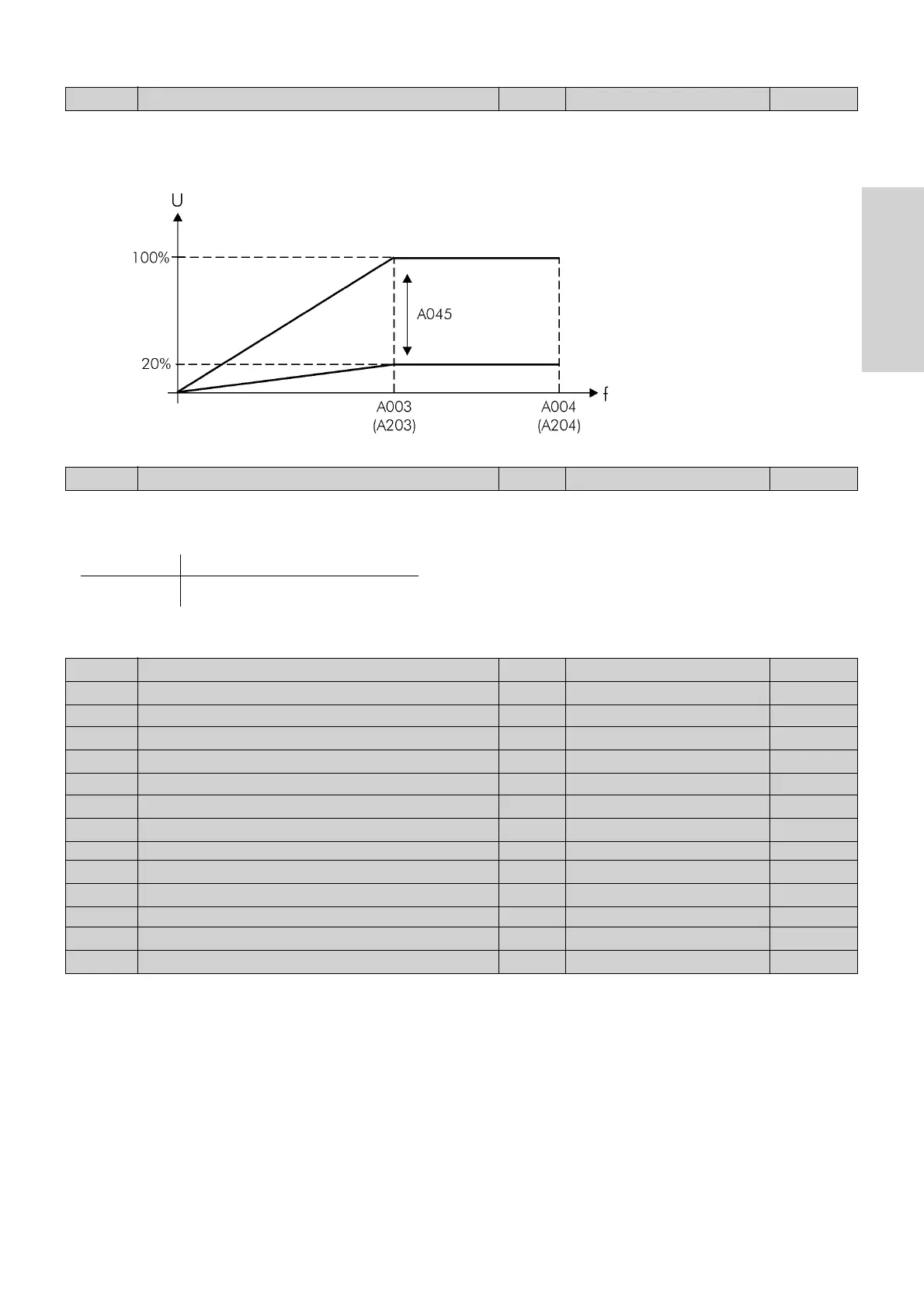

The output voltage can be set within the range of 20...100 % of the motor voltage set with
parameter A082.
b036
Start reduced voltage selection VIC 00 to 06 00
With this parameter the control time of the start voltage is set.
Setting 00 ............................... 06
Control time fast ................. slow
b100
Free adjustable V/f: frequency 1 VIC 0...b102 0 Hz
b101
Free adjustable V/f: voltage 1 VIC 0,0...800,0 V 0,0 V
b102
Free adjustable V/f: frequency 2 VIC 0...b104 0 Hz
b103
Free adjustable V/f: voltage 2 VIC 0,0...800,0 V 0,0 V
b104
Free adjustable V/f: frequency 3 VIC 0...b106 0 Hz
b105
Free adjustable V/f: voltage 3 VIC 0,0...800,0 V 0,0 V
b106
Free adjustable V/f: frequency 4 VIC 0...b108 0 Hz
b107
Free adjustable V/f: voltage 4 VIC 0,0...800,0 V 0,0 V
b108
Free adjustable V/f: frequency 5 VIC 0...b110 0 Hz
b109
Free adjustable V/f: voltage 5 VIC 0,0...800,0 V 0,0 V
b110
Free adjustable V/f: frequency 6 VIC 0...b112 0 Hz
b111
Free adjustable V/f: voltage 6 VIC 0,0...800,0 V 0,0 V
b112
Free adjustable V/f: frequency 7 VIC 0...400 Hz 0 Hz
b113
Free adjustable V/f: voltage 7 VIC 0,0...800,0 V 0,0 V
With parameters b100 to b113 a free adjustable V/f characteristic can be programmed.
The parameters for torque boost (A041 / A241) and for the base frequency (A003 / A203) are not
active.
