23
User Manual

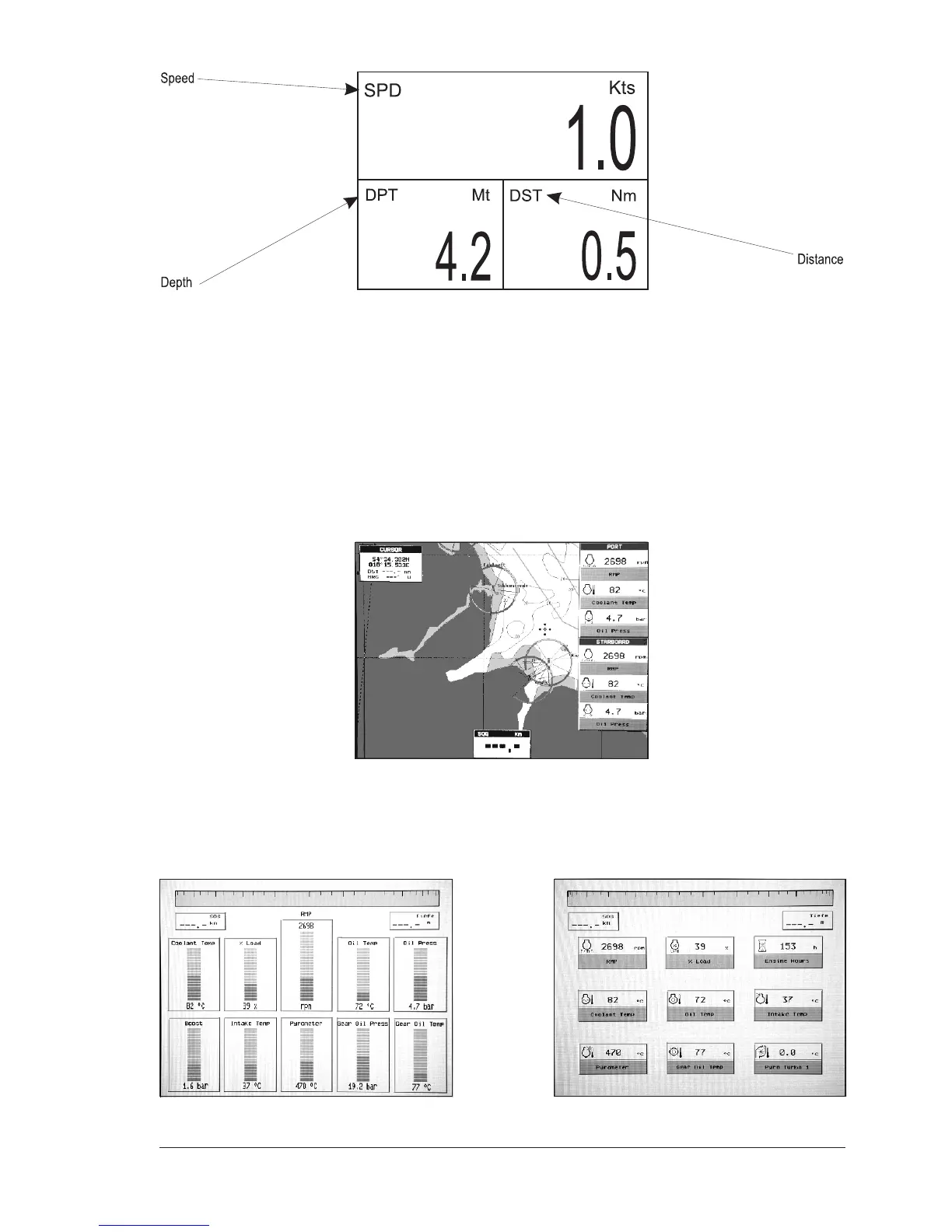

Fig. 2.7g - Example of External NMEA Data, if Speed, Depth and Distance data are set On
(see par. 4.7 INPUT/OUTPUT - External NMEA)
If you have selected a Video Input (see Par. 4.7), in the Chart page a window with
the picture captured from the video signal source is shown.
MAP 11csE Plus GPS:
Other pages are available, Chart with Engine Data and Engine Data pages, shown
in the following pictures.
Chart with Engine Data
The engine data are shown on the right beside the chart:
Fig. 2.7h - Example of Chart with Twin Engine Data
Engine Data page
Engine Data will be displayed according to the setting of the chart plotter, i.e.:
Fig. 2.7i - Example of Single Engine in Graph mode (left) and Digital mode (right)
