VDO MAP 7wi Plus GPS - Technical Specifications; C-CARD Inserting and Removing

91
User Manual

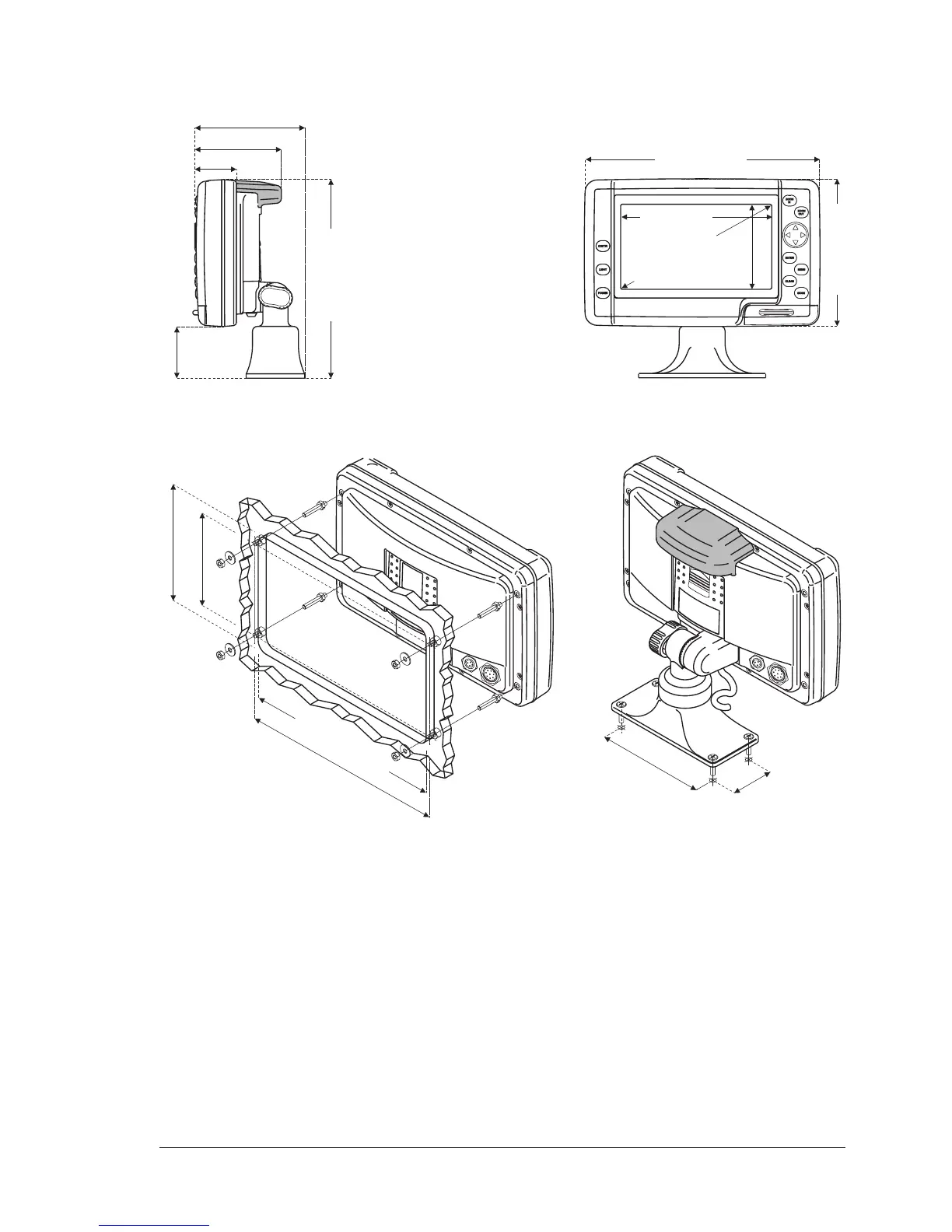

CHART PLOTTER DIMENSIONS
GRAY parts are present ONLY on chart plotter WITH GPSINTERNAL
52.5mm [2.1”]
42.5mm [1.7”]
88.5mm [3.5”]
112.5mm [4.4”]
203.5mm [8”]
92mm
[3.6”]
151mm [5.9”]
241mm [9.5”]
153mm [6”]
177.8mm [7”]
INSTALLATION AND REMOVING
115mm [4.5”]
45mm[1.8”]
100mm [3.9”]
126mm [5”]
220mm [8.7”]
211mm [8.3”]
GRAY parts are present ONLY on chart plotter WITH GPSINTERNAL
MAP 7w Plus GPS flush installation and MAP 7w Plus GPS/MAP 7wi Plus GPS bracket installation
