VDO MAP 7wi Plus GPS - Technical Specifications; FF Module Technical Specifications; C-CARD Inserting and Removing

97
User Manual

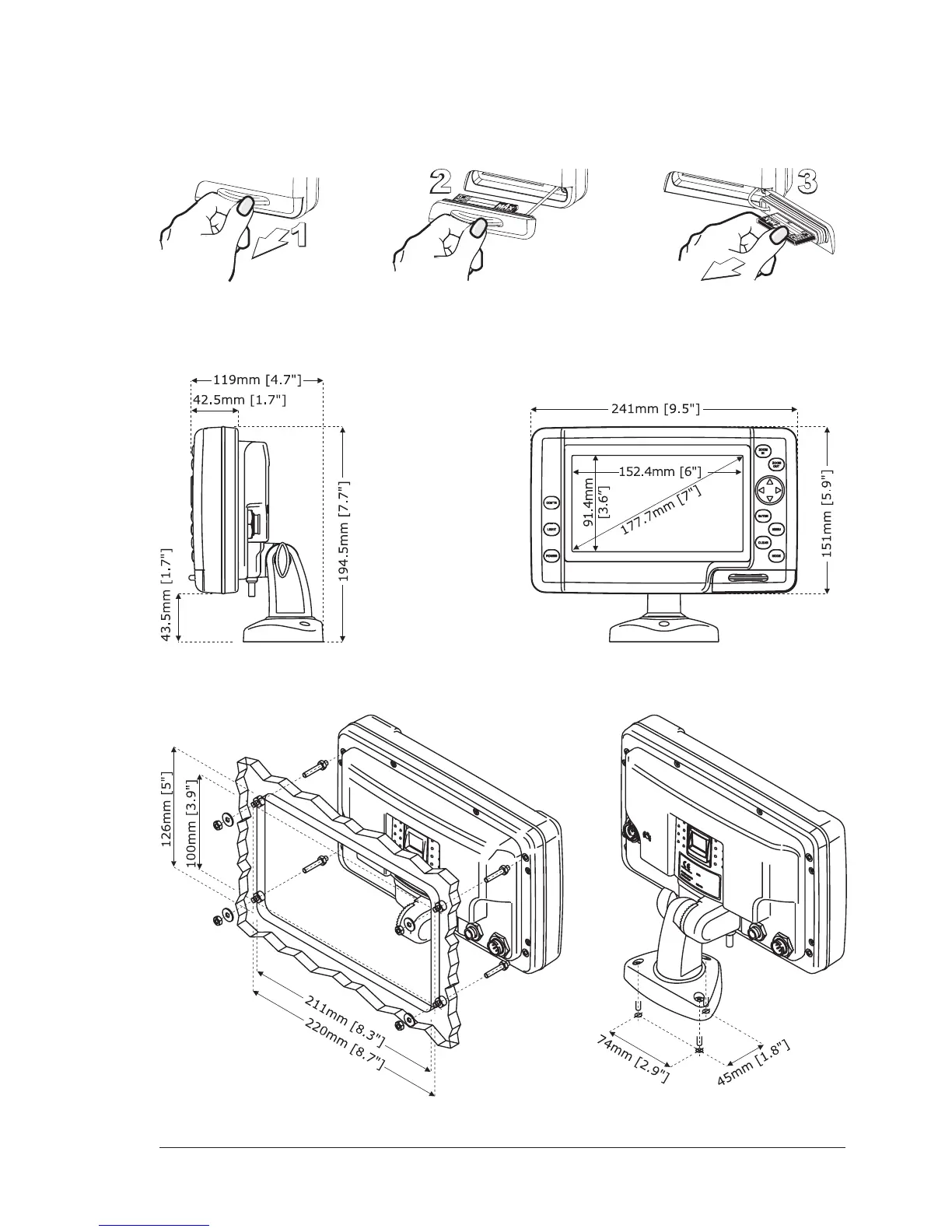

Removing the C-CARD
To remove the C-CARD inserted in the chart plotter open the door (1). The C-
CARD will eject out of the chart plotter slot remaining fixed into the door (2). Then
remove the C-CARD from the slot (3).
CHART PLOTTER DIMENSIONS
INSTALLATION AND REMOVING
