4 Mounting
FIBERTRAC 31 • Probus PA
43833-EN-170126
Prior to setup you have to replace these protective caps with ap-
proved cable glands or close the openings with suitable blind plugs.
The suitable cable glands and blind plugs come with the instrument.
4.2 Mounting instructions
Note:
During the planning, our specialists will analyse the conditions of the
measurement loop to dimension the isotope accordingly.
You get a "Source Sizing" document specifying the required source
activity and containing all relevant mounting information for your
measuring point.
You must follow the instructions in this "Source Sizing" document in
addition to the following mounting instructions.
The following mounting information is applicable as long as there is
nothing else specied in the "Source Sizing" document.
L1
L2
h

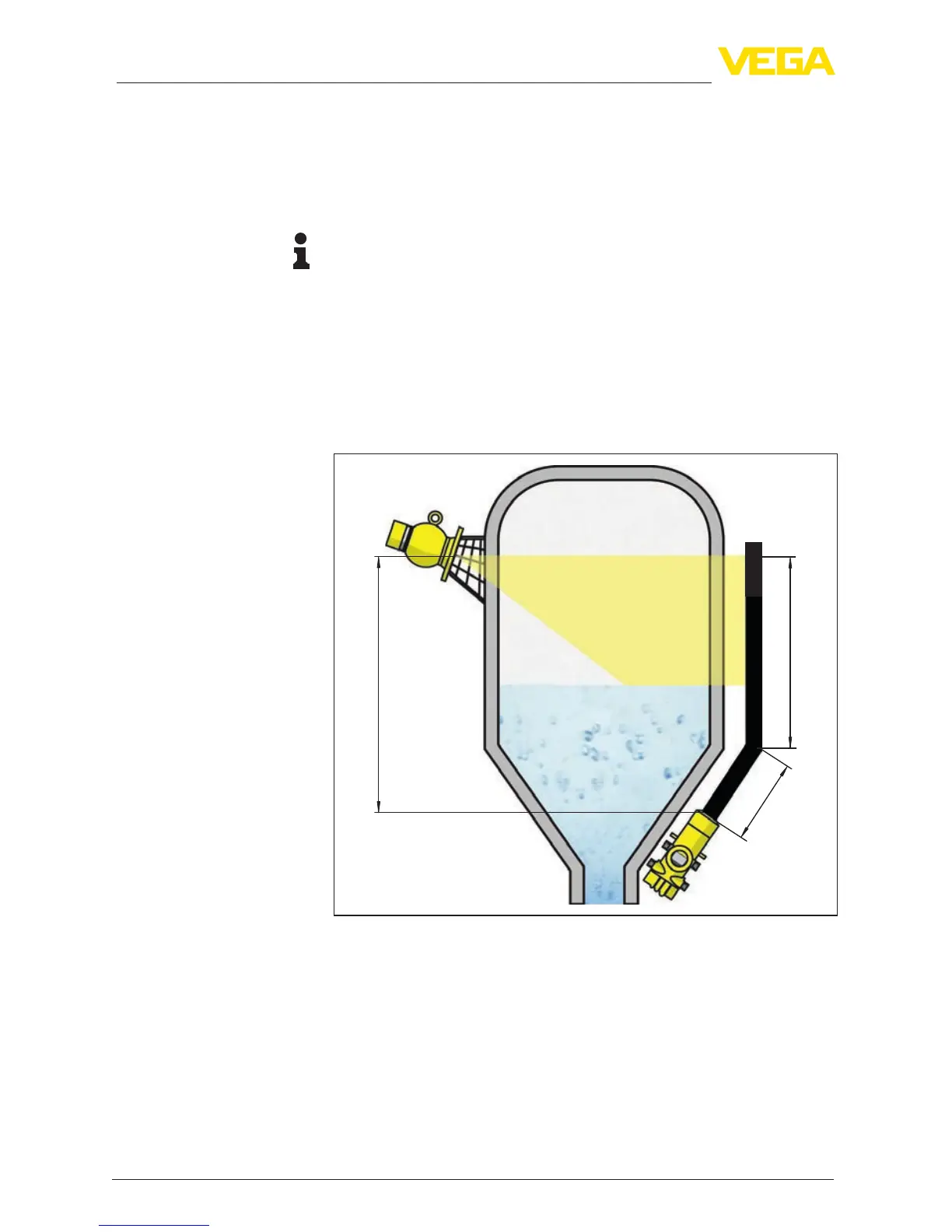

Fig. 3: Level measurement in a storage tank
h Measuring range
L Measurement length (L1, L2)
You can nd information on protective barriers and the mounting
of the corresponding source container in the operating instructions
manual of the source container, e.g. VEGASOURCE.
You can mount the FIBERTRAC 31 with the housing head upward or
downward. When the housing head is mounted downward, the hous-
ing itself is more easily accessible.
Installation position
