5 Connecting to power supply
FIBERTRAC 31 • Probus PA
43833-EN-170126
Information:
The terminal blocks are pluggable and can be detached from the
electronics. To do this, loosen the two lateral locking levers of the
terminal block with a small screwdriver. When loosening the locking,
the terminal block is automatically squeezed out. It must snap in place
when re-inserted.
5.2 Connection - Level measurement
Non-Ex instruments and instruments with non-intrinsically safe
current output
7
9
10
5
6
8
1
2
3
4
1
1
24
/L
/N
PE
56
22
11
12
2122 1920 18 17 14 1316 15 12
91011

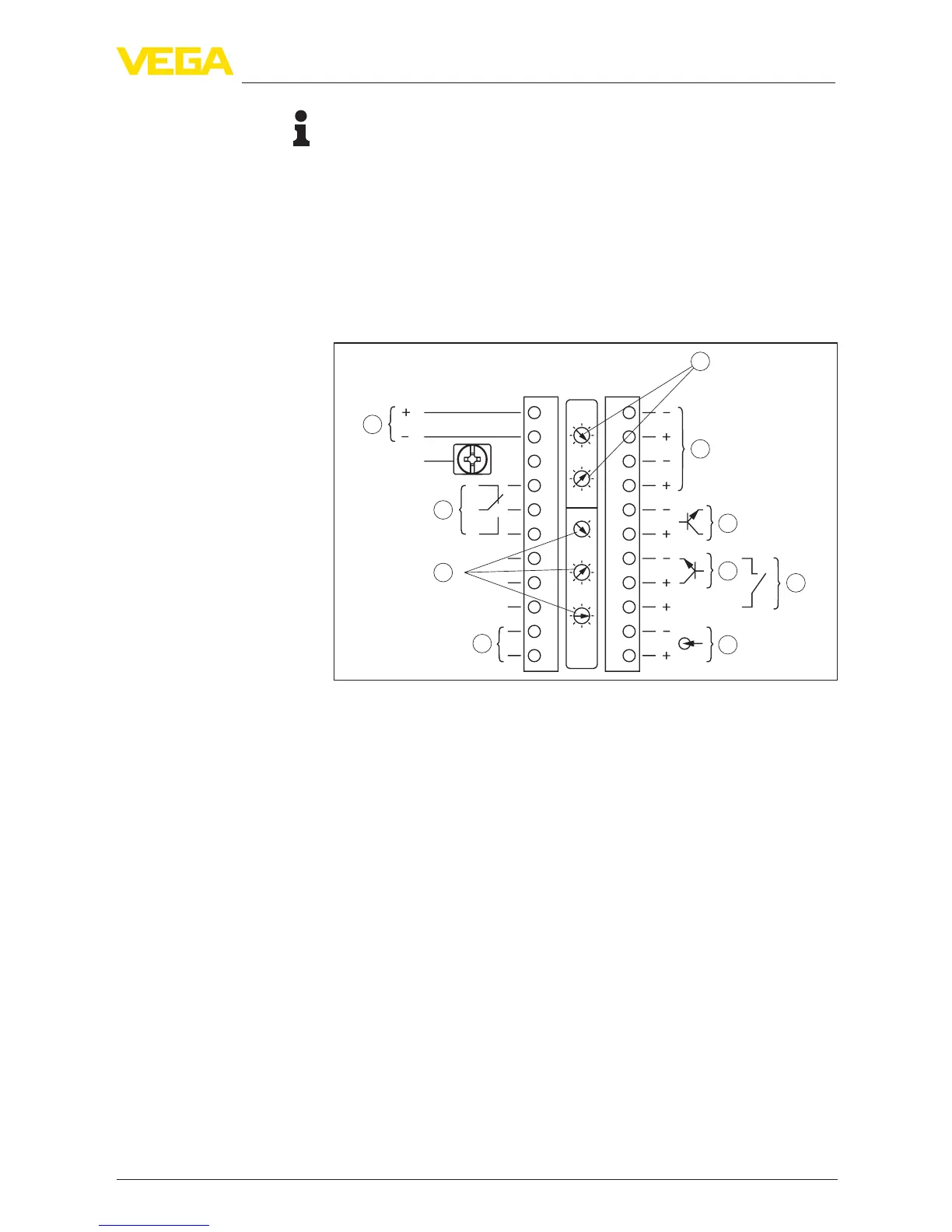

Fig. 8: Electronics and terminal compartment with non-Ex instruments and
instruments with non-intrinsically safe current output
1 Voltage supply
2 Relay output
3 AdjustmentbusaddressforProbusPA
4 ConnectionProbusPA
5 Signal input 4 … 20 mA (active sensor)
6 Switching input for NPN transistor
7 Switchinginputoating
8 Transistor output
9 Interface for sensor-sensor communication (MGC)
10 Setting the bus address for sensor-sensor communication (MGC)
1)
Electronics and terminal
compartment - Non-Ex
instruments and instru-
ments with non-intrinsi-
cally safe current output
1)
MGC = Multi Gauge Communication
