FIBERTRAC 31 - Mounting example
219,8 mm
(8.65")
195 mm
(7.68")
ø 8,4
mm
(0.33")
152,5 mm
(6.00")
127 mm
(5.00")
51 mm
(2.01")
14 mm
(0.55")
104,9 mm
(4.13")
450 mm
(17.72")
183 mm
(7.20")
38 mm
(1.50")
38 mm
(1.50")
101,3 mm
(4.00")
34 mm
(1.34")
ø 42 mm
(1.65")
35,1 mm
(1.38")
r

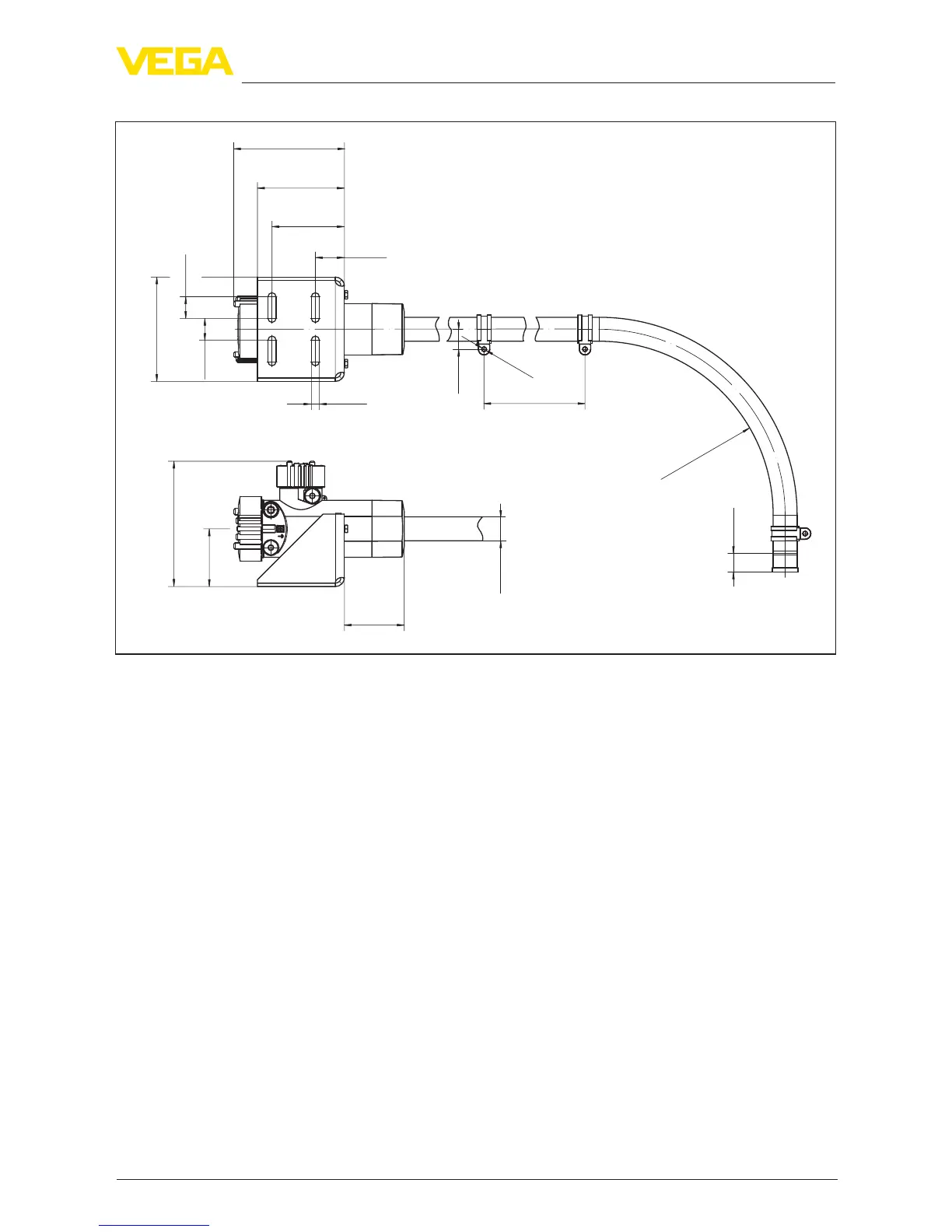

Fig. 33: FIBERTRAC 31 with supplied mounting accessories
r Min. bending radius: 305 mm (12 in)
