27
6 Set up with the display and adjustment module
MINITRAC 31 • 4 … 20 mA/HART - four-wire
40447-EN-130430
6.2 Adjustment system
1
2

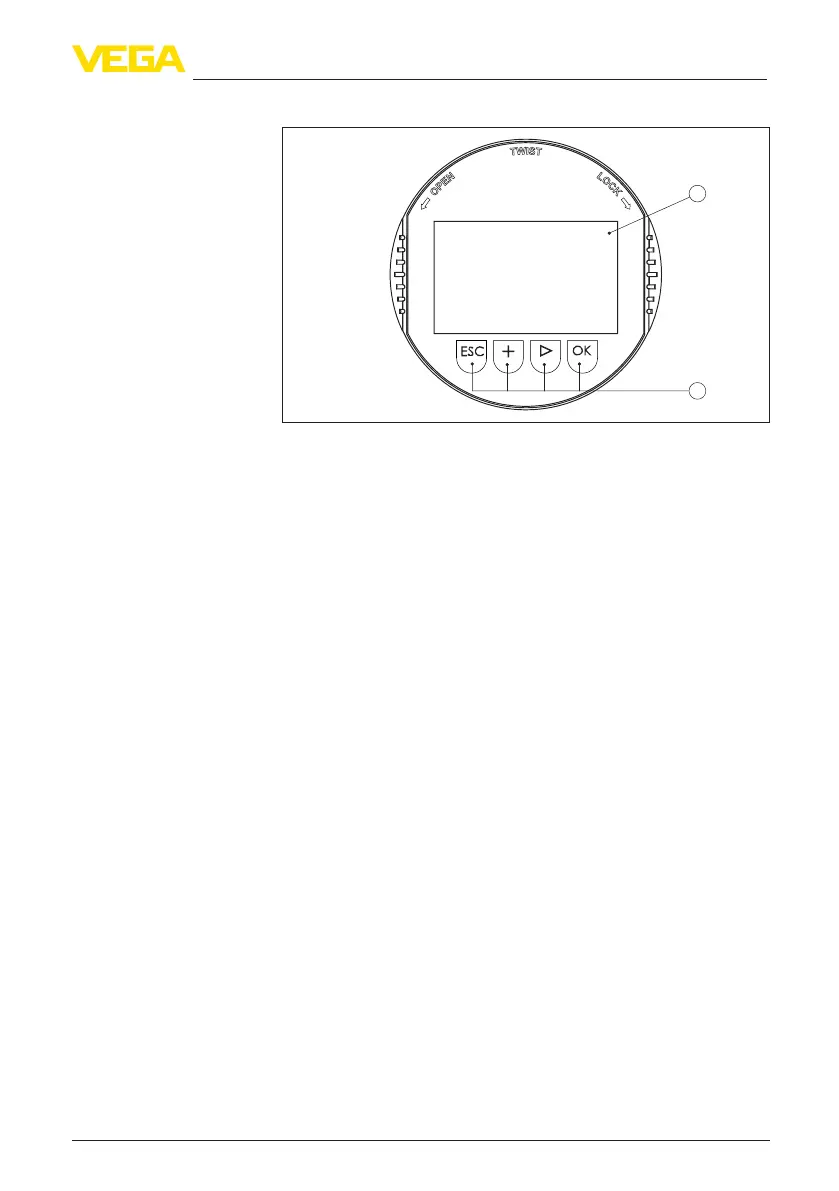

Fig. 19: Display and adjustment elements
1 LC display
2 Adjustment keys
[OK] key:
Move to the menu overview
Conrmselectedmenu
Edit parameter
Save value
[->] key:
Presentation, change measured value
Select list entry
Select editing position
[+] key:
Change value of the parameter
[ESC] key:
Interrupt input
Jump to next higher menu
The sensor is adjusted via the four keys of the display and adjust-
ment module. The LC display indicates the individual menu items. The
functions of the individual keys are shown in the above illustration.
Approx. 60 minutes after the last pressing of a key, an automatic reset
tomeasuredvalueindicationistriggered.Anyvaluesnotconrmed
with [OK] will not be saved.
6.3 Parameter adjustment - Level measurement
Through the parameter adjustment the instrument is adapted to the
application conditions. The parameter adjustment is carried out via an
adjustment menu.
Key functions
Adjustment s
ystem
