9 Diagnostics and servicing
VEGAFLEX 86 • Probus PA
44232-EN-160518
If you have stored the data of the parameter adjustment during the
rst setup of the sensor, you can transfer these to the replacement
electronics module. A new setup is no more necessary.
9.6 Exchange or shorten cable/rod
The cable or rod (meas. part) of the probe can be shortened, if neces-
sary. To loosen the rod or cable you need a fork spanner with spanner
width 13.
1. Loosen the rod or cable by applying a fork spanner to the at
surfaces (SW 13), provide counterforce with another fork spanner
(SW 13)
2. Unscrew the loosened rod or cable manually.
3. Place the enclosed new double washer onto the thread.
Caution:
Make sure that the two components of the double washer remain
together.
4. Screw the new rod and the new cable manually to the thread on
the process tting.
5. Exert counterforce with the second fork spanner and tighten
the measuring rod or cable on the at surfaces with a torque of
20 Nm (15 lbf ft).

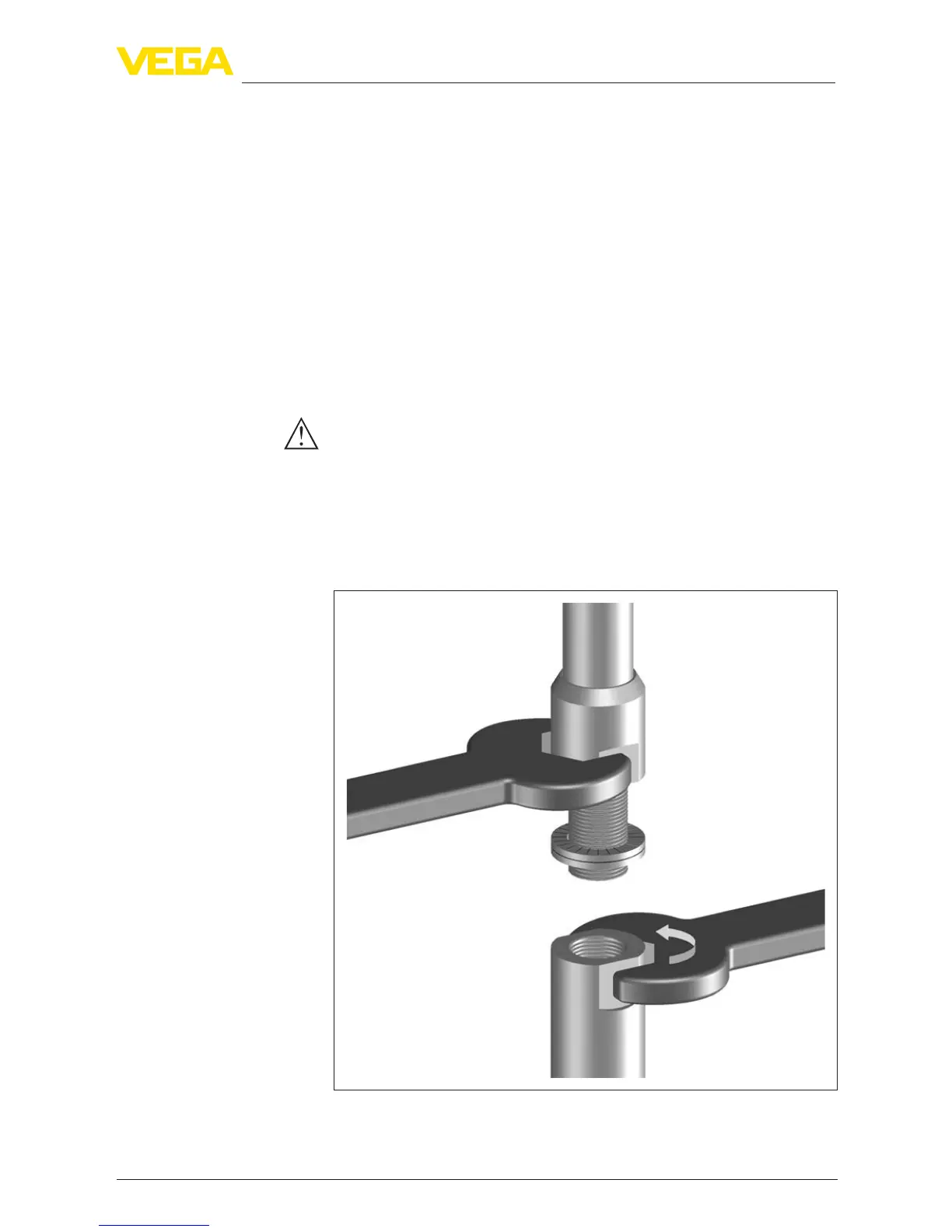

Fig.51:Exchangecableorrod
Exchanging the cable/rod
