8
VEGAPULS 6X
1022892-EN-240312
Processpressure
Horn antenna for high temperature -1 … +160 bar
PVDF version with thread -1 … +3 bar
Cableglands,threadedopenings
Type Thread Cablediameter[mm] Torques[Nm]
Hummel EXIOS A2F 1.608.2003.50 M20 x 1.5 6 … 12 mm 8
Hummel EXIOS A2F 1.608.1203.70 ½ NPT 6 … 12 mm 8
Hummel EXIOS MZ 1.6Z5.2000.51 M20 x 1.5 9 … 13 mm 8
Hummel EXIOS MZ 1.6Z5.1200.70 ½ NPT 9 … 13 mm 8
The specied torques are test torques and can only be regarded as reference values. The manufac-
turer's mounting instructions provided must be observed.
If suitable cable glands or cable insertion possibilities not included in the scope of supply are used,
these must be compatible with the threaded openings.

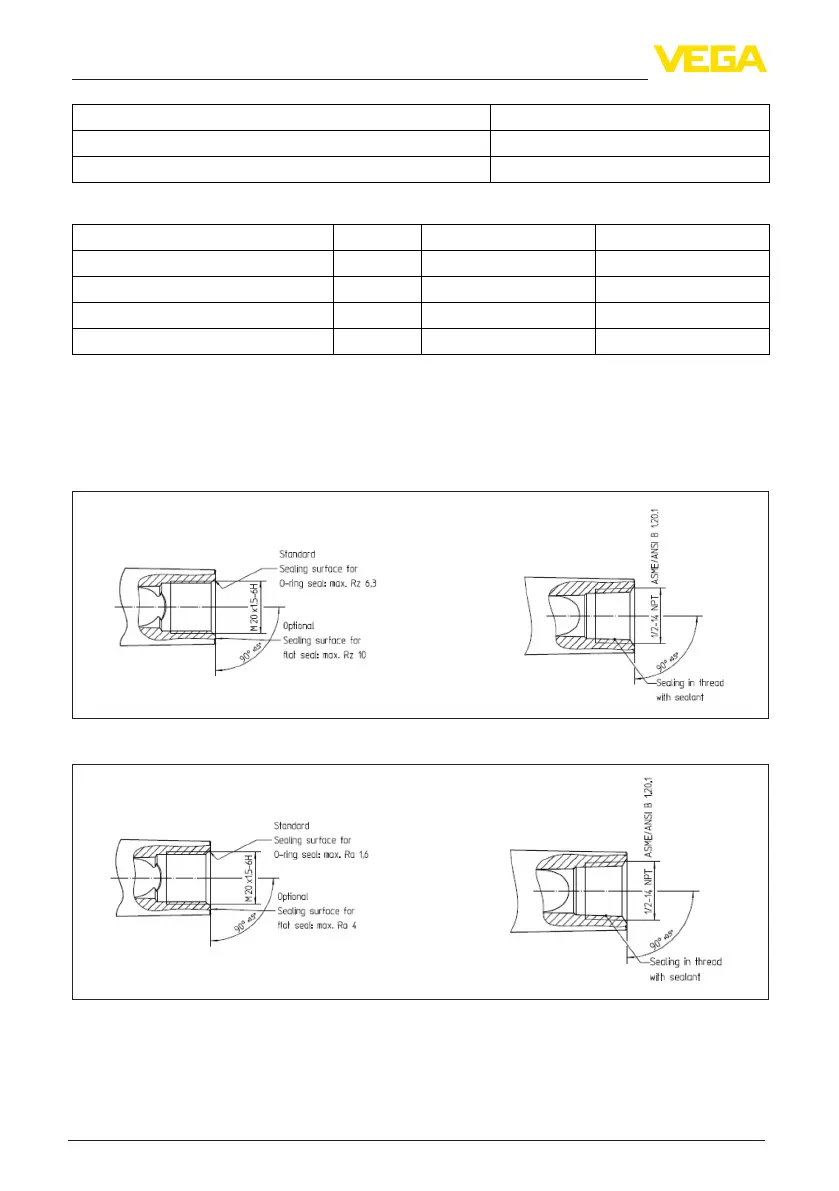

AluminiumhousingwithM20x1.5thread,½NPTthread
Stainless-steelhousing(necast)withM20x1.5thread,½NPTthread
Flameproofenclosure"d"
•
The terminals for connecting the operating voltage or signal circuits are integrated in the con-
nection compartment with type of protection ameproof enclosure "d"
•
The thread gaps between housing and cover as well as between threaded tting and container
are ameproof joints
