HPS50 PersonalScope
TM

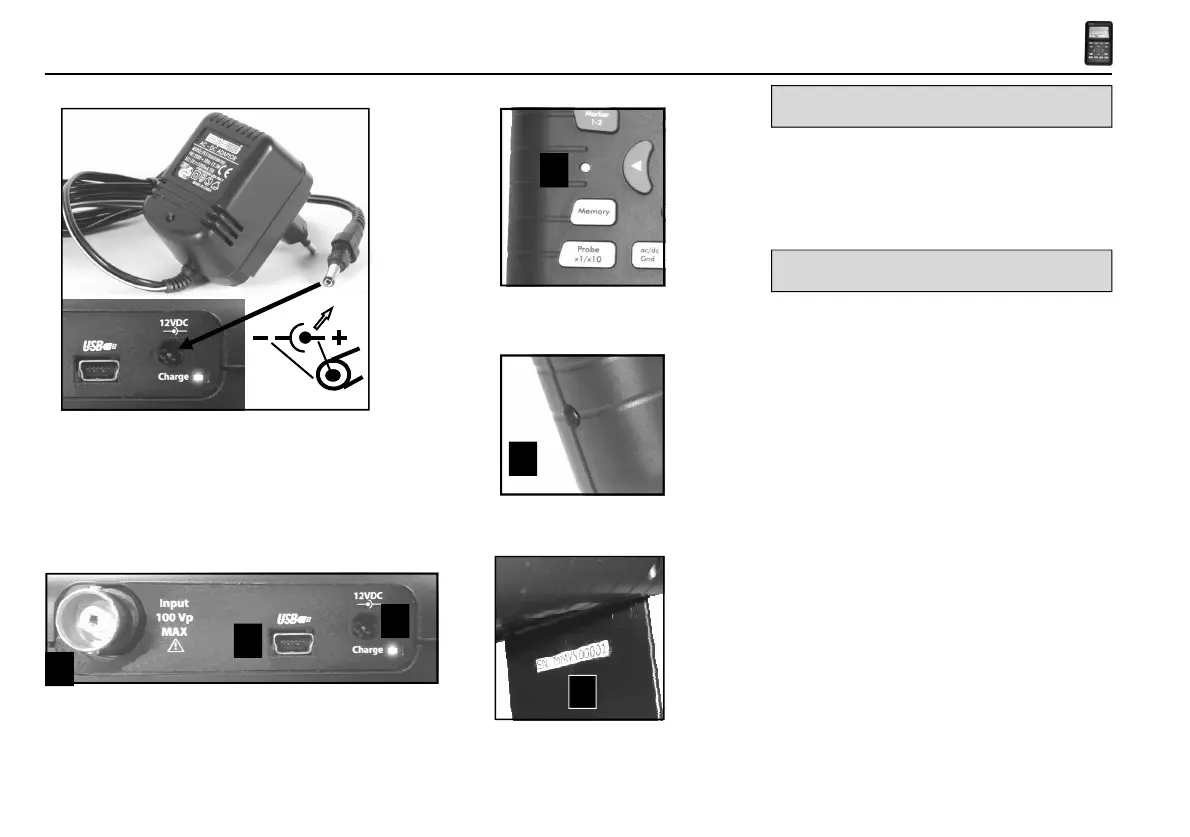

Power supply
Fig 8.0
The HPS50 Personal Scope can be powered by
means of the supplied adapter or with the
internal lithium Ion battery (7,4V/1050mAh).
Fig 5.0
POWER SUPPLY
USE
Survey of the connections and controls
1. BNC input connector (max. input 100Vp
AC+DC).
2. Adapter connection (observe the polarity!)
3. USB output connector (galvanically separated)
Use the supplied USB cable
4. Reset push button
5. X10 probe testing signal
6. Serial number.
Fig 7.0
1
2
3
4
Fig 9.0
Fig 10
6
5
