22
HPS50 PersonalScope
TM
Signal position
X/Y - pos
Press first the ‚X/Y-pos‘ key before pressing the
arrow keys in order to move the signal in the direc-
tion of the arrows. Prolonged pressing will make

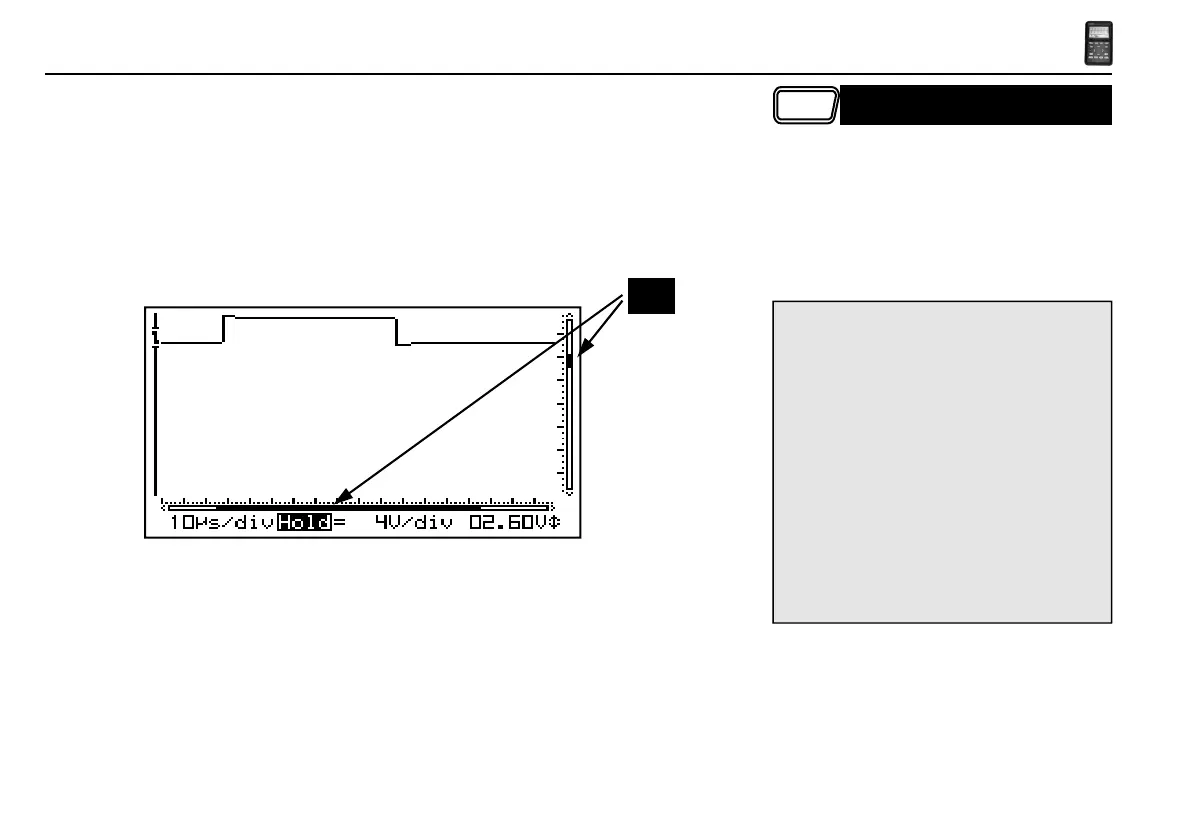

the X or Y- position change faster. A black bar (1)
indicates the relative position of the signal in the
sample window, see fig. 35
SIGNAL SCREEN
Notes:
• The Y-position cannot be shifted in ‘hold’-
mode
• A total of 256 samples are stored in memory,
but the X-size of the screen is limited. By shif-
ting the X-direction you can display all stored
samples.
• At dynamic display mode (set-up menu), the
widest display layout is chosen by shifting the
x-position.
• When no markers are displayed, the cursor
keys are set for changing the time base or
input sensitivity when no keys are pressed
during 10 seconds.
1
Fig 35
