HPS50 PersonalScope
TM
Screen

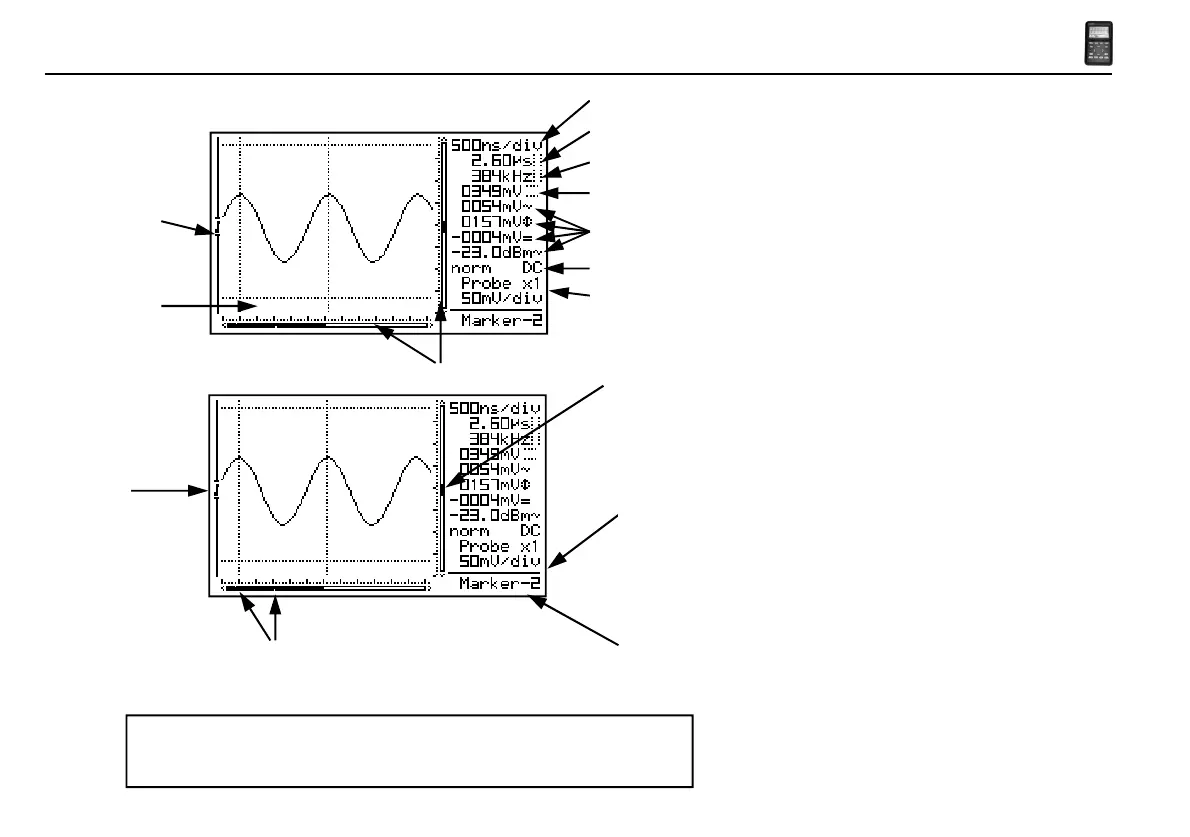

1. Relative position indication of the signal in the
window.
2. Trigger position and slope indication
3. Signal window with (possibly) the markers or
grid to indicate the various divisions.
4. Time per division.
5. Time between markers (if present).
6. Calculated frequency 1/dt between markers (if
present).
7. Voltage between the markers (if present).
8. Measurement readout (maximum 4 at a time).
Depending on screen layout. See page 20
9. Trigger information or screen hold indication,
input-coupling indication.
10. X1 or X10 probe setup indication.
11. Selected voltage per division.
12. Indication of the selected cursor key function or
battery-low indication.
13. Small dots indicating relative marker position
(only if markers are present).
14. Vertical position of the signal on the screen
15. Slope indication
REMARK: The screen depends on selected layout. See page 20
OPMERKING : De schermuitlezing is afhankelijk van de gekozen weergave. Zie pagina 20
REMARQUE : l'écran dépend de la présentation choisie. Voir page 20
BEMERKUNG : Die Schirmanzeige hängt von der gewählten Wiedergabe ab. Siehe Seite 20
Fig 9.0
2
3
4
5
6
7
8
9
10
1
Survey of the indications on the screen
Fig 10
11
13
12
15
14
