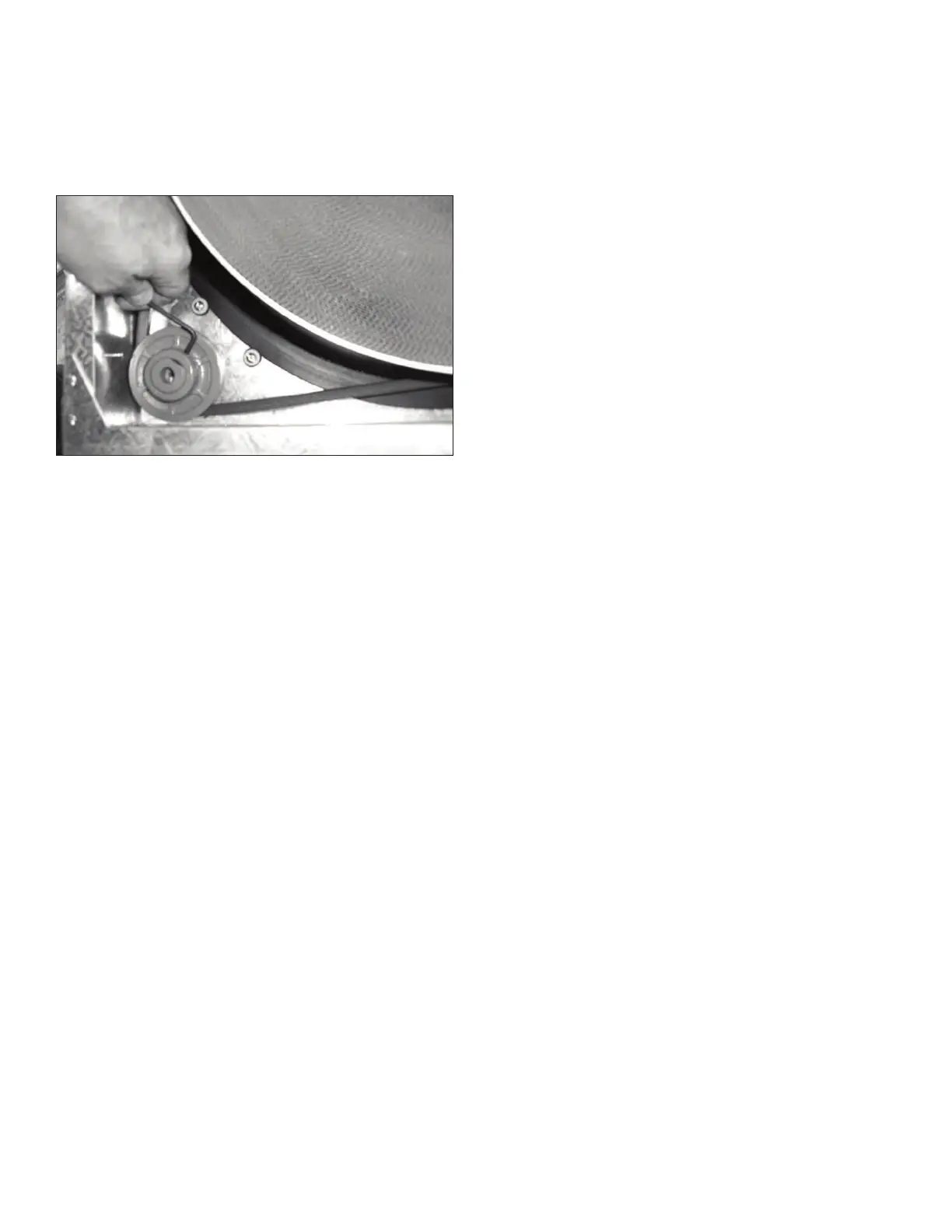

Remove the outer half of the adjustable sheave (pulley).
Using a 5/32" Allen key, loosen the set screw located on the
outer half of the adjustable sheave. Remove the outer half
of the adjustable sheave by turning it counter-clockwise.
This sheave piece is threaded and therefore it will take a
few rotations to completely remove it. Once removed, slide
the belt off the cassette.
Install the new belt onto the cassette and adjustable
sheave (pulley). Re-install the outer half of the adjustable
sheave by rotating it clockwise onto the threaded shaft.
This process will be used to tighten the belt around the
perimeter of the cassette. DO NOT tighten the belt onto
the cassette until the beam assembly has been re-
installed.
Reverse the above procedures to re-assemble the cas-
sette assembly. It will also be necessary to complete the
steps in the previous sections that were used to install the
cassette brush seal and the cassette.
