Appendix A
Roofcurb Detail (
ERV500e ONLY)
ERV500e
A
A
NOTE: Dimensions in [ ] are millimeters
15.000"
[381]
1.500" typ.
[38]
1.500" typ.
[38]
17.500"
[445]
14.500"
[368]
2.375"
[60]
5.500"
[140]
15.250"
[387]
64.000"
[1,626]
61.000"
[1,549]
WOOD NAILER
RETURN AIR
SUPPLY
AIR
RIGID INSULATION
(styro)

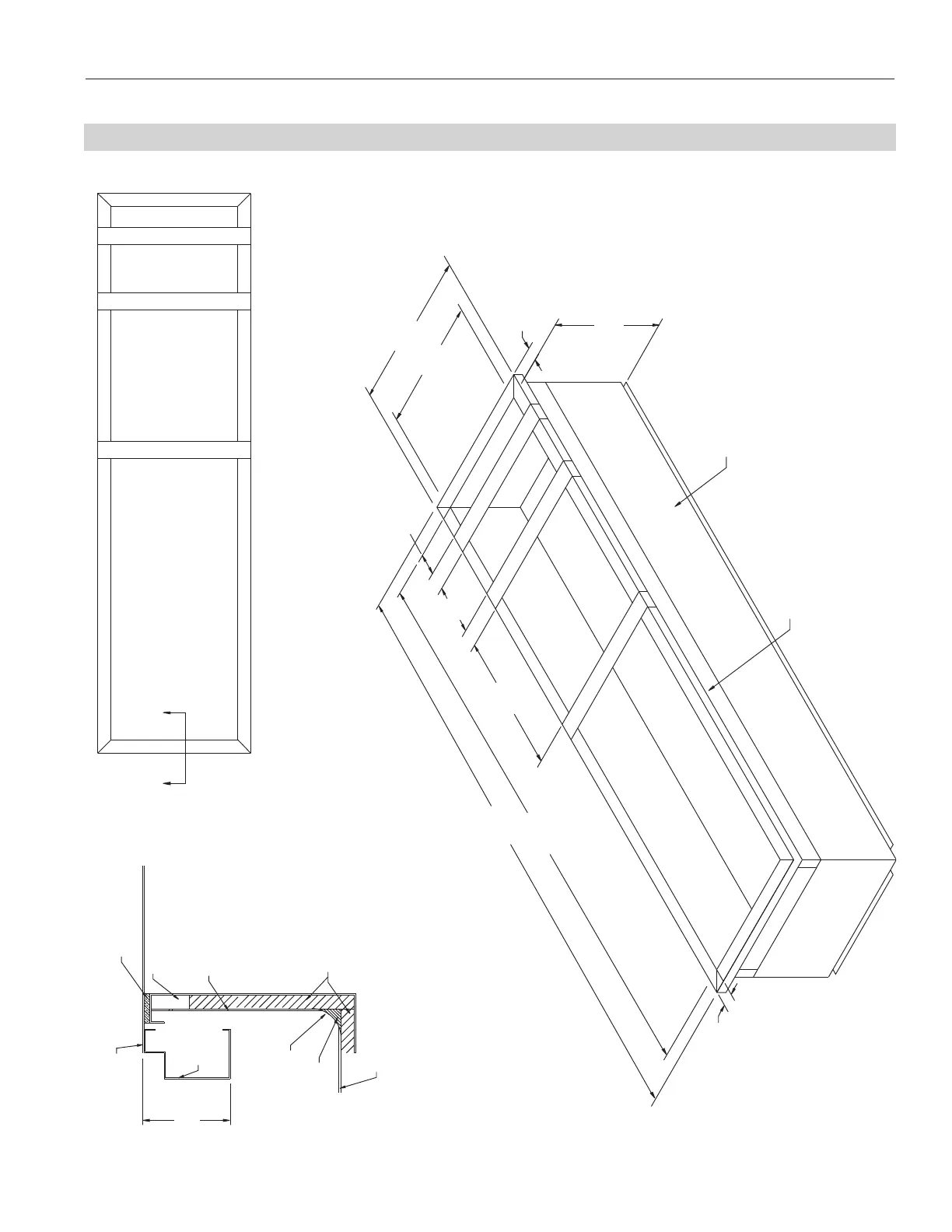

SECTION A-A
Unit
Counter Flashing
(Field Supplied)
Roofing Felt
(Field Supplied)
Unit
Baserail
Overhang:
3" [76mm]
Roofing Material
(Field Supplied)
Cant Strip
(Field Supplied)
3/8" [10] Gasket
(Supplied with Curb)
Rigid Insulation
(Optional)
Wood Nailer
