Venmar ERV500e - Page 17

- 17 -
19
18
16
17
13
12
11
10
14
4
7
8
9
1
2
3
15
6
5
19
3
2
1

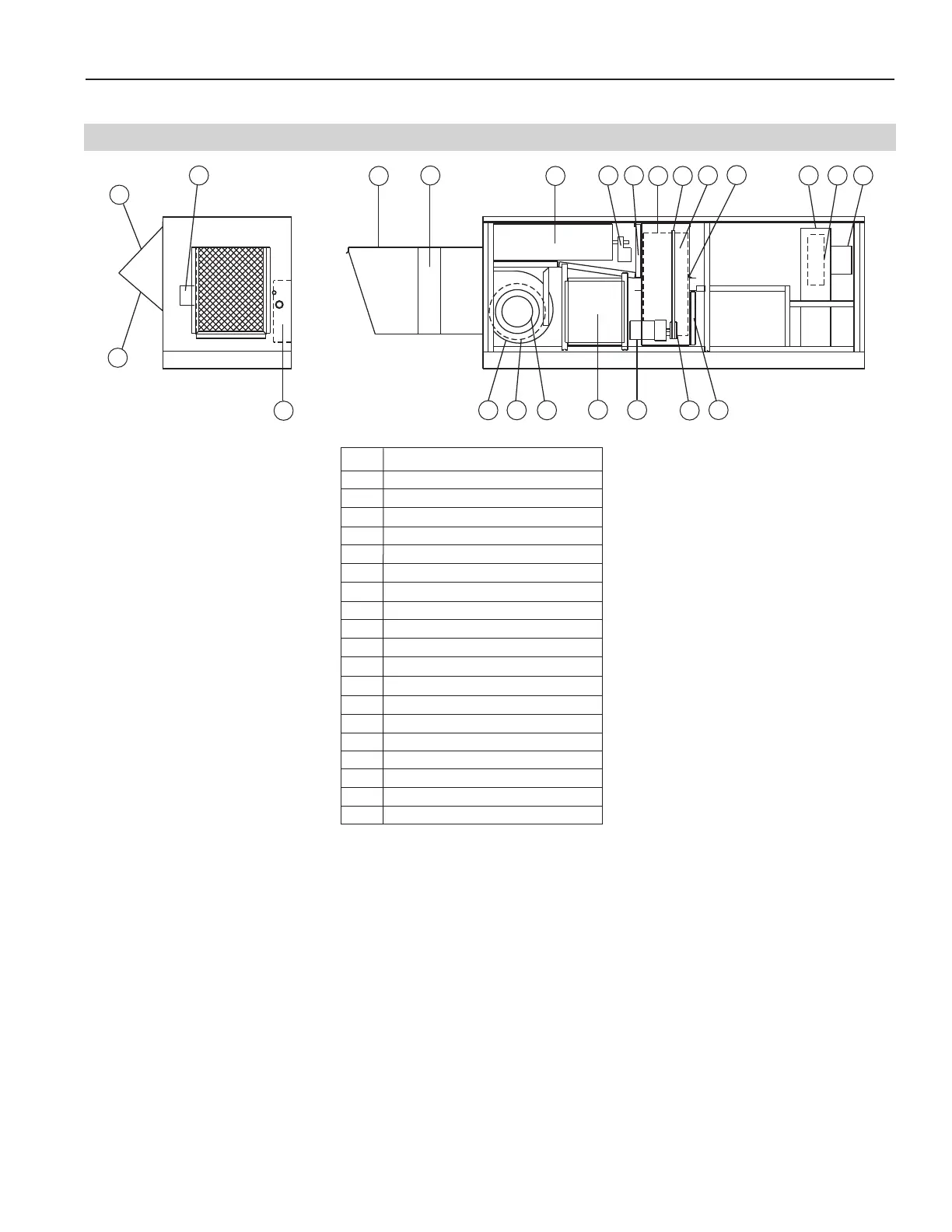

Item Description
1. Housing
2. Fan
3. Fan motor
4. Enthalpy wheel
5. Wheel drive motor
6. Wheel drive pulley
7. Wheel drive belt
8. Wheel perimeter seal
9. Wheel wiper seal
10. Damper actuator
11. Damper intake
12. Exhaust damper actuator
13. Exhaust damper
14. MEF supply filter set - 2/set
15. MEF exhaust filter set - 2/set
16. Oudoor air intake hood
17. Exhaust air hood
18. Aluminum mesh pre-filter
19. Control box
NOTE: Some unit components listed above
are optional. Consult the unit nomenclature
for standard and optional components.
ERV500e
Appendix E Continued
Components
