COMMISSIONING
5. COMMISSIONING
If you need over- or under-pressure ventilation,
you can set a constant difference of speeds be-
tween the supply and the exhaust fan. These set-
tings and schemes relate to the air ow at high
fan speeds.

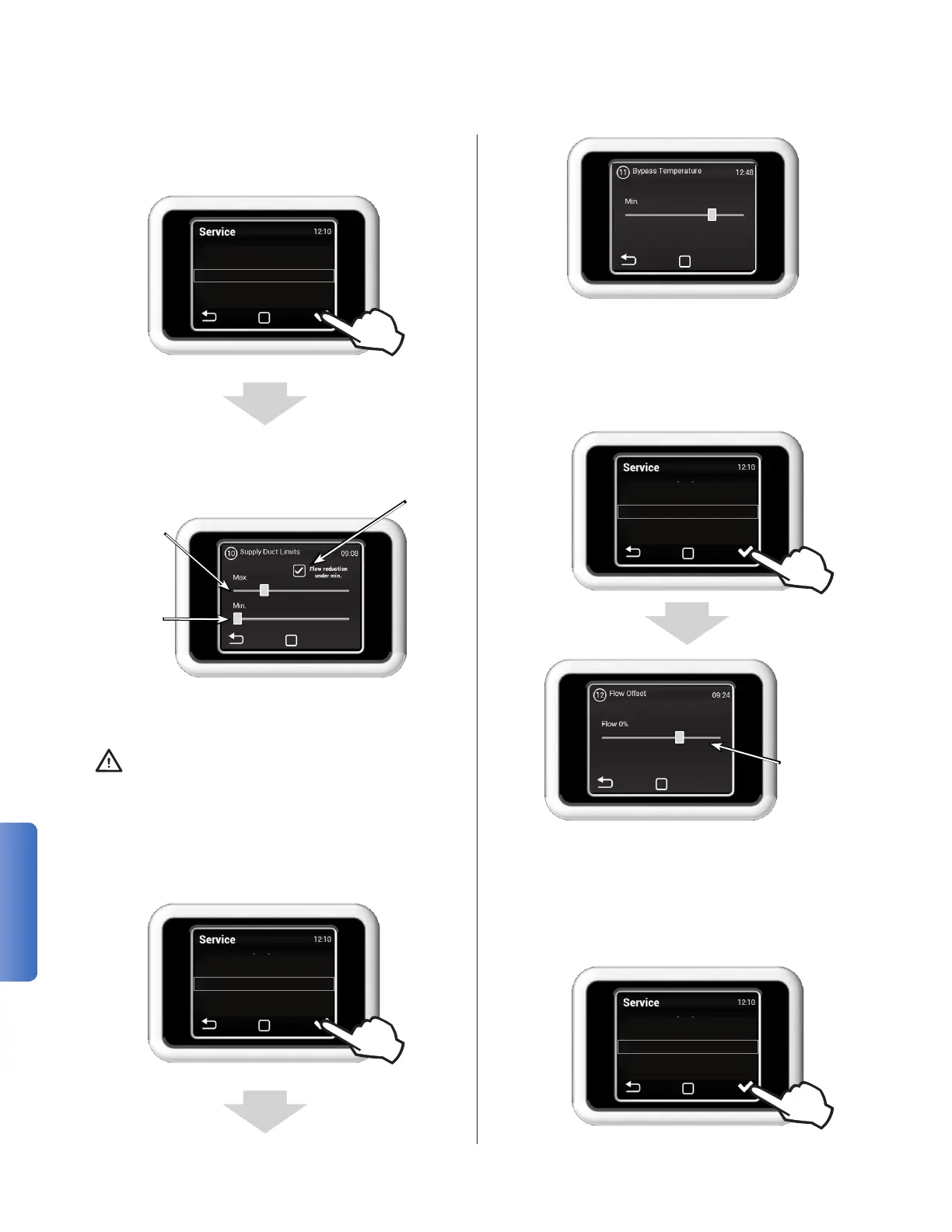

MENU 10 - SUPPLY DUCT LIMITS
Enable or disable reduction
of air ow if the minimum
duct temperature cannot be
achieved (enabled by default)
It is recommend to leave ow reduction enabled.
08 - AQS Sensor
09 - Temp Sensor
10 - Supply Duct Limit
11 - Bypass Temp
12 - Flow Offset
Meze foukání
If the sensor in the supply ventilation shaft
is set, the maximum temperature in the duct
can not be congured
MENU 11 BYPASS TEMPERATURE
Minimum external air temperature at which the
BY-PASS opening is authorised.
Range 32-68°F.
Posun toků
Odtok 0 %
40°F
09 - Temp Sensor
10 - Supply Duct Limit
11 - Bypass Temp
12 - Flow Offset
13 - Fire Flow
MENU 12 - FLOW OFFSET
Odtok 0 %
Set the
fans oset
(overpressure,
underpressure)
10 - Supply Duct Limit
11 - Bypass Temp
12 - Flow Offset
13 - Fire Flow
14 - Occupancy
11 - Bypass Temp
12 - Flow Offset
13 - Fire Flow
14 - Occupancy
15 - Boost
MENU 13 - FIRE FLOW
Set maximum
supply air
temperature
80°F
50°F
Set minimum
supply air
temperature
