DEVICE SETUP
Using the e355 Frame
E355 INSTALLATION GUIDE 21
Using the e355
Frame
The e355 Frame Type A allows you to use the payment application installed on
your Apple device together with your e355 terminal.
Frame Type A for
iPad mini and iPad 2
Follow these procedures to install an e355 terminal and an iPad mini/iPad 2
device into the frame.
To install the e355
Terminal
1 Loosen the retaining screw to unlock the Release button. The retaining screw
is captive, which means that it cannot be fully removed from the slot.

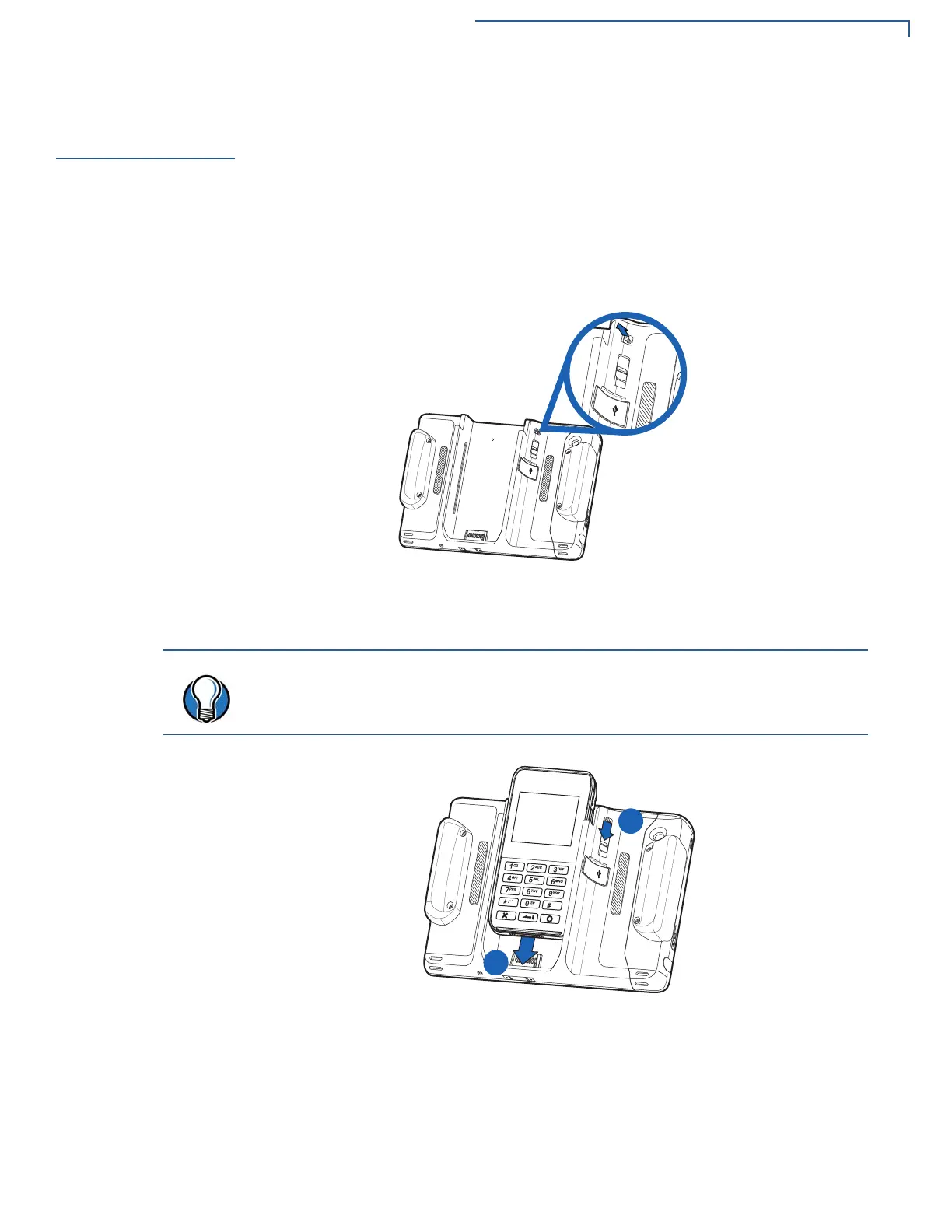

Figure 13 Loosening Screw to Unlock Release Button
2 Insert the e355 device until it locks in place.
Figure 14 Inserting e355 Terminal
3 Tighten the retaining screw at the front to lock the Release button and prevent
the terminal from ejecting.
Pull and hold the Release button downwards for easy insertion.
To Next Page
