DEVICE SETUP
Examining e355 Device Features
E355 INSTALLATION GUIDE 15
Back View
The back panel includes the following features:

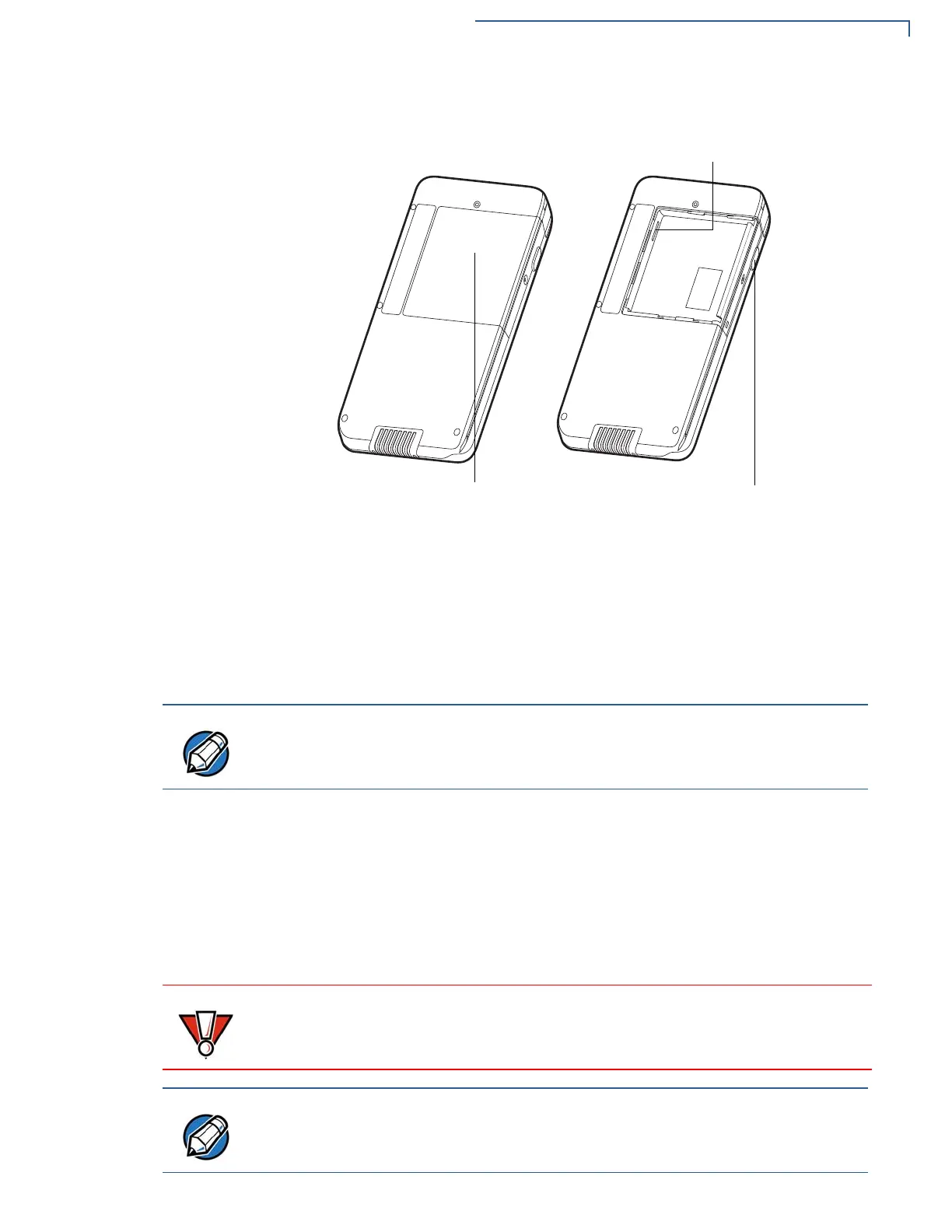

Figure 3 e355 Device Features (Back View)
• A Battery Compartment Cover. Remove the cover to access the removable
battery and the MSAM compartment.
• An MSAM (Micromodule-Size Security Access Module) Compartment to
support stored-value card programs or other merchant card requirements.
(See
Installing/Replacing an MSAM Card)
• Barcode Buttons located on both sides of the e355 to activate the 2D imager
for scanning barcodes. (See
Using the Barcode Reader)
• A Docking Connector at the bottom of the device to connect to the e355
Frame and Smart Charger.
Installing/Replacing
an MSAM Card
When you first receive your e355, you may need to install an MSAM card or you
may need to replace an old card.
BATTERY COMPARTMENT COVER
MSAM COMPARTMENT
BARCODE BUTTON
DOCKING CONNECTOR
The MSAM compartment is located inside the battery compartment. Remove the
battery to display the access the compartment.
Observe standard precautions when handling electrostatically sensitive devices.
Electrostatic discharges can damage this equipment. Verifone recommends using
a grounded anti-static wrist strap.
Not all applications require the use of an MSAM card.
