VeriFone V200c User Manual

V200C REFERENCE GUIDE 57
APPENDIX B
Port Pinouts
V200c Port
Pinout
Definitions

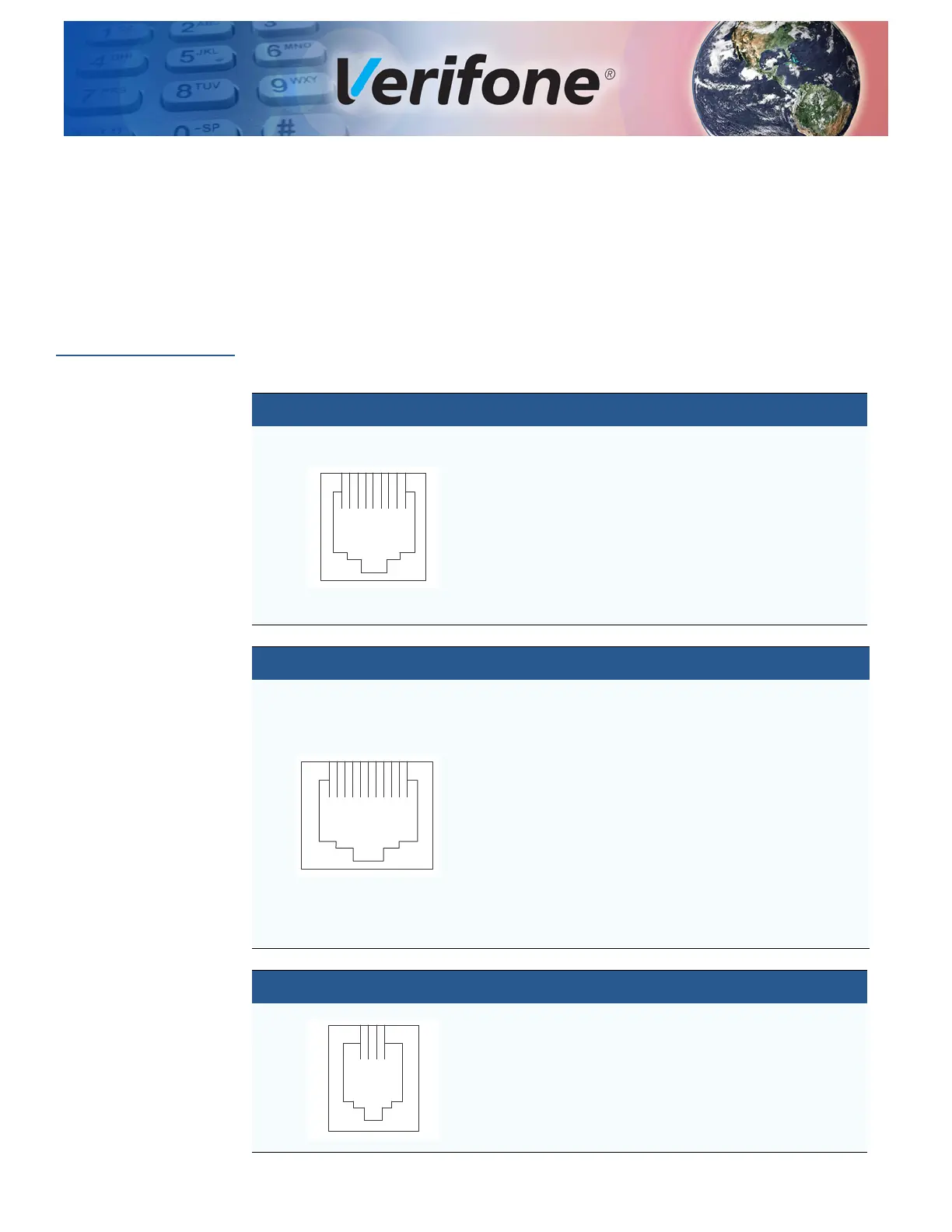

This section contains port pinout tables for the V200c.
Ethernet Port (LAN)
MOD 10 Port (COM1)
Telco Port
Connector PIN Function Description
1 TXD+ Transmit data +
2 TXD- Transmit data -
3 RXD+ Receive data +
4 NC No connection
5 NC No connection
6 RXD- Receive data -
7 NC No connection
8 NC No connection
18
Connector PIN Function Description
1 VUSB 5 V USB power (500 mA)
2 PORTPWR Port power (11.6 V typ.,
500 mA)
3 NC No connection
4 NC No connection
5 GND Power ground
6 RXD Receive data
7 TXD Transmit data
8 NC No connection
9 USB0_DP USB signal +
10 USB0_DM USB signal -
110
Connector PIN Function Description
1 NC No connection
2 NC No connection
3 Tip Telephone Line
4 Ring Telephone Line
5 NC No connection
6 NC No connection
16
