PORT PINOUTS

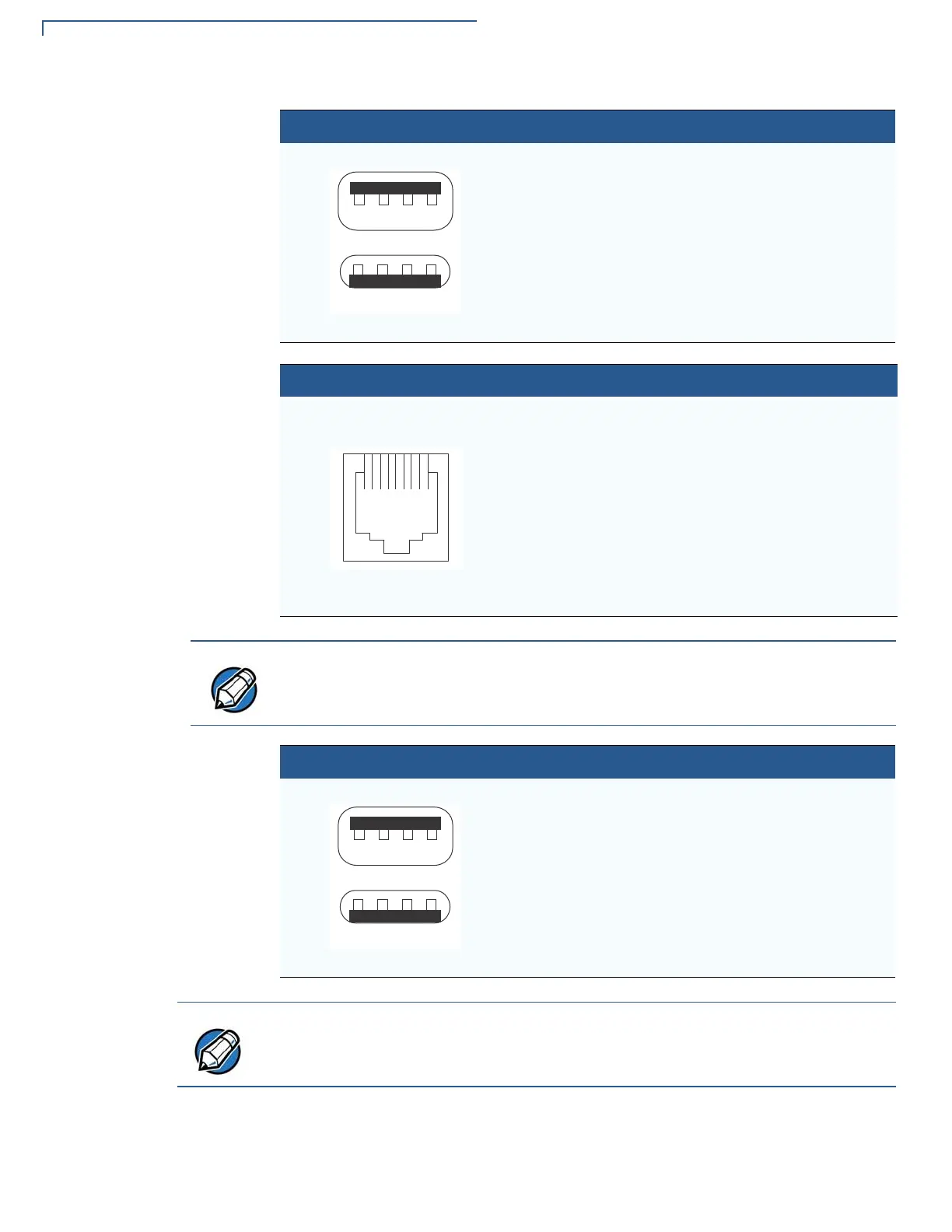

V200c Port Pinout Definitions
58 V200C REFERENCE GUIDE
USB Pinout (Host
Port)
RS-232 Port (COM1)
USB Pinout
Connector PIN Function Description
1 +5 V 5 V USB Power (600 mA)
2 DATA- USB Host Signal -
3 DATA+ USB Host Signal +
4 GND USB ID pin/Ground
Receptacle
Plug
14
1
4
Connector PIN Function Description
1 Portpwr (9 to12
V DC)
Port power (11.6 V typ.,
500 mA)
2 NC No connection
3 NC No connection
4 GND Power ground
5 RXD Receive data
6 TXD Transmit data
7 NC No connection
8 NC No connection
18
NOTE
This RS-232 port is part of the MOD10 cables (VPN CBL420-002-01-A and
CBL420-002-02-A).
Connector PIN Function Description
1 +5 V 5 V USB Power (500 mA)
2 DATA- USB Host Signal -
3 DATA+ USB Host Signal +
4 GND USB ID pin/Ground
Receptacle
Plug
14
1
4
NOTE
This USB Type-A port is part of the MOD10 cable (VPN CBL420-002-01-A).

VeriFone V200c Specifications

General

Memory	64MB SDRAM
Touchscreen	Capacitive
Connectivity	Ethernet, RS-232, USB
Operating System	Verix
Card Readers	Triple track MSR, EMV smart card reader, Contactless NFC
Power Supply	AC input 100-240V, DC output 5V
Operating Temperature	0°C to 40°C
Certifications	EMV Level 1 and 2, PCI
