SETUP

Connecting Optional Devices

24 V200C AND V400C INSTALLATION GUIDE

Connecting to ECRs

V200c and V400c terminals support electronic cash registers (ECRs).

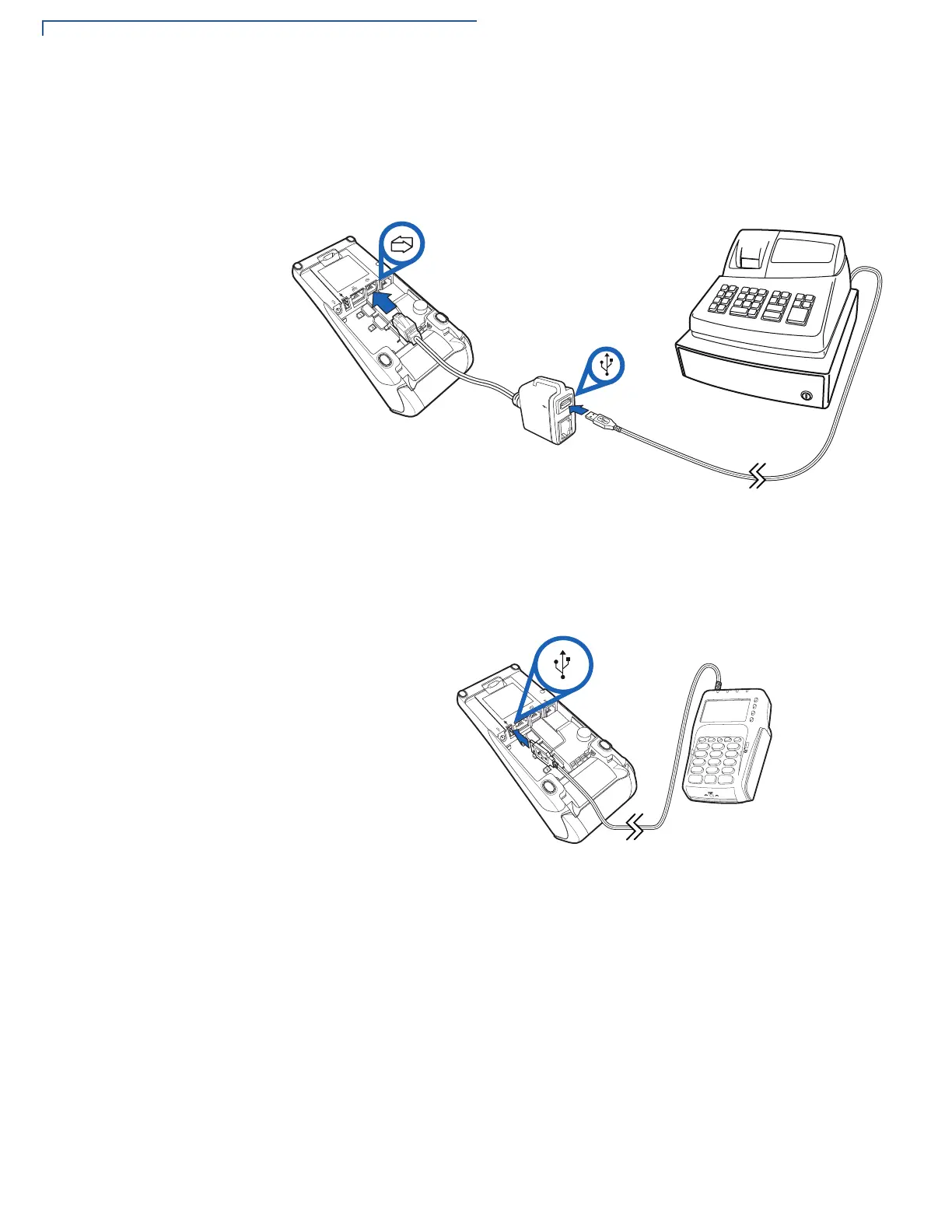

Figure 12 shows how to make a peripheral connection to the Multi-

Communication port using the MOD 10 RS-232 + USB Multi-Communication

dongle (VPN CBL420-002-01-A)

Figure 12 Sample ECR Connection

Connecting to

PINpads

V200c and V400c terminals also support PIN pad devices.

Figure 13 shows how to connect a PIN pad device to the host USB port on your

V200c and V400c device

Figure 13 Sample PIN pad Connection on Host USB Port

RS232
