V200C AND V400C INSTALLATION GUIDE 45

CHAPTER 7

Port Pinouts

Port Pinout

Definitions

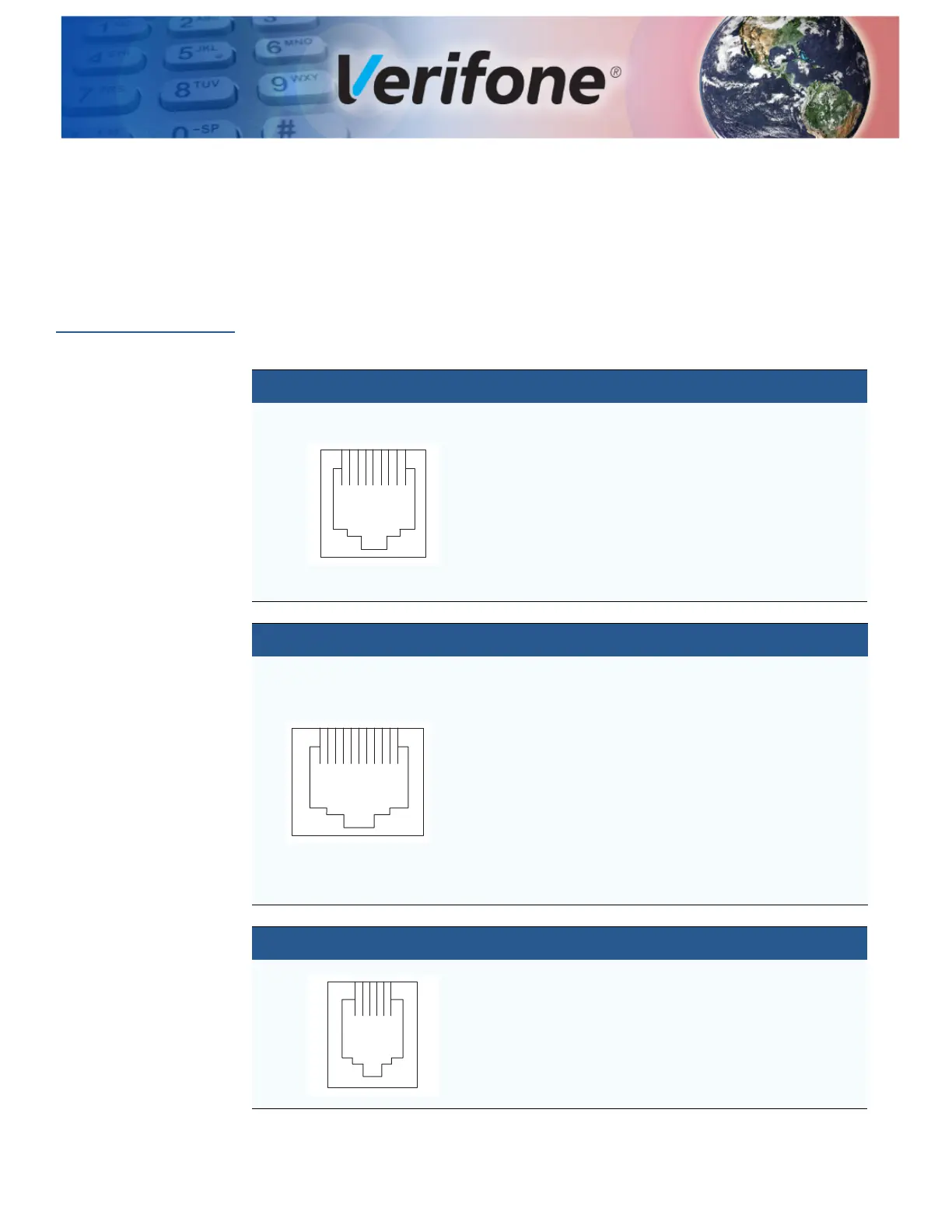

This section contains port pinout tables for V200c and V400c terminals.

Ethernet Port (LAN)

Multi-

Communication

Port (COM1)

Telco Port

Connector PIN Function Description

1 TXD+ Transmit data +

2 TXD- Transmit data -

3 RXD+ Receive data +

4 NC No connection

5 NC No connection

6 RXD- Receive data -

7 NC No connection

8 NC No connection

Connector PIN Function Description

1 VUSB 5 V USB power (500 mA)

2 PORTPWR Port power (11.6 V typ., 500 mA)

3 NC No connection

4 NC No connection

5 GND Power ground

6 RXD Receive data

7 TXD Transmit data

8 NC No connection

9 USB0_DP USB signal +

10 USB0_DM USB signal -

110

Connector PIN Function Description

1 NC No connection

2 NC No connection

3 Tip Telephone Line

4 Ring Telephone Line

5 NC No connection

6 NC No connection
