VeriFone Vx810 - Connection with External Power Brick; Standard USB Connection

SETUP
Cable Connections
V
X
810 REFERENCE GUIDE 27
RS-232 Connection
with External Power
Brick
A special dongle cable is used, where one end of the cable plugs into the V
x
810
while the other end terminates to a female DB-9 connector housing (which is used
to connect to an RS-232 serial port). On the housing, a DC jack is provided to
connect to an external power brick. This is the generic cable for all RS-232-based
hosts.

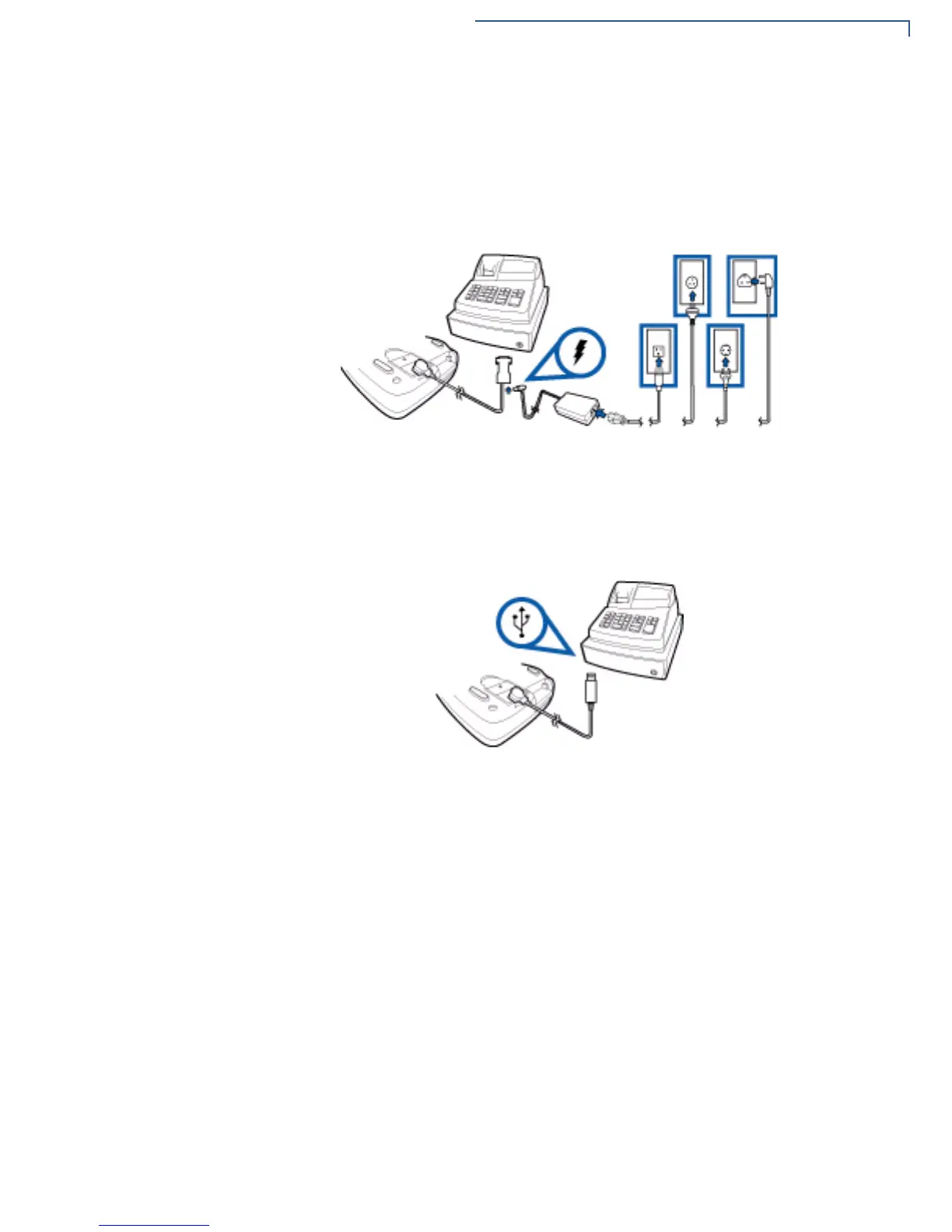

Figure 9 RS-232 Connection with External Power Brick
Standard USB
Connection
For standard USB environments, this cable option has the host end terminating in
a Type-A USB plug. Power (5V 500mA) for the Vx810 is provided via this
connector.
Figure 10 Standard USB Connection
