SETUP
Cable Connections
28 V
X
810 REFERENCE GUIDE
USB Download
Support with
External Power
Brick
This cable option comes with a junction box that provides a mini-style Type B USB
socket for connecting to the USB-based host and a DC jack for external power
connection.
In addition, a Type A USB socket is provided on the junction box to support
application download via a USB flash drive.

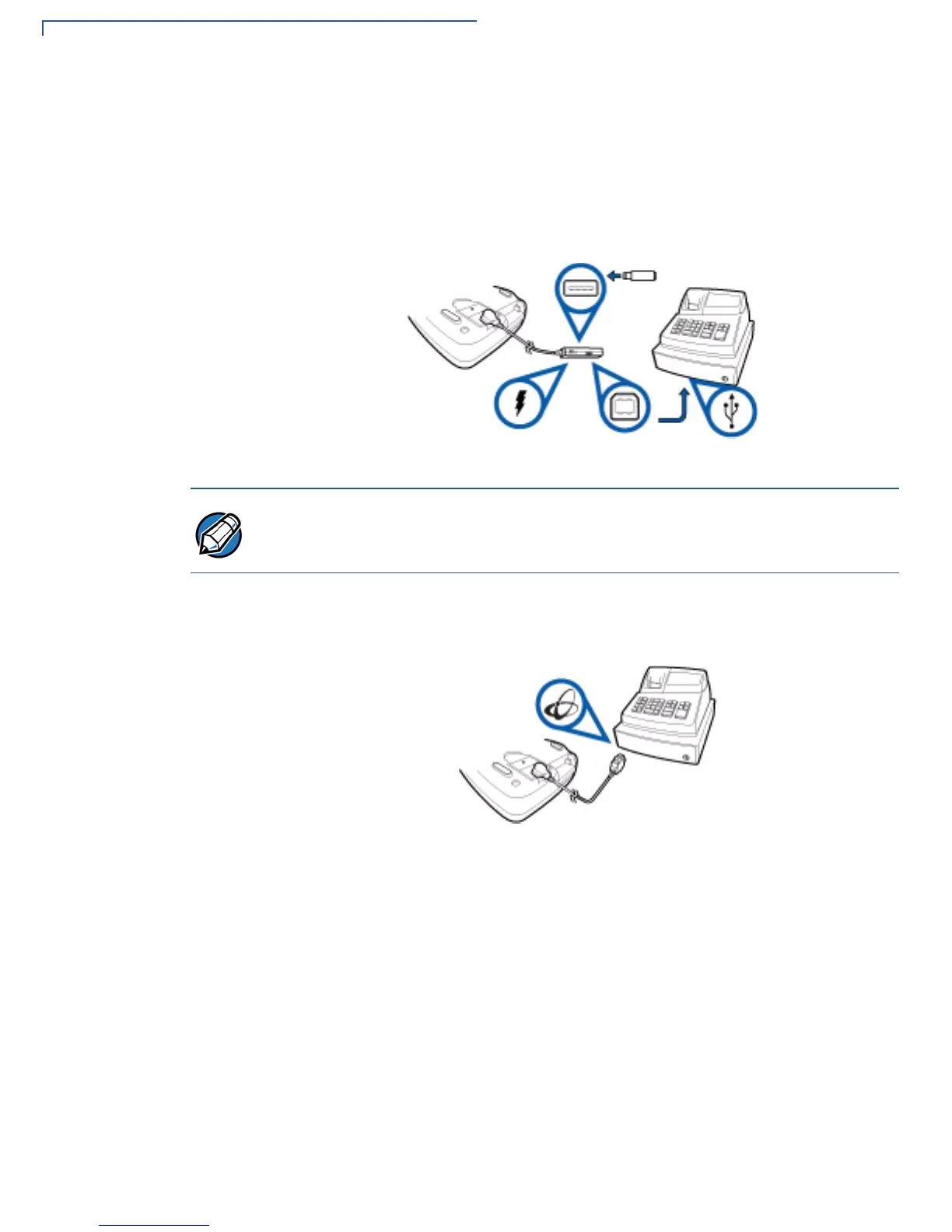

Figure 11 USB with Download Support
Powered USB
For a USB-based host with PoweredUSB feature, a straight cable is all that is
required. The V
x
810 supports the 12V DC option.
Figure 12 PoweredUSB
NOTE
The V
x
810 only supports download functions from a USB flash drive. There is no
API for applications or libraries to access the USB flash drive as an extension of
internal RAM or flash.
