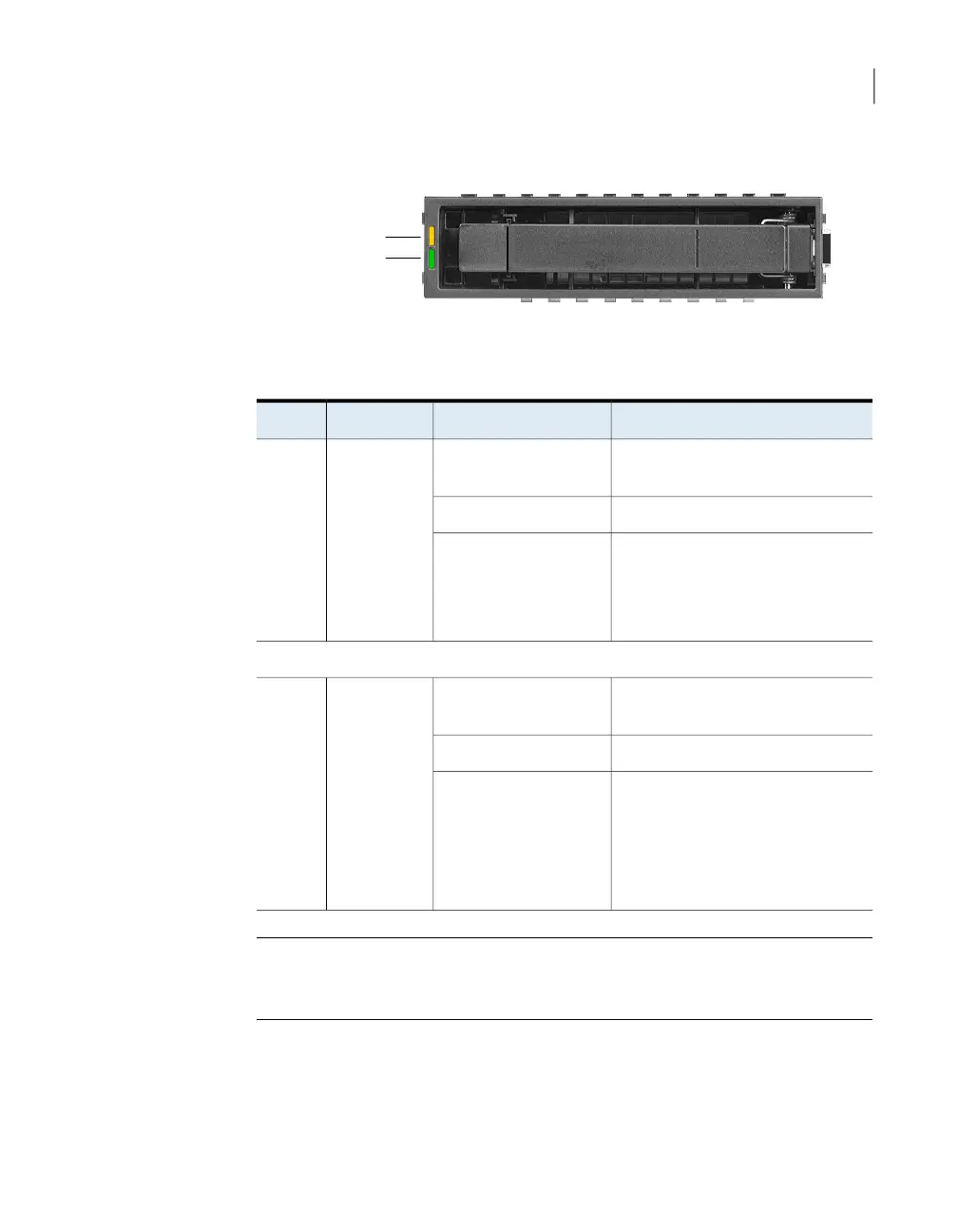

Figure 1-2
5340 Appliance compute node disk drive module LEDs
Amber Status LED
Green Activity LED
The LED Status descriptions are described in the following table.
Table 1-3
5340 Appliance compute node disk drive LED Status descriptions
ConditionLED behaviorDescriptionNumber
No disk drive access and no disk drive
faults
OffAmber Status
LED
1
A disk drive fault has occurredSolid amber
A RAID rebuild is in progress (1Hz
blink)
Locating / identifying the disk drive
(4Hz blink)
Blinking amber
Power on - the disk drive has spun
down
OffGreen Activity
LED
2
Power on - no disk drive activitySolid green
Power on - the disk drive is processing
a command
or
Power on - the disk drive is spinning
up
Blinking green
Note: Disk drive modules that do not contain disk drives also have LEDs. Although
there may not be disk drive activity, some colored lights may still be seen through
the disk modules.
14About the Veritas 5340 Appliance
