VERITAS NetBackup 5340 - About the Appliance Compute Node Rear Panel

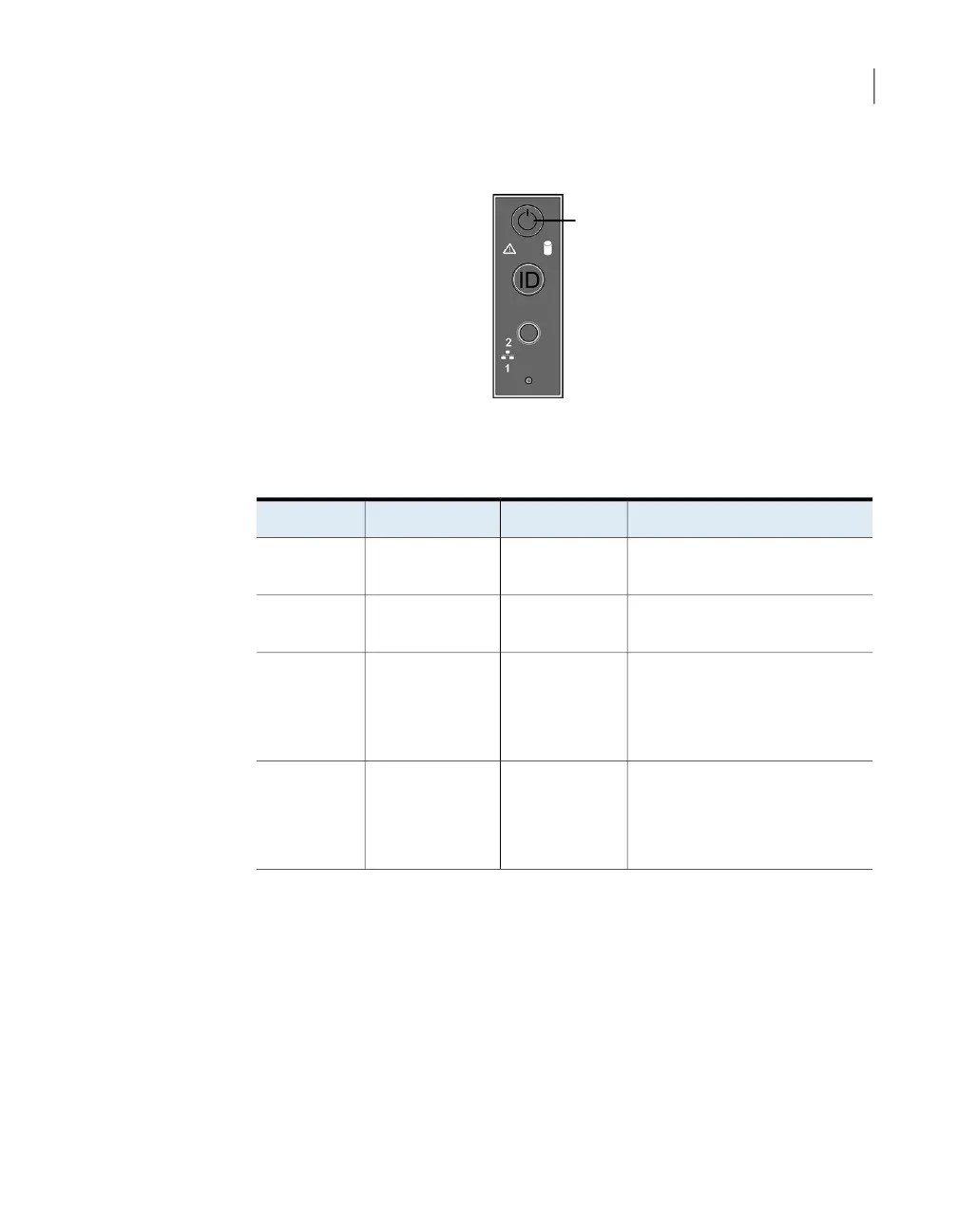

Figure 1-5
Power button control panel location
Power/Sleep
button
The following table provides a description of each power state.
Table 1-6
Power button LED states
DescriptionLEDPower ModeState
The system power is off, and the
BIOS has not initialized the chipset.
OffNon-ACPIPower - off
The system power is on and the
green Power button LED is active.
OnNon-ACPIPower - on
The system and the operating
system are up and running.
Steady onACPI
(Advanced
Configuration and
Power Interface)
S0
Mechanical is off and the operating
system has not saved any context
to the hard disk drive.
OffACPI
(Advanced
Configuration and
Power Interface)
S5
About the appliance compute node rear panel
The rear panel of the appliance compute node has several access ports and other
features, which are displayed in the following figures.
