VERITAS NetBackup 5340 User Manual

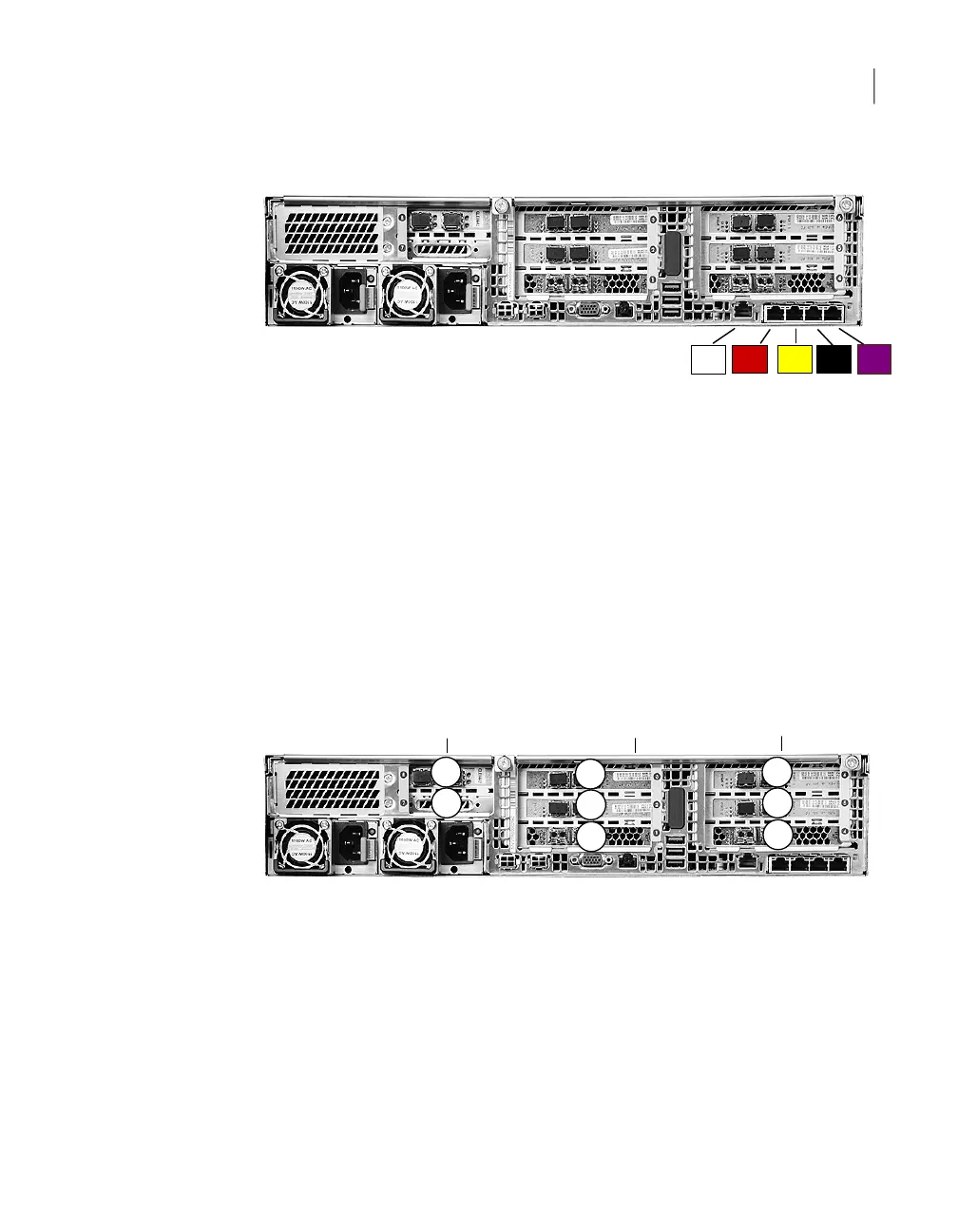

Figure 1-8
5340 Appliance rear port color codes
ETH0/
NIC1
ETH2/
NIC3
ETH1/
NIC2
ETH3
/NIC4
IPMI
ETH2/
NIC3
See “Available 5340 Appliance PCIe-based I/O configurations” on page 25.
Available 5340 Appliance PCIe-based I/O configurations
The rear panel of the Veritas 5340 Appliance contains three PCIe riser card
assemblies. PCIe riser card assemblies 1 and 2 each support three standard PCIe
cards, while PCIe riser card assembly 3 supports two low profile PCIe cards. The
slots are labeled 1 to 8. Slots 1, 2, and 3 are located in PCIe riser card assembly
2. Slots 4, 5, and 6 are located in PCIe riser card assembly 1, while slots 7 and 8
are located in PCIe riser card assembly 3.
Figure 1-9
5340 Appliance rear panel riser assembly locations and PCIe
slot number assignments
8
7
3
2
1
6
5
4
Riser
Assembly 3
Riser
Assembly 2
Riser
Assembly 1
The 5340 Appliance supports multiple PCIe-based I/O configurations. The following
table shows the standard I/O configurations that are available with a 5340 Appliance.
25About the Veritas 5340 Appliance
About the appliance compute node rear panel
