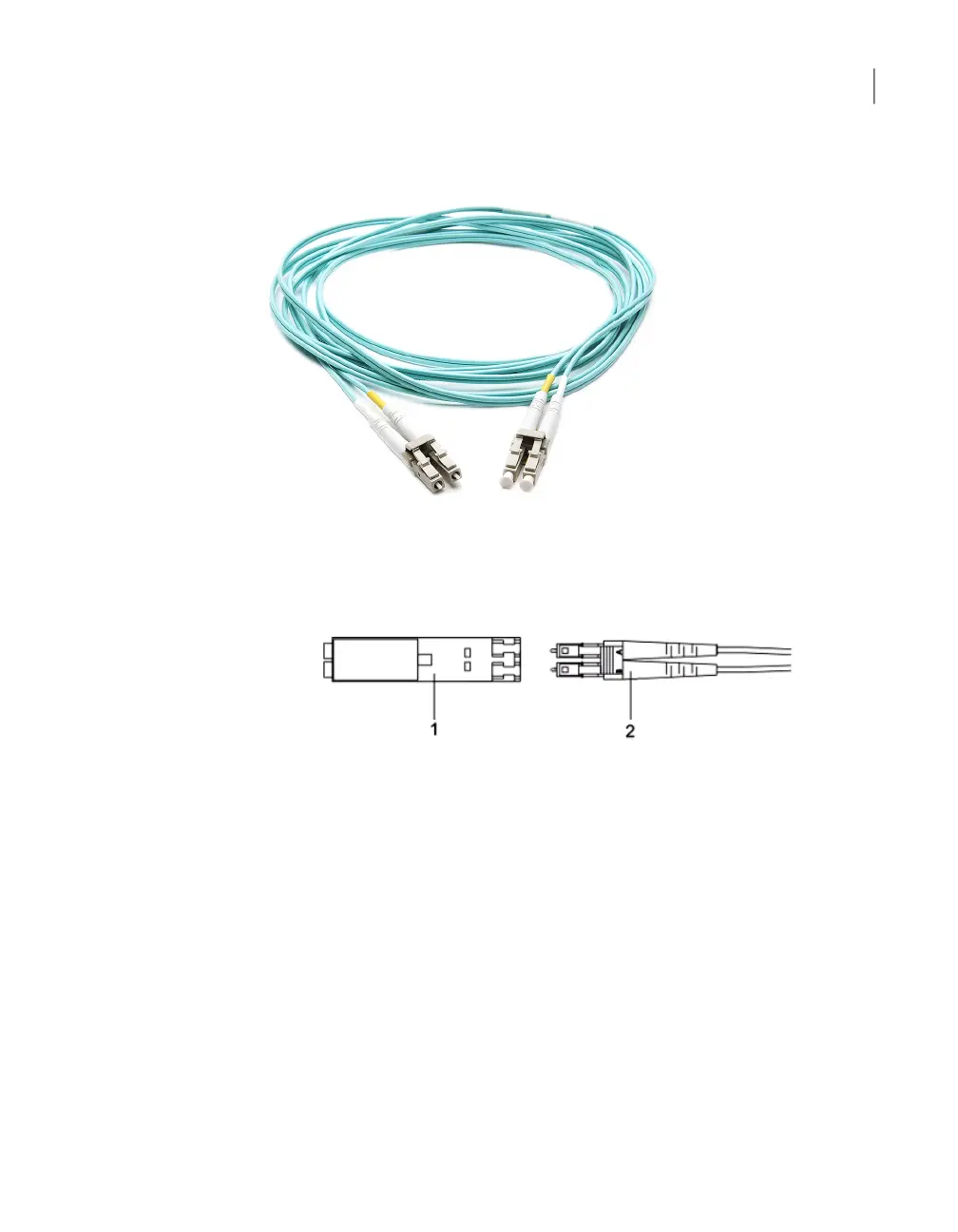

Figure 3-4
Multi-Mode fiber cable
Fiber optic cables require Small Form-factor Pluggable (SFP+) transceivers, which
are provided with each device having Fibre Channel ports. The diagram shows the
SFP, labeled 1, and the fiber optic cable which is attached to it, labeled 2.
Supported SFPs are listed:
■ Finisar
■ JDSU
See “Power cables” on page 68.
See “Network cable” on page 70.
See “SAS3 cable” on page 72.
See “Twinaxial copper cables” on page 73.
SAS3 cable
SAS3 data cables are used to connect the 5U84 Primary Storage Shelf to an optional
Veritas 5U84 Expansion Storage Shelf. SAS3 cables also connect multiple 5U84
