to the network switch or an external gateway. Both ends of the cable are RJ45
connectors.

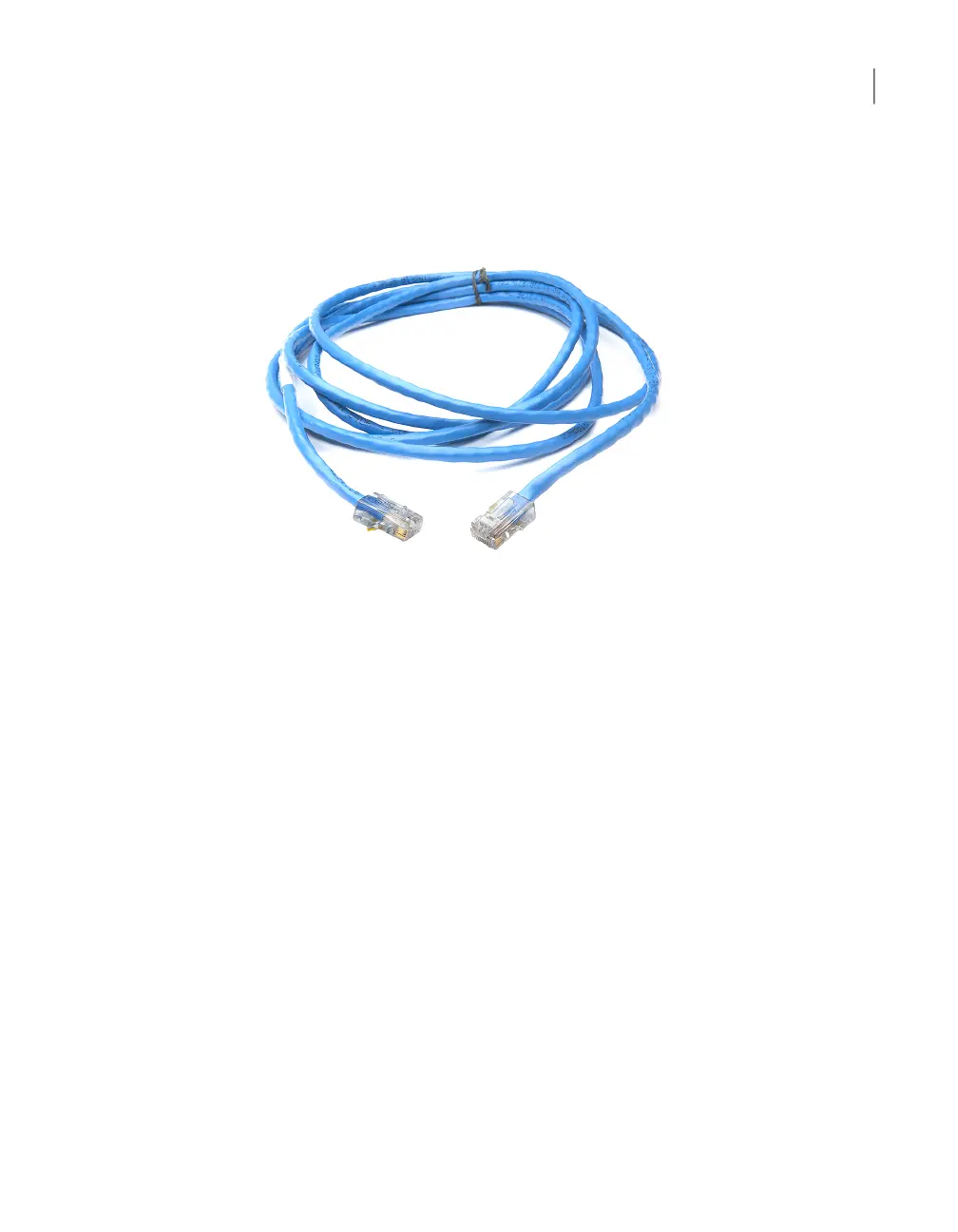

Figure 3-3
Network cable
See “Power cables” on page 68.
See “SAS3 cable” on page 72.
See “Twinaxial copper cables” on page 73.
Multi-mode fiber optic cable
A Veritas 5340 Appliance compute node communicates with the required 5U84
Primary Storage Shelf through multi-mode fiber optic cables. One end of each fiber
optic cable connects to PCIe-based 16Gb Fibre Channel host bus adapters that
are installed in the compute node. The other end of the fiber optic cable connects
to the 5U84 Primary Storage Shelf's Fibre Channel RAID controller. Both ends of
the fiber optic cable use LC connectors.
71Veritas 5340 Appliance and 5U84 Storage Shelf cables
Multi-mode fiber optic cable
