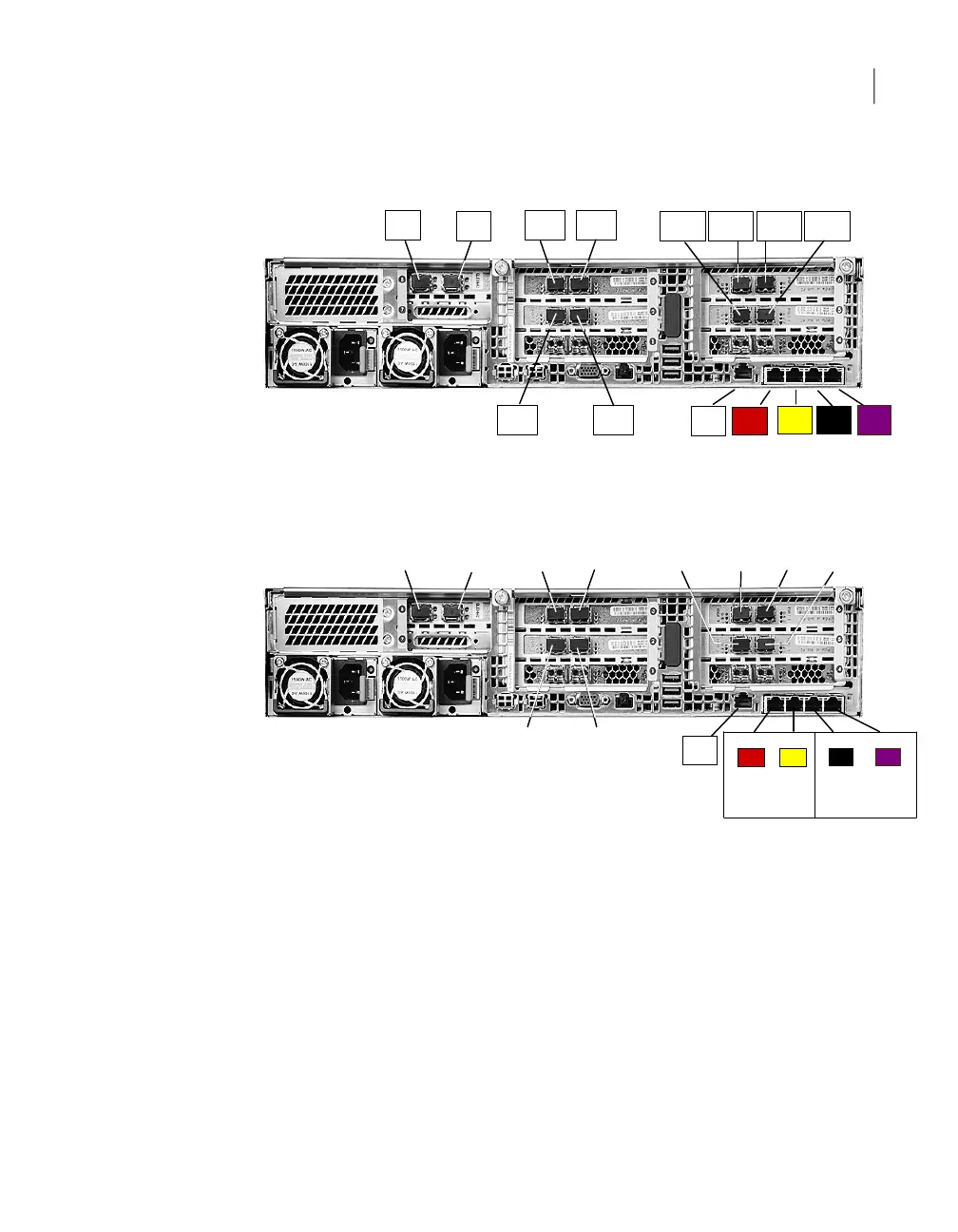

Figure 1-10
NetBackup 5340 Appliance compute node Ethernet port
assignments
ETH0/
NIC1
ETH2/
NIC3
ETH1/
NIC2
ETH3
/NIC4
IPMI
ETH2/
NIC3
ETH4
ETH5
ETH6ETH7
ETH8ETH9
ETH11 ETH13 ETH12 ETH10
Figure 1-11
Flex 5340 Appliance compute node NIC port assignments
host0
IPMI
NIC0
NIC1 NIC2
NIC3
NIC4
NIC5
NIC8NIC9
NIC6NIC7
privnic1
privnic0
host1
Public Management
Network
(1Gb)
Private Low Latency
Transport
(1Gb Heartbeat)
Eth0/
NIC1
Eth1/
NIC2
Eth2/
NIC3
Eth3/
NIC4
10Gb public network ports (NIC 0 - 9)
36About the Veritas 5340 Appliance
