VERITAS NetBackup 5340 User Manual

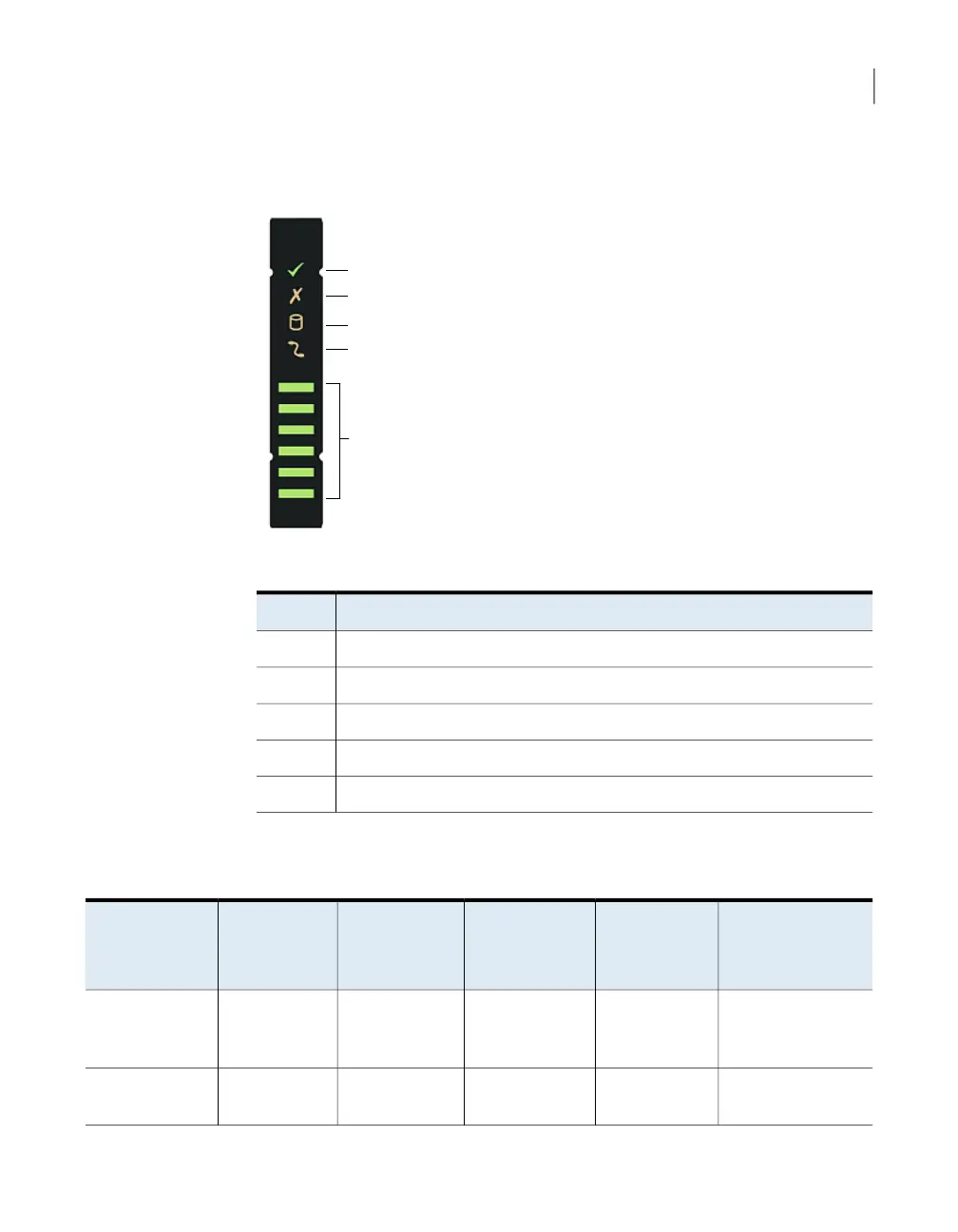

Figure 2-11
5U84 Primary Storage Shelf / 5U84 Expansion Storage Shelf
Drawer Sideplane Status panel
1
2
3
4
5
Table 2-5
Drawer Sideplane Status panel descriptions
ItemNumber
Sideplane card OK / Power good1
Sideplane card Fault2
Logical Fault3
Cable Fault4
Activity Bar Graph5
The following table describes the Drawer Sideplane LED statuses.
Table 2-6
Drawer Sideplane LED statuses
Activity Bar
Graph
(Green)
Logical Fault
(Amber)
Cable Fault
(Amber)
Drawer Fault
(Amber)
Power
(Green)
Status
XOffOffOffOnDrawer Sideplane
card OK / Power
Good
OffXXOnOffDrawer Sideplane
card Fault
51About the Veritas 5U84 Storage Shelves
About Veritas 5340 Appliance storage shelves
